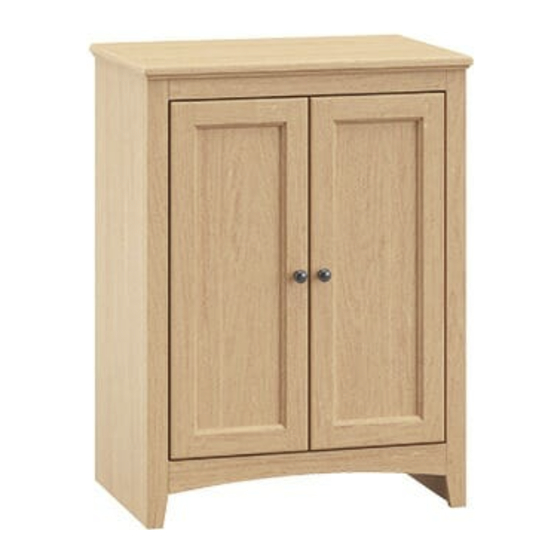

McKenzie Alder
Cabinet
Ready to Finish
Model #
1613AUF
McKenzie Alder
Cabinet 24"W
1625AUF
McKenzie Alder
Cabinet 36"W
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
1619AUF
McKenzie Alder
Cabinet 30"W
1631AUF
McKenzie Alder
Cabinet 48"W
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Do not climb, sit or stand on this piece of furniture.
• Do not overload the shelves.
• Unload items before you move this unit.
• Before you begin your project, completely read the Assembly
Instructions and Finishing Hints.
• This assembly requires two people.
Serious or fatal crushing injuries can occur from furniture tip-over. Use
of tip-over restraints may only reduce but not eliminate the risk of tip-
over.
To help prevent tip-over:
•
Place heaviest items in the bottom drawers.
•
Unless specifically designed to accommodate, do not set TVs or
other heavy objects on top of this product.
•
Never allow children to climb or hang on drawers, doors or shelves.
•
Never open more than one drawer at a time.
Warning: At least one tipping restraint kit was included with your
piece of Whittier Wood Furniture. When you receive your furniture, be
sure to find and properly install the tipping restraint(s). If you cannot
locate the restraint(s), please contact us immediately for replacement.
Drilling, sawing, sanding or machining wood products can expose you
to wood dust, a substance known to the state of California to cause
cancer. Avoid inhaling wood dust or use a dust mask or other
safeguards for personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
WARNING
06/18
Advertisement
Table of Contents
Related Manuals for Whittier Wood Furniture McKenzie Alder 1613AUF
Summary of Contents for Whittier Wood Furniture McKenzie Alder 1613AUF
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 1613AUF; 1619AUF; 1625AUF & 1631AUF McKenzie Alder Cabinet Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Quantity 1613AU 1619AU 1625AU...
- Page 3 1613AUF; 1619AUF; 1625AUF & 1631AUF McKenzie Alder Cabinet Assembly Instructions Tools Required: Phillips Screwdriver, Pencil, Rubber Mallet or Padded Hammer. Place the cabinet at its final destination. Rotate the Small Adjustable Glides (Q) on the bottoms of the legs until the unit is level. See Figure 1. Fig.
- Page 4 1613AUF; 1619AUF; 1625AUF & 1631AUF McKenzie Alder Cabinet Assembly Instructions To adjust the doors, follow the instructions below. Side adjustment To move the door towards the side panel, rotate screw ‘2’ counter-clockwise. To move the door away from the side panel, rotate screw ‘2’ clockwise. Depth Adjustment Loosen screw ‘1’...
- Page 5 Before you begin this assembly, identify each part and make sure the quantities received match what is on this list. If you need to replace a part, contact Whittier Wood Furniture customer service and refer to the following list for its name and letter code.
- Page 6 1613AUF; 1619AUF; 1625AUF & 1631AUF McKenzie Alder Cabinet Assembly Instructions Decide where you want to place the bookcase in your room. Mark the baseboard with a pencil mark directly behind the location where the tipping restraint is attached to your item. Move the item away from the wall far enough to allow you to access the spot where the baseboard meets the floor.
- Page 7 Whittier Finishing Hints instructions call for a slow drying glue. Carefully read the Checklist of materials □ □ □ label and instructions of the glue manufacturer. Your unit Rubber gloves Tack cloth #220 & #320 may not need glue. □ □...
- Page 8 Whittier Finishing Hints Preparing the surface apply additional coats. Lightly sand and wipe surface with a lint-free rag or tack cloth between coats. Sand each piece with #220 grit sandpaper. Sand with the grain of the wood on flat surfaces and opposite the Some finishes tend to slightly raise the grain.
