ULTIMATE IWS82-AW-W-T-EACH
Ultimate In-Wall Dual 8 in. Subwoofer, All Weather, White Textured, Single
Paint the Speaker Grille
Painting the speaker grille should be done prior to mounting.
1. Carefully remove the thin cloth on the underside of the grille, and set
it aside for reinstallation.
2. Lightly spray paint the front of the grille from a distance. Be careful
not to plug any of the holes.
3. Once the paint is dry, put the cloth back on the underside of the grille.
Install the Speaker Cable
Run the speaker cable (not included) from the audio source to the
speaker location, observing all appropriate local codes. Strip the ends of
the speaker cable approximately 0.25 in. to 0.50 in. (~6 mm to ~12 mm)
and twist the strands.
Connect the Speaker Cable
Connect the speaker cable (not included) to the spring terminals by
pressing the top of the terminals down and inserting the exposed
strands into the hole. Make sure that the positive wire is attached to the
red connection, and the negative wire is attached to the black
connection.
Mount/Remove the Speaker

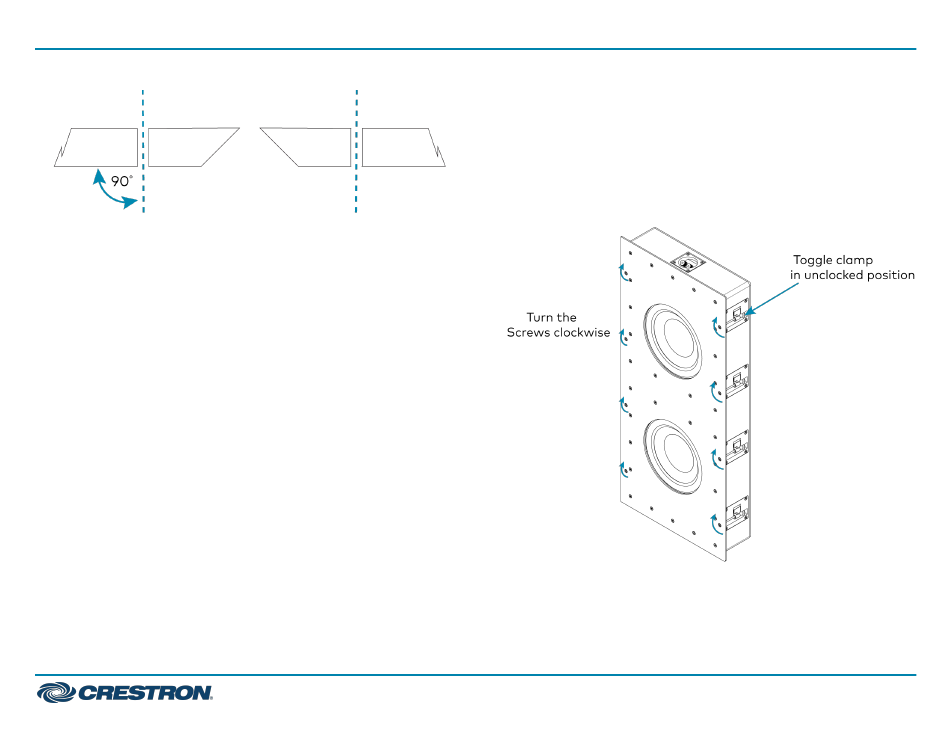

On the speaker, make sure all the Toggle clamps are in the unlocked
position.
1. Fit the speaker into the hole, and using a screwdriver (not included)
turn the screws clockwise.
2. Tighten the screws until the speaker is secured to the wall; do not
overtighten.
3. To remove the speaker, turn the screws counterclockwise until the
toggle clamps rotate inward. Remove the speaker carefully from the
hole.
