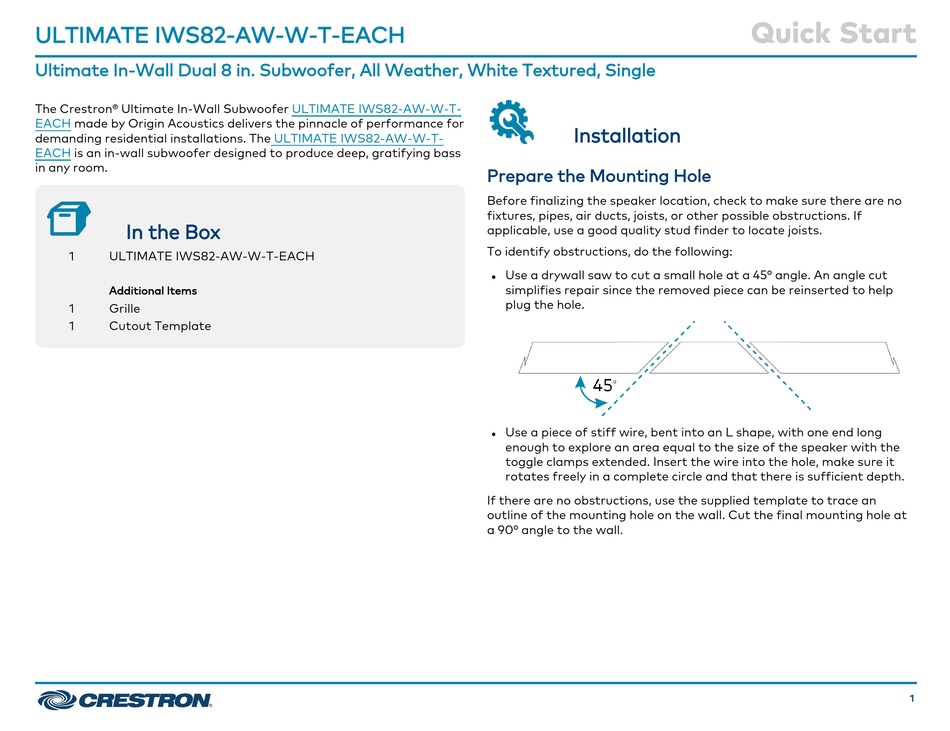

Crestron ULTIMATE IWS82-AW-W-T-EACH Quick Start

ULTIMATE IWS82-AW-W-T-EACH
Ultimate In-Wall Dual 8 in. Subwoofer, All Weather, White Textured, Single
The Crestron® Ultimate In-Wall Subwoofer
EACH made by Origin Acoustics delivers the pinnacle of performance for
demanding residential installations. The
EACH is an in-wall subwoofer designed to produce deep, gratifying bass
in any room.
In the Box
1 ULTIMATE IWS82-AW-W-T-EACH
Additional Items
1 Grille
1 Cutout Template
ULTIMATE IWS82-AW-W-T-
ULTIMATE IWS82-AW-W-T-
Installation
Prepare the Mounting Hole
Before finalizing the speaker location, check to make sure there are no
fixtures, pipes, air ducts, joists, or other possible obstructions. If
applicable, use a good quality stud finder to locate joists.
To identify obstructions, do the following:
Use a drywall saw to cut a small hole at a 45° angle. An angle cut
l
simplifies repair since the removed piece can be reinserted to help
plug the hole.
Use a piece of stiff wire, bent into an L shape, with one end long
l
enough to explore an area equal to the size of the speaker with the
toggle clamps extended. Insert the wire into the hole, make sure it
rotates freely in a complete circle and that there is sufficient depth.
If there are no obstructions, use the supplied template to trace an
outline of the mounting hole on the wall. Cut the final mounting hole at
a 90° angle to the wall.
Quick Start
1
