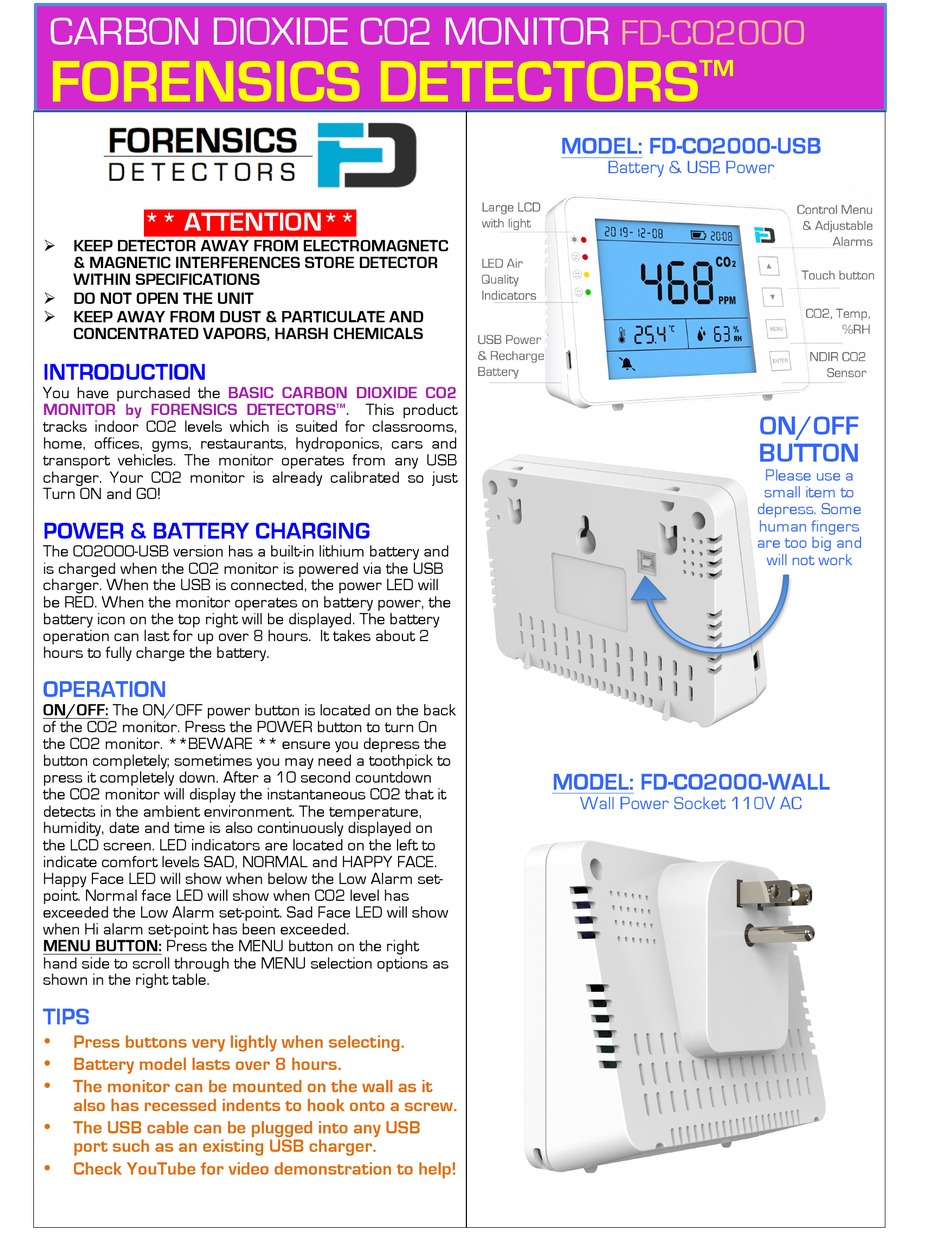

FORENSICS DETECTORS FD-CO2000 Quick Start Manual

CARBON DIOXIDE CO2 MONITOR
FORENSICS DETECTORS
** ATTENTION**
Ø KEEP DETECTOR AWAY FROM ELECTROMAGNETC
& MAGNETIC INTERFERENCES STORE DETECTOR
WITHIN SPECIFICATIONS
Ø DO NOT OPEN THE UNIT
Ø KEEP AWAY FROM DUST & PARTICULATE AND
CONCENTRATED VAPORS, HARSH CHEMICALS
INTRODUCTION
You have purchased the
MONITOR by FORENSICS DETECTORS
tracks indoor CO2 levels which is suited for classrooms,
home, offices, gyms, restaurants, hydroponics, cars and
transport vehicles. The monitor operates from any USB
charger. Your CO2 monitor is already calibrated so just
Turn ON and GO!
POWER & BATTERY CHARGING
The CO2000-USB version has a built-in lithium battery and
is charged when the CO2 monitor is powered via the USB
charger. When the USB is connected, the power LED will
be RED. When the monitor operates on battery power, the
battery icon on the top right will be displayed. The battery
operation can last for up over 8 hours. It takes about 2
hours to fully charge the battery.
OPERATION
ON/OFF: The ON/OFF power button is located on the back
of the CO2 monitor. Press the POWER button to turn On
the CO2 monitor. **BEWARE ** ensure you depress the
button completely; sometimes you may need a toothpick to
press it completely down. After a 10 second countdown
the CO2 monitor will display the instantaneous CO2 that it
detects in the ambient environment. The temperature,
humidity, date and time is also continuously displayed on
the LCD screen. LED indicators are located on the left to
indicate comfort levels SAD, NORMAL and HAPPY FACE.
Happy Face LED will show when below the Low Alarm set-
point. Normal face LED will show when CO2 level has
exceeded the Low Alarm set-point. Sad Face LED will show
when Hi alarm set-point has been exceeded.
MENU BUTTON: Press the MENU button on the right
hand side to scroll through the MENU selection options as
shown in the right table.
TIPS
Press buttons very lightly when selecting.
•
Battery model lasts over 8 hours.
•
The monitor can be mounted on the wall as it
•
also has recessed indents to hook onto a screw.
The USB cable can be plugged into any USB
•
port such as an existing USB charger.
Check YouTube for video demonstration to help!
•
BASIC CARBON DIOXIDE CO2
. This product
TM
FD-CO2000
TM
MODEL: FD-CO2000-USB
Battery & USB Power
MODEL: FD-CO2000-WALL
Wall Power Socket 110V AC
ON/OFF
BUTTON
Please use a
small item to
depress. Some
human fingers
are too big and
will not work
