my-Ditto User Manual

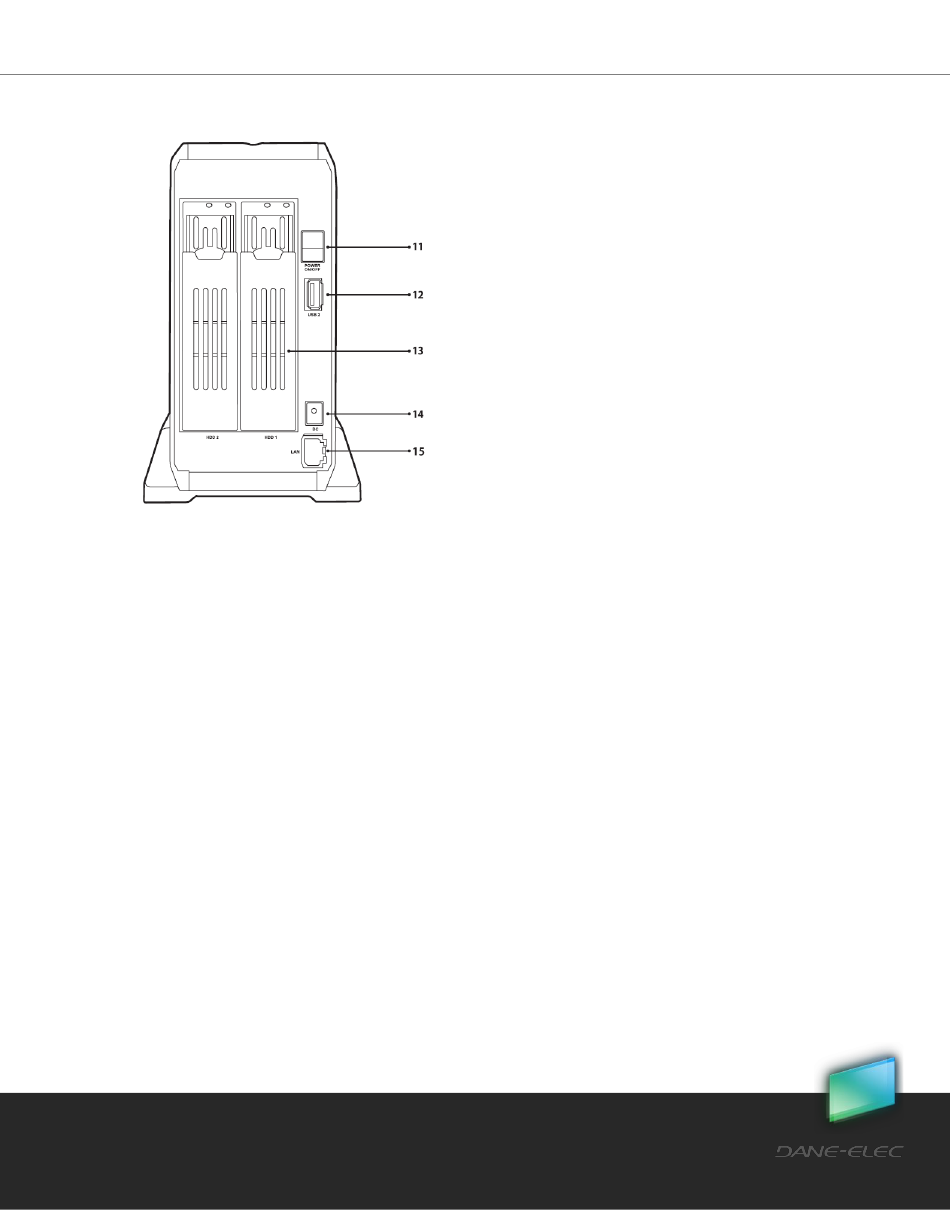

3.2.2 Back View

11. Power switch
12. USB2 (port)
13. Hard Disk Drawers House the hard disk drives*
14. Power Supply
15. Ethernet Port
* For information on how to replace or add a hard disk drive, see section 12, Installing Hard Disk Drives,
on page85.
Dane-Elec. All rights reserved 2010
turns my-Ditto On/off
to be used with external USB storage devices:
1. For single-touch copy, see section ‎ 1 0.2 Single-touch Copy on page
80.
2. connecting an external USB drive, see section ‎ 1 0.3 Connect
External Hard Drive on page 81.
Connects my-Ditto to its power adaptor and the power source
Connects my-Ditto to a local network (router or ISP box)
10
