Medion MD 88109 - Gaming Mouse Manual

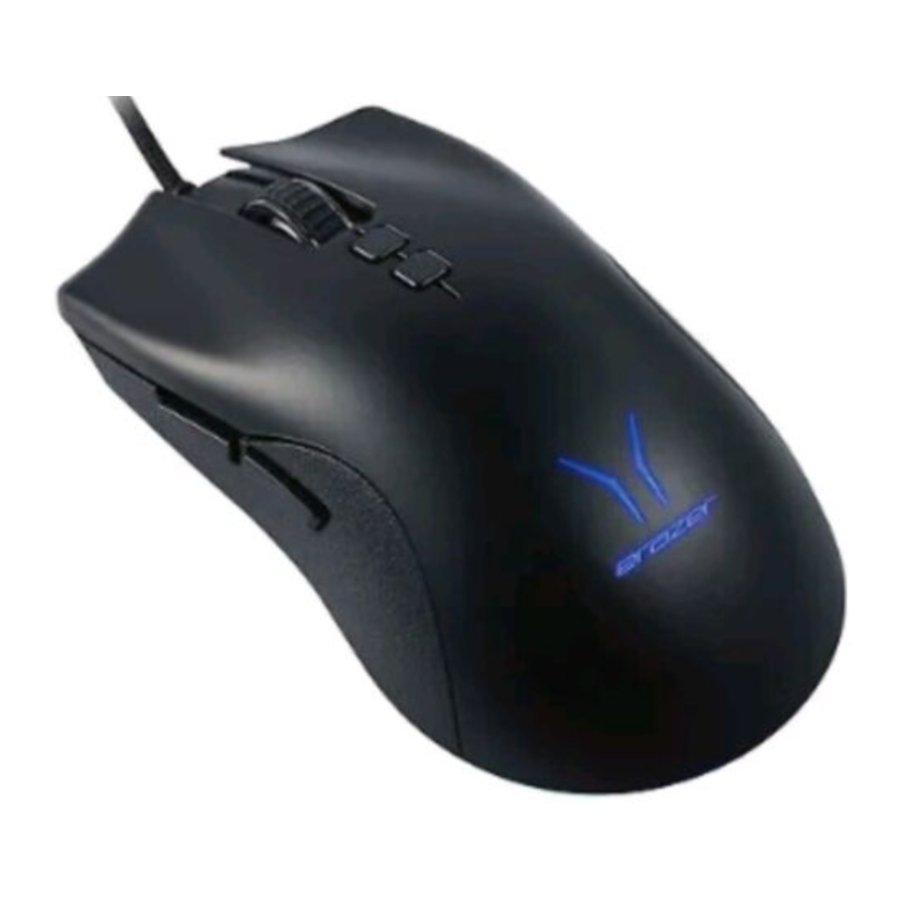

Device parts
- RMB (Right Mouse Button)
- Mouse wheel
- DPI +
- DPI -
- TB 1 (Thumb Button 1)
- TB 2 (Thumb Button 2)
- LMB (Left Mouse Button)
Getting started
- Switch on the computer and all connected peripheral devices (monitor, printer, etc.) and wait until the operating system is fully started.
- Plug the USB connector of the mouse into a free USB port on your computer.
- Drivers are installed automatically.
Software
- Download the software from http://cdn.medion.com/downloads/software/sw_md88109_w10.exe
- Install and run the software.
DPI settings
- Press the corresponding DPI selection button
![]()
or ![]()
to change the DPI resolution (1000, 2000, 4000, 6000, 8000, 10000 DPI).
Cleaning
- Make sure that the device is kept clean. Before cleaning the device, disconnect all cable connections to the PC. Clean the device and all other components with a damp cloth. Do not use solvents, corrosive or gaseous cleaning agents.
General technical data
| Mouse | |
| Operating temperature | -20°c + 65°C |
| Humidity | max. 90% |
| Dimensions (W x H x D in mm) | ca. 67 x 40 x 122 |
| Weight | ca. 133 gr. |
| Power supply USB DC IN | 5V 50mA |
