Attention:
Read this instruction manual carefully and completely before mounting and
usage. Keep this manual for future reference.
Mounting and User Instructions for
Folding screen awning
Packing List...................................
Product Description.......................
Safety Instructions.........................
Preparations..................................
Mounting........................................
Usage............................................
Maintenance............................
Cleaning.........................................
Dismounting...................................
Storage...........................................
2
3
3
4
5
6
7
8
8
8
1
Advertisement
Table of Contents
Related Manuals for Metalcraft 139-1-122-MC
Summary of Contents for Metalcraft 139-1-122-MC
- Page 1 Mounting and User Instructions for Folding screen awning Content Packing List........Product Description....... Safety Instructions......Preparations........Mounting........Usage..........Maintenance………………………. Cleaning......... Dismounting........Storage........... Attention: Read this instruction manual carefully and completely before mounting and usage. Keep this manual for future reference.
- Page 2 Dear Customer, congratulations and thank you for buying folding screen awning, to enjoy this product for a long time and for your own and the safety of other people please obey the mounting instructions. Before you start mounting and using the awning, please get familiar with this product. Make sure all parts listed up in below packing lists are delivered and intact.

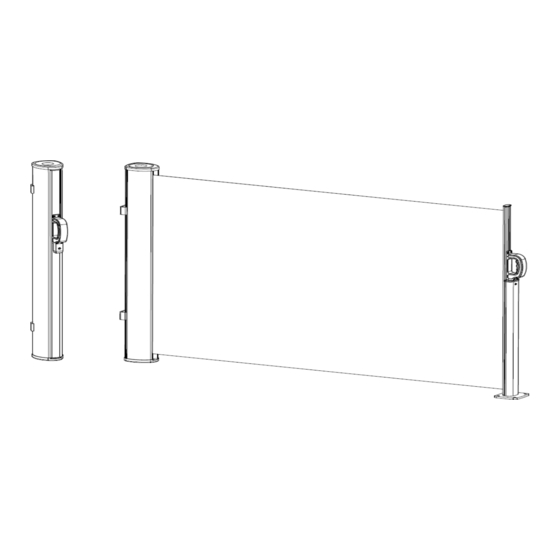

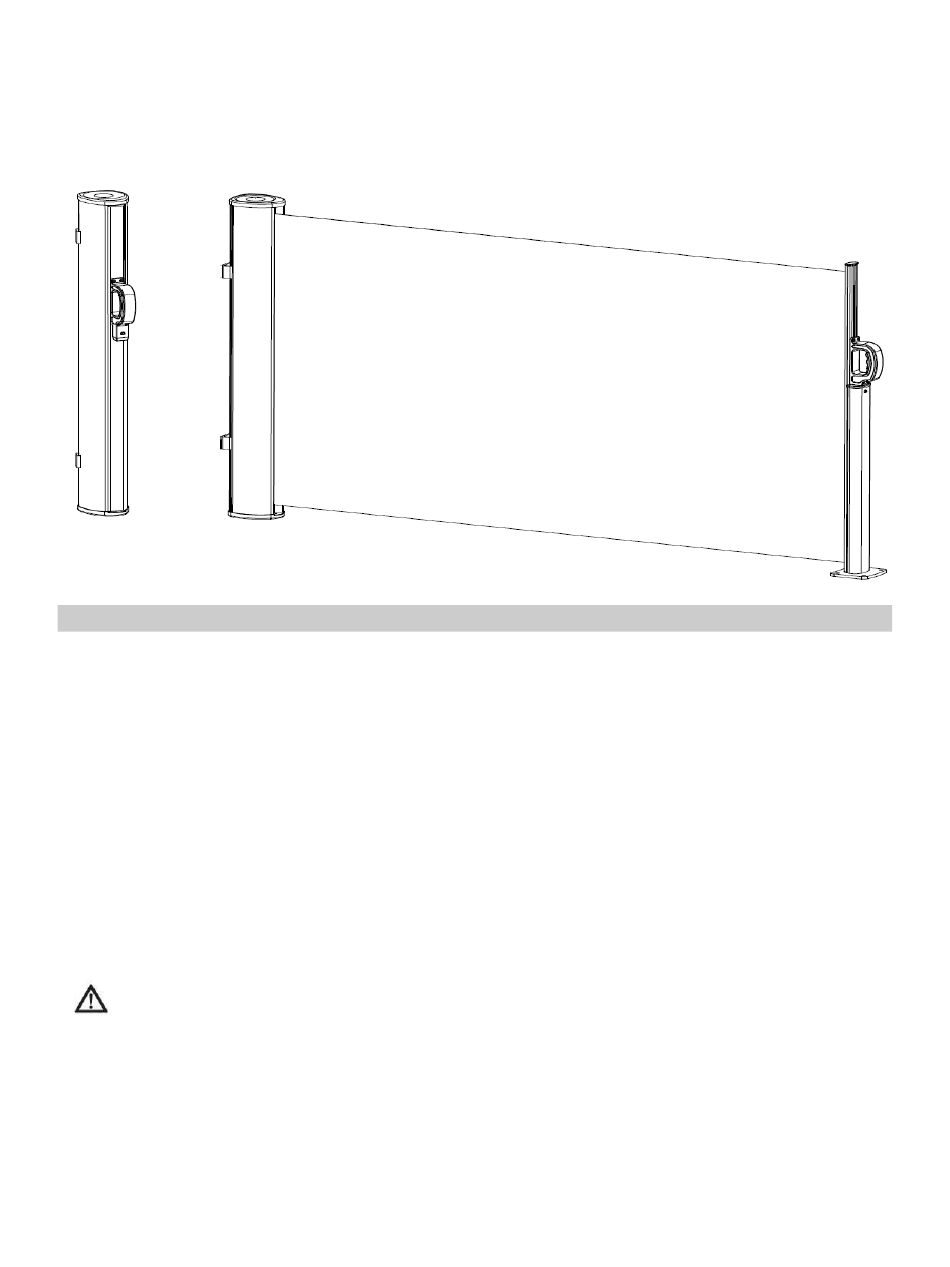

- Page 3 Awning cover Front bar Wall bracket handle Side cover Standing pole Fabric Standing pole chassis Important Safety Instructions Warning: For your own and the safety of other persons, it is important to follow below instructions and obey warnings. Symbol explanation This warning triangle calls attention to hazards that that can lead to death or to severe injuries or which are important for the functioning of the awning.
- Page 4 Nobody is allowed to change the products’ design and structure without the permission of manufacture or authorized deputy. Please make sure that your hands are clean at the time of the assembly; otherwise you may soil the awning fabric and frame. Preparations Make sure that no children and pets are present during mounting.
- Page 5 Use 10-mm drill to drill the holes for the front bar hook at the appropriate marks on the wall .The holes Should be 4.5cm deep in the wall/support place Step 3: Fixing Awning Up lift the awning casing back card slot snaps into wall brackets, using M5*10 hex bolts fixed the awning on wall.
- Page 6 Figure 3: Fixing Standing Pole Chassis Figure 4: Fixing Standing Pole Attention: The standing pole should be mounted at the same level ground with the awning. Attention: Misplacing and misapplying the awning can cause seriously danger. Only mount the awning yourself when you understand the mounting instructions completely and when you are sure that the wall/support place you want to mount the awning on is suitable.
- Page 7 How to use standing pole Pull the front bar’s handle horizontally to the fixed standing pole. Attention: 1. the folding screen awning are intended as a protection against the sun only. It is not to be used during periods of strong wind, retract the awning immediately. 2.
- Page 8 Cleaning Frame: Over time, dust and dirt will collect on the frame and will require periodic cleaning to maintain its appearance. A mild spray cleaner or water/detergent mixture may be applied to the frame to clean it. Wipe dust off with a damp cloth.
