Metalcraft 139-1-40-MC Installation Instruction

CAUTION: Sheet metal parts may have sharp edges or burs. Use care and wear appropriate protective
clothing and gloves when handling parts. Failure to follow this caution could result in personal injury.
WARNING
Recommend at least 2 people work together to install the awning. The hardware supplied is intended
for concrete or brick wall installation.
1. Never use the awning during heavy rain, storms or frosty conditions. Please do not extend the
awning when wind is above Beaufort Scale 5 or 10.7m/s (38km/h).
2. Keep flammable objects away from the awning.
3. Do not put any heavy object on the awning while the awning is extending.
4. Check the awning regular to make sure all bolts and nuts are not loosened. Should you find any
loose bolts, tighten up immediately. Do not use until any repair or replacement is finished.
5. The arms have high tension cables inside the chambers. Do not try to repair or adjust the arms.
6. This awning should be installed at the height 2.5M off the deck/ground.
7. Make sure there is enough space for awning extension before installation

CARE AND MAINTENANCE

FRAME
Cleaning: use a mild detergent and warm water on the frames; do not use abrasive material, cleansers,
chemicals, bleach or solvents on frames. Rinse with clean water. Dry thoroughly.
Maintenance: Frame finishes may be maintained by applying a quality auto wax after each cleaning.
FABRIC
Cleaning: Wipe up minor spot with a mild soap and a damp cloth. It is sufficient to brush off the dirt on
the fabric in most cases.
Maintenance: Dry the fabric in the extended position when it is wet as soon as possible.
Package
The awning is packed in corrugated carton box with inner poly bag. The spare parts are packed in
separate inner box or poly bag inside the master carton. Before assembly, identify all parts against the
parts list. Do not attempt assembly if any parts are missing or damaged.
STORAGE
This awning should be kept away from fire and inflammable objects and should be stored in a dry place.
Dry the fabric in the extended position when it is wet.

Parts List

For awning up to a size of 2.95mX2.5m, two brackets are included. For 3.5mx2.5m and 3.95mx2.5m,
there are three brackets included.
2.95mX2.5m awning
Wall bracket X 2
Φ10mm
Expanding bolt X4

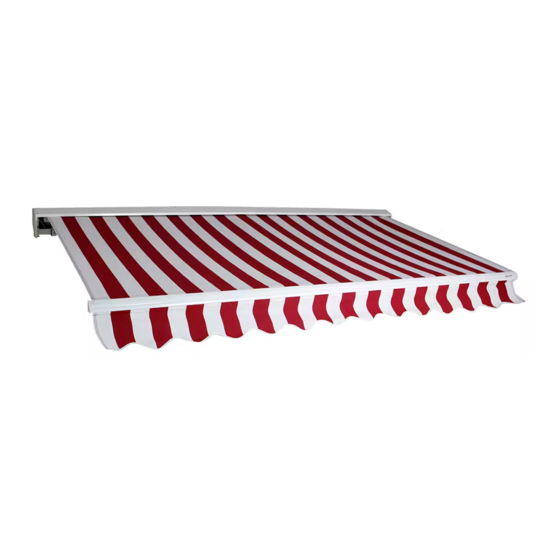

RETRACTABLE AWNING
FOR RESIDENTIAL
INSTRALLATION INSTRUCTION
3.5mx2.5m and 3.95mx2.5m awning
Wall bracket X 3
Φ10mm
Expanding bolt X6
