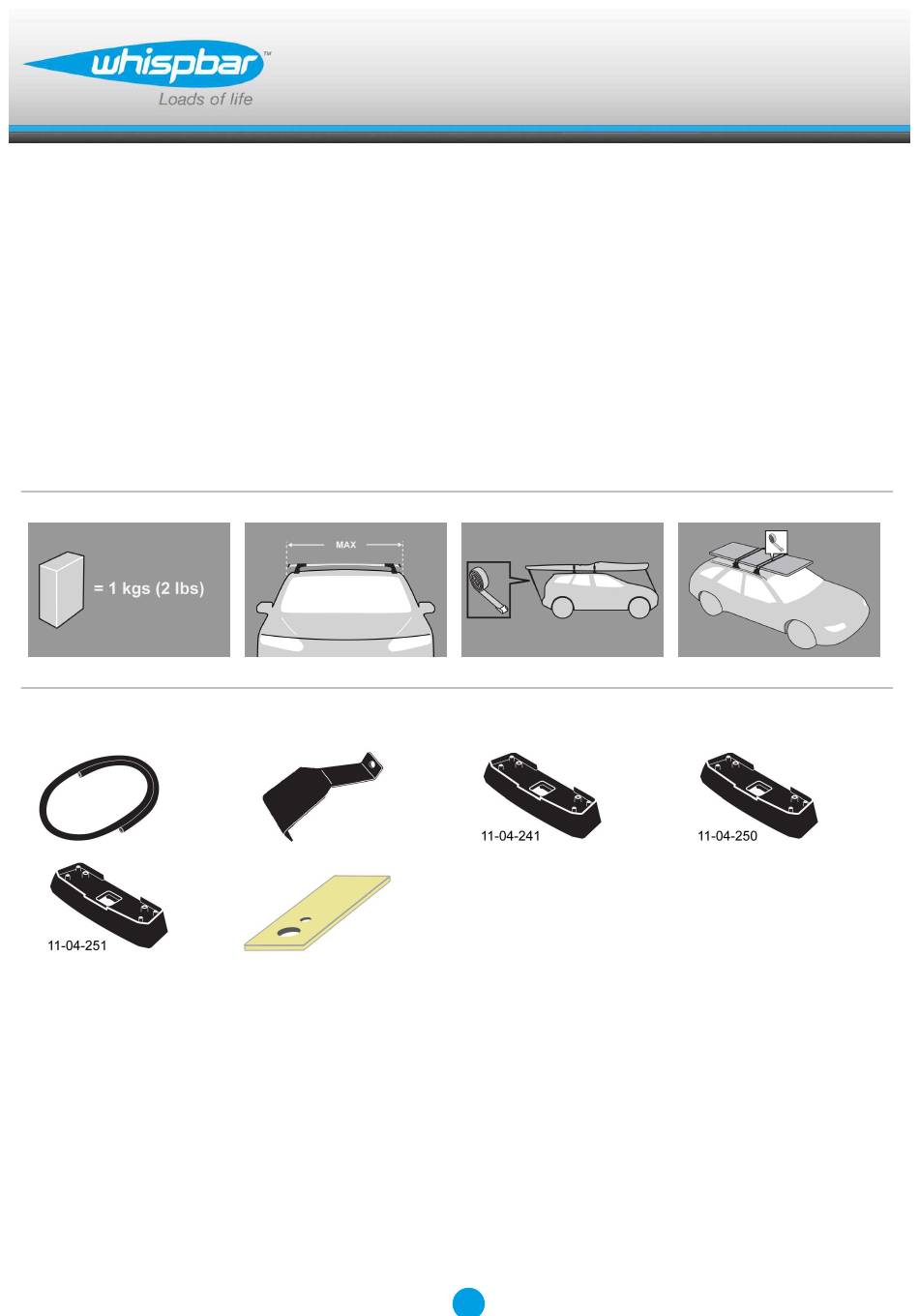

- Page 1 K573W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 5E...
- Page 2 Fitting Kit K573W MAX kgs (lbs) Volkswagen Polo Mk4, 5dr Hatch 02-05 75 kgs (165 lbs) 75 kgs (165 lbs) Polo Mk4, 5dr Hatch 02-05 75 kgs (165 lbs) 75 kgs (165 lbs) Polo Mk4, 5dr Hatch 02-05 75 kgs (165 lbs)
- Page 3 Fitting Kit K573W Polo Mk4, 5dr Hatch 02-05 (NZ) -240mm 510mm 800mm 770mm -9 -7/16ths" 20 1/16ths" 31 1/2ths" 30 5/16ths" Polo Mk4, 5dr Hatch 02-05 (AU) -240mm 510mm 800mm 770mm -9 -7/16ths" 20 1/16ths" 31 1/2ths" 30 5/16ths" Polo Mk4, 5dr Hatch 02-05 (EU)
-
Page 4: First Time Installation
Fitting Kit K573W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K573W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K573W Remove locking screw. Apply protective strip as shown. Trim if required. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 7 Fitting Kit K573W Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle.
- Page 8 Fitting Kit K573W Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 9 Fitting Kit K573W Locate vehicle's fixed points. Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar, and the clamps engage firmly on the body work of the vehicle. Clamps directly to edge of roof under the doors, pin locates in hole on vehicle Tighten adjusting screw to 5 Nm (3.7 ft lb)
- Page 10 Fitting Kit K573W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers Energising Door Seal Measure doors as shown for starting placement of door seal. Repeat for all doors.
- Page 11 Fitting Kit K573W Ensure door seal positioned as shown. Install door seal. Check placement...
- Page 12 Fitting Kit K573W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 13: Maintenance
Fitting Kit K573W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 14 Fitting Kit K573W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 15 Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
- Page 16 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
