heightec Cyclone P20 User Instructions

®
with respect to gravity...
TM
Cyclone
Locking Pulley
USER INSTRUCTIONS
P20 - Stainless Steel Body
P201 - Aluminium Body

Pre-Use Checks

• Ensure there is no significant damage or wear.
• Ensure pulley wheel rotates freely.
• Ensure cheeks are locked closed by connector.
• Ensure locking cam engages and disengages
smoothly.

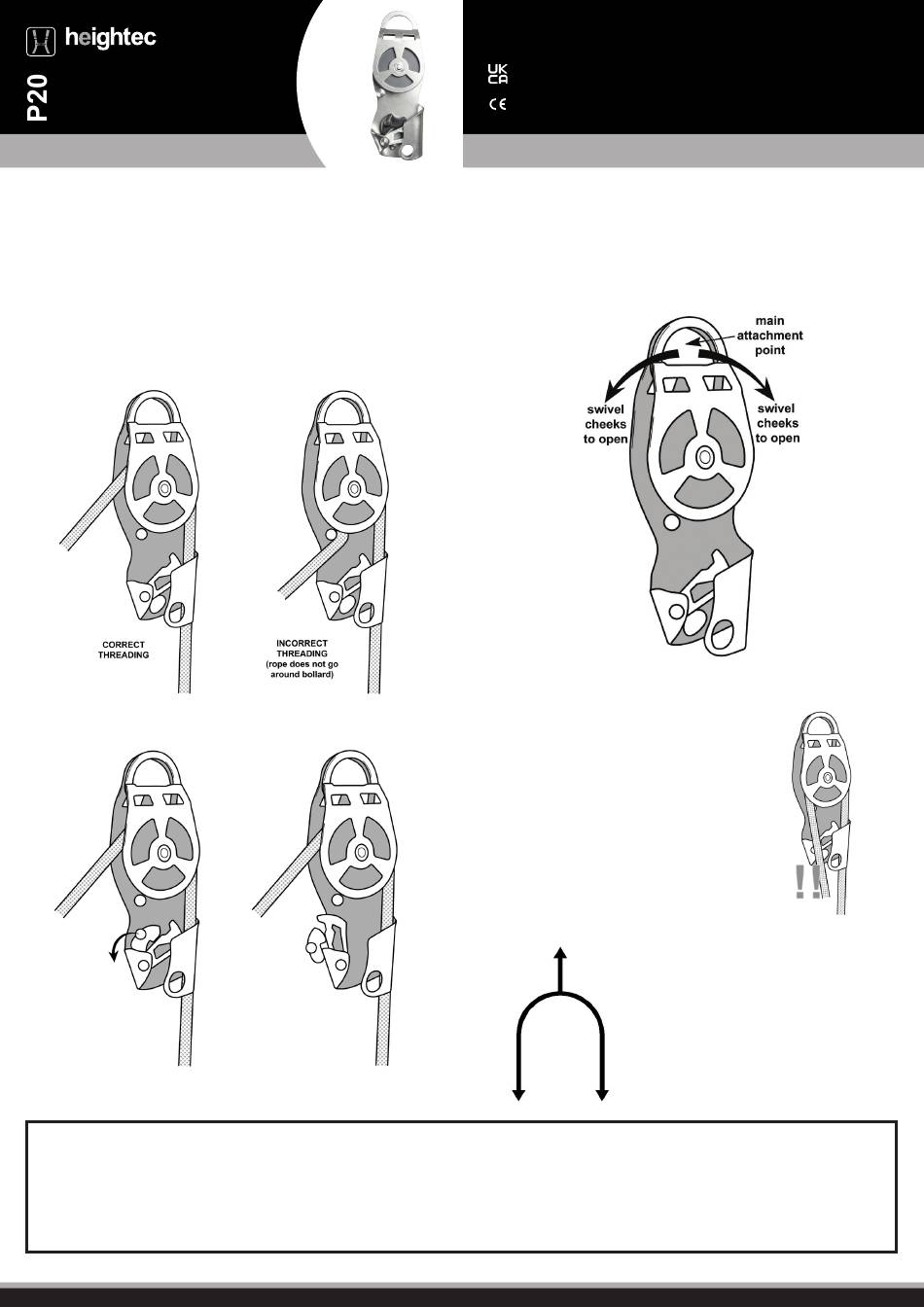

Correct threading of rope

Open the locking cam to insert or remove rope

Warnings

Do NOT run any pulley against an edge as a severe bending force will be created.
Do NOT use for lifting or supporting persons
Do NOT use as part of a PPE system
Do NOT use with wire cables
Working Load Limit (WLL) 100kg (Factor of Safety 5:1) for the Rope Locking Cam
Working Load Limit (WLL) 300kg (Factor of Safety 5:1) for the Pulley ONLY
Not for use as PPE
Supply of Machinery (Safety) Regulations 2008
EN13157:2004 + 1A:2009 Cranes - Safety - Hand
Powered Cranes
Approved under the Machinery Directive 2006/42/EC
EN13157:2004 Cranes - Safety - Hand Powered
Cranes

Attachment

All attachments should be made through both cheeks
of the main attachment point, which will accept up to
three 12mm connectors.
Swivel front cheek to insert rope:
For use only with 10.5mm to 11.0mm diameter low-
stretch rope.
Ensure that the rope does NOT
rub across the top of the locking
cam which could prevent correct
operation

Forces on a pulley

2 x Load
Pull Load
Manufactured by;
The heightec Group Ltd, Kendal, Cumbria LA9 6NH, UK
Doc UI-P20- Issue date 25/11/21
heightec.com
Remember that the force
experienced by the pulley
and anchor point is twice
that of the load being lifted.
E.g. Load 100kg + force to
lift 100kg = 200kg on pulley
