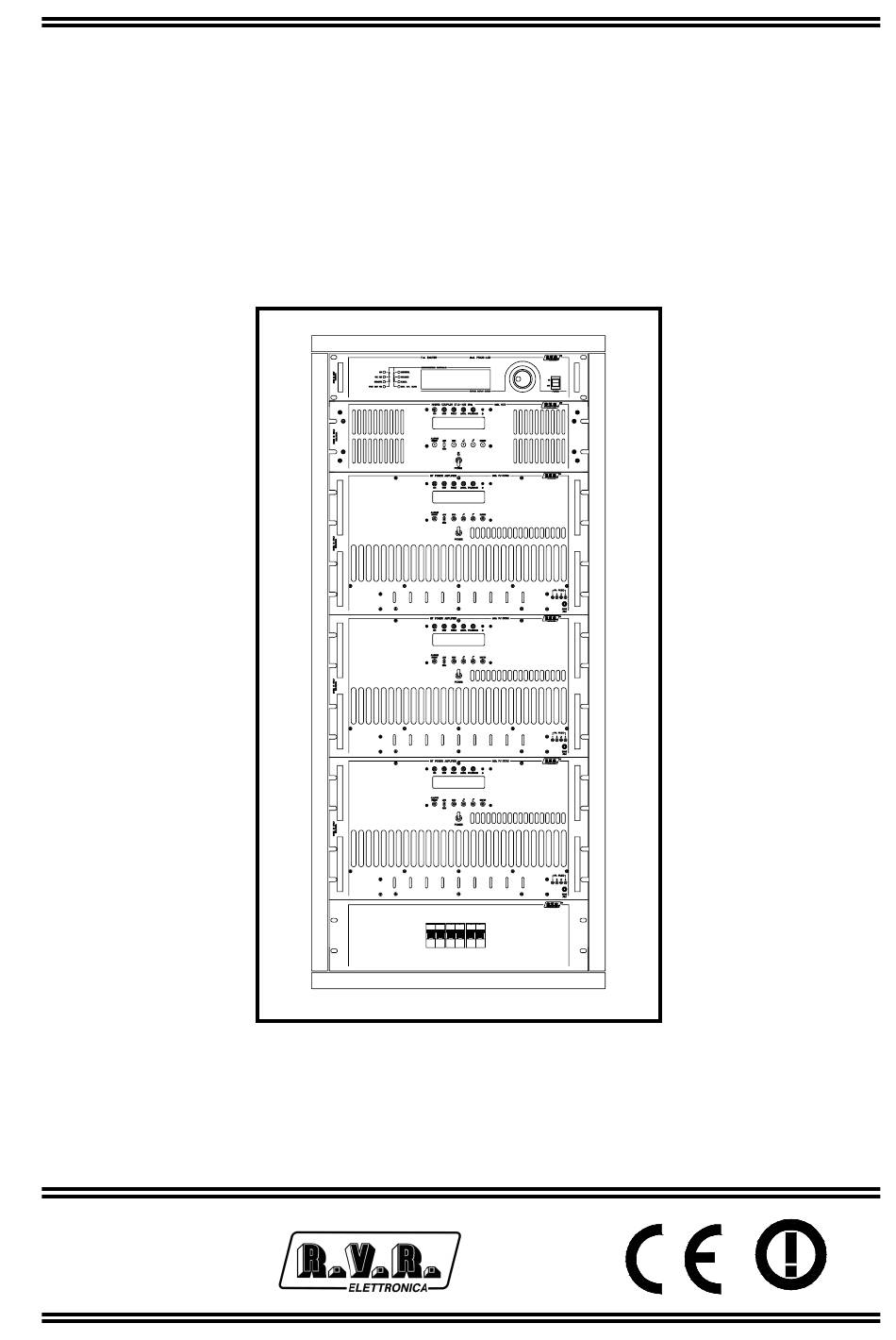

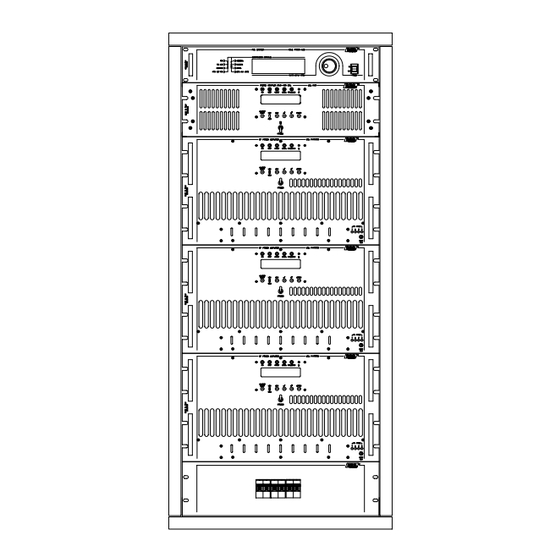

  • Page 1 TX3000 User Manual Manufactured by Italy...
  • Page 2 02/12/2002 Revision History Version Date Reason Editor 02/12/2002 New version D. Canazza TX3000 - User Manual Versione 1.0 © Copyright 2002 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia) Telefono: +39 051 6010506 Fax: +39 051 6011104 Email: info@rvr.it...
  • Page 3 Limitations of use can apply in respect of operating freuency, transmitter power and/or channel spacing. Declaration of Conformity Hereby, R.V.R. Elettronica SpA, declares that this FM transmitter is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 4 This page intentionally left blank...
  • Page 5 TX3000 1. Introduction This manual describes the TX3000SS, a radio transmitter for frequency modulation audio broadcastiong. The TX3000SS is a modular device, built up of components assembled in a 19” rack, complete with electrical and RF wiring. This manual shall be read together with the manuals of the different components, that are attached herewith.
  • Page 6 TX3000 2.2 TX3KSSRD/RDS This version is the most complete version of the TX500SS. With respect to the “essential” components, it features: • Double exciters (2 PTX100LCD/s); • Double RDS encoders (2 TRDS4001); Automatic change-over (SCM1+1 LCD); • Telemetry unit (TLC300);...
  • Page 7 TX3000 2.3 TX3KSSRD This version of the transmitter gives to the customer the benefit of redundant exciters and remote control. It is composed of: • Double exciters (2 PTX100LCD/s); • Automatic change-over (SCM1+1 LCD); Telemetry unit (TLC300); • Amplifier (PJ3000M).
  • Page 8 TX3000 2.4 TX3KSSD/RDS This version of the transmitter gives redundant exciters and RDS coders. It consists of: Double exciters (2 PTX100LCD/s); • Double RDS encoders (2 TRDS4001); • • Automatic change-over (SCM1+1 LCD); Amplifier (PJ3000M). • 4 / 8 Rev. 1.0 - 02/12/02...
  • Page 9 TX3000 2.5 TX3KSSD This version is composed of: • Double exciters (2 PTX30LCD/s); • Automatic change-over (SCM1+1 LCD); Amplifier (PJ3000M). • User Manual Rev. 1.0 - 02/12/02 5 / 8...
  • Page 10 TX3000 2.6 TX3KSSR/RDS This version of the transmitter is tele-controllable and includes the RDS coder. It is composed of: Exciter (PTX30LCD/s); • • RDS encoder (TRDS4001); Telemetry unit (TLC300); • Amplifier (PJ3000M). • 6 / 8 Rev. 1.0 - 02/12/02...
  • Page 11 TX3000 2.7 TX3KSSR This is the simplest telemetrized version of the TX500SS. This version is composed of: Exciter (PTX30LCD/s); • • Telemetry unit (TLC300); Amplifier (PJ3000M). • User Manual Rev. 1.0 - 02/12/02 7 / 8...
  • Page 12 TX3000 2.8 TX3000SS/V2 This version is composed of: Exciter (PTX30LCD/s); • Amplifier (PJ3000M). • 8 / 8 Rev. 1.0 - 02/12/02 User Manual...
