Hinge and Hardware Adjustment
Product Series: A-Series, 400 Series
Product Type: Hinged Inswing Patio Doors
(Manufactured After November 2005)

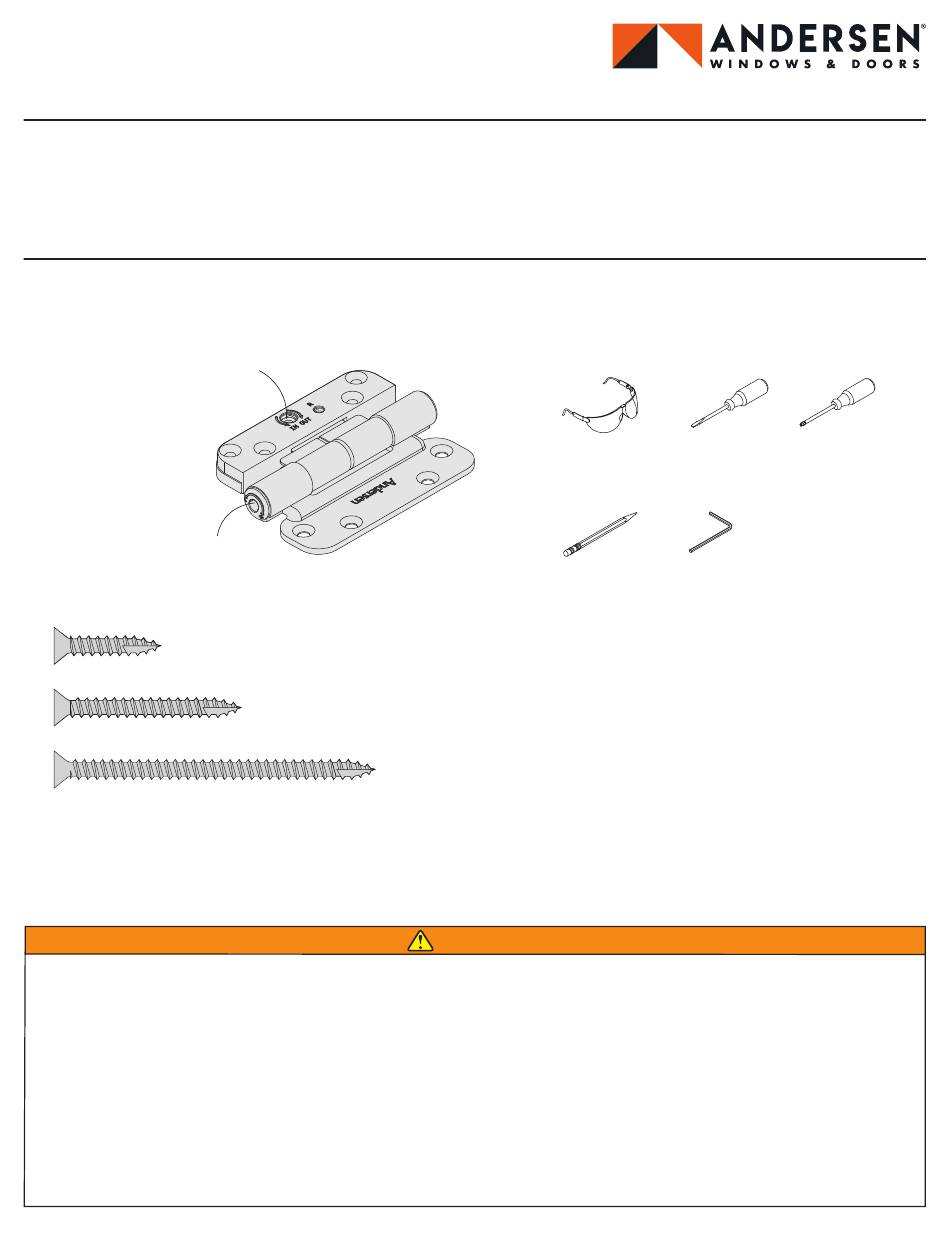

Parts Included:
Horizontal
Adjustment
Screw
Hinge (1)
Vertical
Adjustment
Screw
#10 x 1" Screw (2)
#10 x 1-3/4" Screw (4)
#10 x 3" Screw (2)
▶ Hinge Replacement page 2.
▶ Hinge and Hardware Adjustment page 3.
· Use caution when working at elevated heights and around window and door openings. Follow the manufacturers'
instructions for ladders and scaffolding. Failure to do so could result in injury or death.
· Follow manufacturers' instructions for hand and power tools. Always wear safety glasses. Failure to do so could result in
injury, product or property damage.
· Windows and doors can be heavy. Use safe lifting techniques and a reasonable number of people with enough strength
to lift, carry, and install window and door products. Heavier windows and doors will require mechanical assistance. Failure
to do so could result in injury, product or property damage.
· Metal fasteners and components could corrode when exposed to preservative-treated or fire-retardant treated lumber.
Use approved fasteners and components to fasten window or door. Failure to do so could cause a failure resulting in
injury, product or property damage.
"Andersen" and all other marks where denoted are trademarks of Andersen Corporation. ©2008-2023 Andersen Corporation. All rights reserved.
Read these instructions before starting procedure. For
additional information visit www.andersenwindows.com.
For questions call 1-888-888-7020.
Para obtener una versión en español de esta guía,
visite el sitio www.andersenwindows.com
Tools and Supplies Needed:
Safety
Glasses
Pencil
WARNING
Phillips
Flat Blade
Screwdriver
Screwdriver
5/32" Hex Key
(included with Patio Door)
0 005 413 B C- 0 0 04/13/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A Series and is the answer not in the manual?

Questions and answers

Robert Frazier
July 8, 2025

I have Andersen Frenchwood Outswing doors installed in 2011, two doors, one primary and one secondary opening. The information on the doors said that "If Hook Bolts, on edge of Active Panel, do not stay in position when locking or if operation is hard, adjust the Hook Bolt Receivers". In my case, operation is so hard I am afraid I am going to break the door handle when I try to actuate the lock. The paperwork does not tell me how to adjust the Hook Bolt Receiver. Can you help me.

Subscribe to Our Youtube Channel

Summary of Contents for Andersen A Series

  • Page 1 Use approved fasteners and components to fasten window or door. Failure to do so could cause a failure resulting in injury, product or property damage. “Andersen” and all other marks where denoted are trademarks of Andersen Corporation. ©2008-2023 Andersen Corporation. All rights reserved. 0 005 413 B C- 0 0 04/13/23...
  • Page 2 NOTICE IMPORTANT • Hinge replacement WILL NOT correct problems • Make all horizontal adjustments first. Horizontal adjustments correct resulting from improper door installation most problems. Vertical adjustments are rarely needed. Examples of improper installation include units • Adjust hinges with door slightly open. The door panel should be not being installed plumb, level, and square, supported by all hinges for maximum hinge performance.
  • Page 3 Hinge and Hardware Adjustments NOTICE Panel Horizontal Adjustment (Side to Side) During counterclockwise rotation, stop adjustment when adjustment screw hits the back side of the cover and resistance increases. Failure to do so could cause product damage. Move all hinges IN or OUT to correct gap and 5/32"...
  • Page 4 Blocker Adjustment Door Latch Panel Receiver Blocker Pencil mark, showing top of Latch Lower Latch • Make a pencil mark where top of latch bolt strikes Surface Bolt latch receiver. Blocker • Loosen blocker adjustment screw. Adjustment • Slide blocker up or down so lower surface of Screw blocker lines up with pencil mark.
