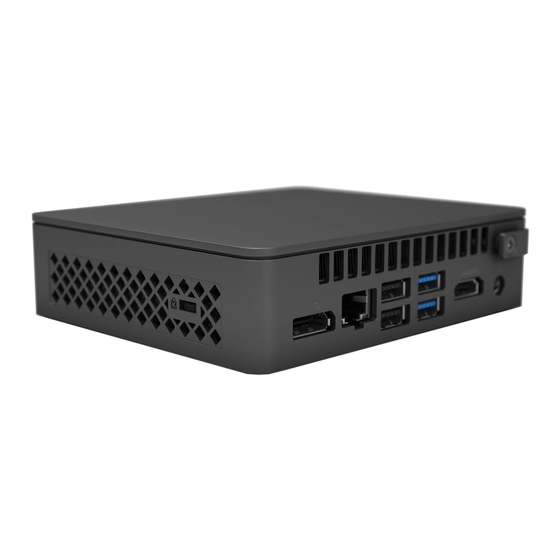

- Page 1 Intel® NUC Kit NUC11ATKPE Intel® NUC Kit NUC11ATKC4 Intel® NUC Kit NUC11ATKC2 User Guide January 2022 NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022...
- Page 2 You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.
-
Page 3: Table Of Contents
Remove SO-DIMMs ............................9 Install an M.2 SSD .......................10 Close the Chassis .........................12 Use the VESA Bracket (Optional) ................13 Connect Power ........................15 Install an Operating System ..................17 Install the Latest Device Drivers and Software ..........18 NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022... - Page 4 Revision History Date Revision Description January 2022 Initial release. NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022...
-
Page 5: Introduction
ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. NUC11ATKPE, NUC11ATKC4, NUC11ATKC2... -
Page 6: Observe Safety And Regulatory Requirements
Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel. Observe Safety and Regulatory Requirements If you don’t follow these instructions, you increase your safety risk and the possibility of noncompliance with regional laws and regulations. NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022... -
Page 7: Open The Chassis
Open the Chassis Unscrew the four corner screws on the bottom of the chassis and lift the cover. NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022... -
Page 8: Install And Remove System Memory
Install and Remove System Memory Intel NUC Kits NUC11ATKPE, NUC11ATKC4, and NUC11ATKC2 have two 260-pin DDR4 SO-DIMM memory slots Memory requirements: 1.2V low voltage memory 2933 MHz SO-DIMMs Non-ECC Up to 32 GB total (2x 16GB memory modules) Find compatible system memory modules at the Intel®... -
Page 9: Remove So-Dimms
7. Reinstall and reconnect any parts you removed or disconnected to reach the SO-DIMM sockets. 8. Replace the computer’s cover and reconnect the AC power cord. NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022... -
Page 10: Install An M.2 Ssd
Install an M.2 SSD Intel NUC Kits NUC11ATKPE, NUC11ATKC4, and NUC11ATKC2 support 80mm and 42mm SSDs. Find compatible M.2 SSDs at the Intel® Product Compatibility Tool: NUC11ATKPE NUC11ATKC4 NUC11ATKC2 If you’re installing an 80mm M.2 SSD: 1. Remove the small silver screw from the 80mm metal standoff on the motherboard. - Page 11 3. Align the small notch at the bottom edge of the M.2 card with the key in the connector. 4. Insert the bottom edge of the M.2 card into the connector. 5. Secure the card to the standoff with the small silver screw. NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022...
-
Page 12: Close The Chassis
Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022... -
Page 13: Use The Vesa Bracket (Optional)
1. Using the four small black screws that were included in the box, attach the VESA bracket to the back of the monitor or TV. 2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022... - Page 14 3. Slide the Intel NUC onto the VESA mount bracket. NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022...
-
Page 15: Connect Power
Country-specific power plug attachments are included in the box. 1. Choose the attachment for your region. 2. Connect AC power. Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power adapter). Product codes... - Page 16 US power cord included. BNUC11ATKC4001 BNUC11ATKC4001 BNUC11ATKPE002 EU power cord included. BNUC11ATKC4002 BNUC11ATKC4002 BNUC11ATKPE003 UK power cord included. BNUC11ATKC4003 BNUC11ATKC4003 BNUC11ATKPE004 Australia/New Zealand power cord included. BNUC11ATKC4004 BNUC11ATKC4004 BNUC11ATKPE006 China power cord included. BNUC11ATKC4006 BNUC11ATKC4006 NUC11ATKPE, NUC11ATKC4, NUC11ATKC2 User Guide - January 2022...
-
Page 17: Install An Operating System
Intel Product Compatibility Tool lists versions of Linux* that have been reported as compatible by Intel NUC owners. If you need assistance with Linux on your Intel NUC, check the distribution’s website and forums for peer assistance. Refer to Operating System Installation for system requirements and installation steps. -
Page 18: Install The Latest Device Drivers And Software
Install the Latest Device Drivers and Software Here are the options for keeping device drivers current: Allow the to detect out-of- Intel® Driver & Support Assistant (Intel® DSA) date drivers Manually download drivers, BIOS, and software from Download Center: NUC11ATKPE...
