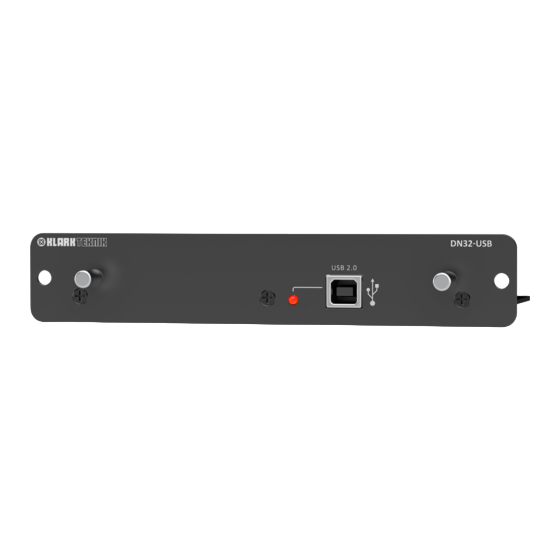

Klark Teknik DN32-USB Update Manual

Hide thumbs Also See for DN32-USB:

Klark Teknik DN32-USB Update Guide

for use with Windows* 7 / 8 / 8.1 / 10 (06 June 2019)

This firmware update guide is intended for users running Klark Teknik DN32-USB on the Windows

operating platform. Beyond providing basic product maintenance, this update contains a fix for

WDM-issues when switching between sample-rates or interface-modes. To ensure a successful update,

please execute the steps below in order.

(Note: If your product works properly and meets your requirements, these steps are not mandatory –

but highly recommended.)

1. Update M32 Host-Console Firmware

Download update from

Store update in root directory of your USB stick (there should only be one update file)

With console turned off, plug USB stick into console top/front panel

While holding down the USB-Recorder VIEW button, power up console (update will run

automatically and take up to 5 minutes)

Upon notification of successful update, restart console

Connect card via USB to your computer

Execute setup-application and follow instructions

(Note: Device/computer restart may be required after installation)

musictri.be

Music Tribe website

page 1 of 2

klarkteknik.com

Table of Contents

Do you have a question about the DN32-USB and is the answer not in the manual?

Page 1 Windows* 7 / 8 / 8.1 / 10 (06 June 2019) This firmware update guide is intended for users running Klark Teknik DN32-USB on the Windows operating platform. Beyond providing basic product maintenance, this update contains a fix for WDM-issues when switching between sample-rates or interface-modes.
Page 2 Press “Start” Upon successful completion, press “Exit” (Note: Due to its unique architecture, DN32-USB firmware updating requires this separate DFU tool instead of the host console. The DFU tool is always assigned to a single ASIO-driver, so ensure the respective driver is installed)
