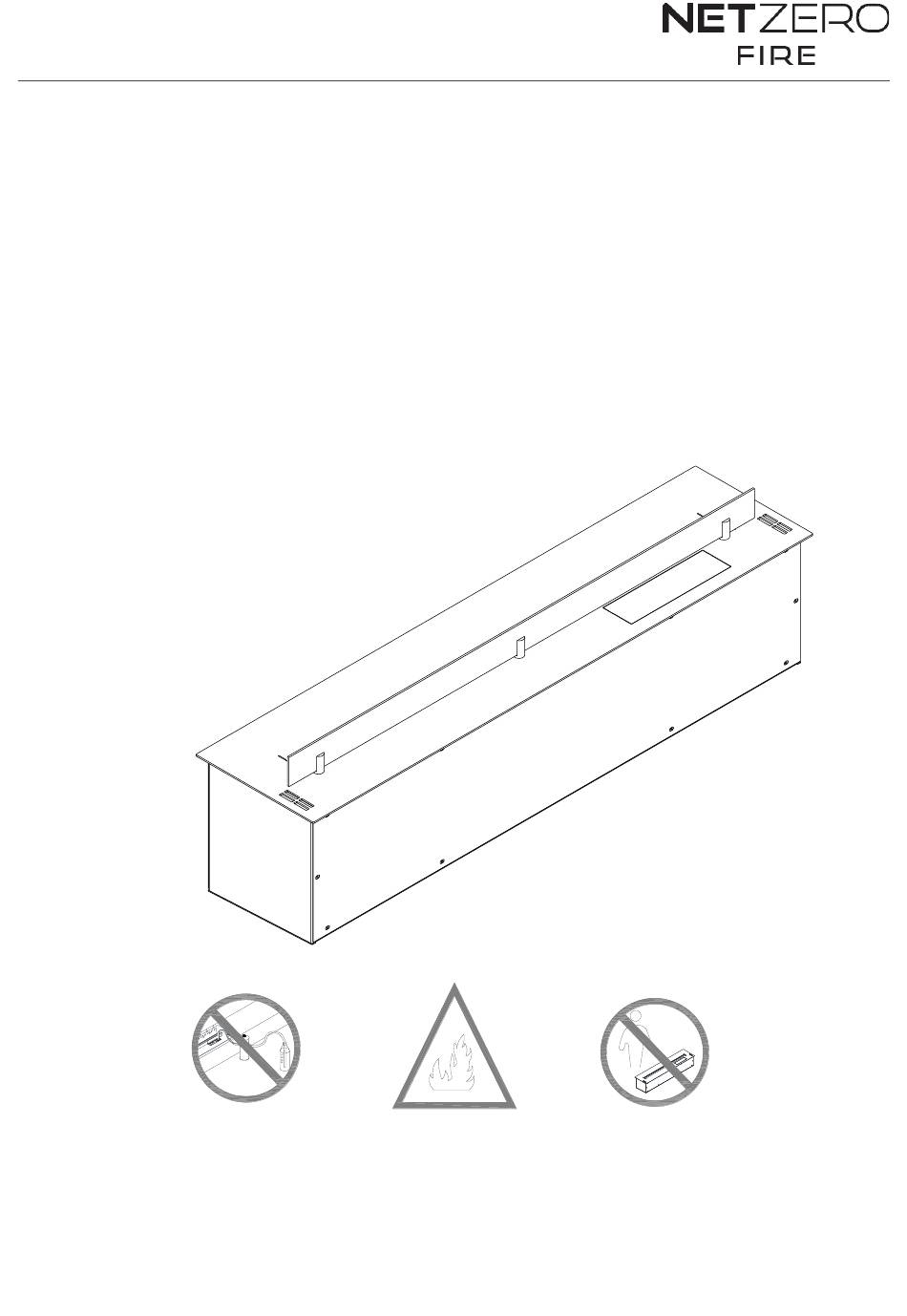

NetZero FLA Series Installation Manual
Hide thumbs Also See for FLA Series:

Advertisement

Quick Links

• INSTALLATION MANUAL
Not applicable when installing in a NetZero firebox.
• OPERATION AND MAINTENANCE MANUAL
Please read these instructions completely before
installing or operating the NetZero FLA Burner

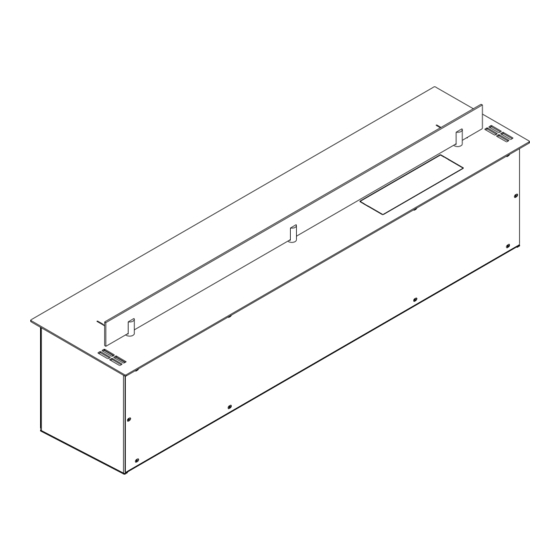

NetZero FLA Burner Series
Models:
AA-11-04745 – NZ40B
AA-11-04746 – NZ48B
AA-11-04747 – NZ60B
AA-11-04748 – NZ72B
AA-11-04749 – NZ90B
AA-11-04750 – NZ108B
If the information in these instructions is not followed exactly, a fire or explosion may result, causing property
Copyright Planika Sp. z o.o.
Do not fill while
operating
damage, personal injury, or loss of life.
www.planikausa.com
Flammable
WARNING
Keep away from
children
I1453#04
25.08.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for NetZero FLA Series

  • Page 1 • INSTALLATION MANUAL Not applicable when installing in a NetZero firebox. • OPERATION AND MAINTENANCE MANUAL Please read these instructions completely before installing or operating the NetZero FLA Burner NetZero FLA Burner Series Models: AA-11-04745 – NZ40B AA-11-04746 – NZ48B AA-11-04747 –...
  • Page 2: Table Of Contents

    Table of Contents IMPORTANT INFORMATION............................3 1.1 Certification ................................ 3 1.2 Safety Information .............................. 3 1.3 Locating the Burner ............................4 1.4 Ventilation & Required Room Size ........................4 1.5 Specifications ..............................4 1.6 Electrical Requirement ............................4 1.7 Fueling ................................. 4 EQUIPMENT RECEIVED ..............................
  • Page 3: Important Information

    1 IMPORTANT INFORMATION 1.1 Certification This product has been certified by OMNI-Test Laboratories, Inc. to: U.S. Certification Standard UL 1370 Canadian Certification Standard CAN/ULC-S674 ISSUED BY: OMNI-Test Laboratories, Inc. 13327 NE Airport Way Portland, Oregon 97230 1.2 Safety Information WARNING: 1) Risk of explosion Never use any fuel other than the fuels specifically identified for use in the unvented decorative appliance.
  • Page 4: Locating The Burner

    This is shown in the clearances and installation section of this manual. 1.7 Fueling Do not use gel or thick fuels. Only use fuels consisting of 86-96.6% ethanol (not dehydrated) by volume. NetZero Fuel is recommended.
  • Page 5: Equipment Received

    2 EQUIPMENT RECEIVED 2.1 Standard Equipment NetZero FLA Burner Technical glass Remote control USB-C service Lifting straps cable T-Fuel pump with protective bag Small glass holder Screw M3x15 Users' manual Table B QUANTITY OF STANDARD EQUIPMENT Remote T-Fuel pump with...
  • Page 6: Clearances And Installation

    3 CLEARANCES AND INSTALLATION 3.1 Burner Clearances and Cavity Measurements Measurements Electricity Burner Model A [in] C [in] D [in] F [in] connection connection [in] [in] [in] [in] NZ40B 30 ½” 40” NZ48B 115V, 60Hz, 38 ⅜” 48” NZ60B min. 15A 46 ¼”...
  • Page 7 - Materials used in areas designated as non-combustible must be rated as non-combustible per NFPA 220 Standard on Types of Building Construction, or reported as passing ASTM E 136, Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750 Degrees C. WARNING: common finishing materials not approved for use: - Paper-faced gypsum board (drywall) including Type X Fire Rated board is not a non-combustible material.
  • Page 8: Burner Clearances And Cavity Measurements For Multiple Burners

    3.2 Burner Clearances and Cavity Measurements for Multiple Burners To create longer, or custom size burners multiple burners can be placed together in the same cavity. Follow the chart below when building a cavity for a multiple burner arrangement. The C and D dimensions will be calculated from the total length of the burners placed together.
  • Page 9: Placing The Burner

    3.3 Placing the Burner Scan or click to watch the video instruction Insert the burner into the cavity https://www.youtube.com/watch?v= b5dETFNTBW4&feature=youtu.be Remove the lifting straps and save them. Remove adhesive protective foil Connect electricity wires in junction box Connect SHS connection (optional) 3.4 Installing Technical Glass Scan or click to watch the video instruction...
  • Page 10: Recommended Burner Installations

    3.5 Recommended Burner Installations Installation requiring technical glass Single-Side, Left-Corner, Right-Corner and Three-Sided Installations Three- Sided Left-Corner Installation requiring large glass barrier kit See-Through, Peninsula and Island installations For these installations, the Large Glass Barrier Kit must be used. For additional information on installing the Large Glass Barrier Kit reference the installation manual for the Large Glass Barrier Kit.
  • Page 11: Tv And Ac Installation

    4 TV and AC INSTALLATION A TV can be installed above the burner enclosure by following the methods shown below. Single-Sided, Left-Corner, Right-Corner and Three-Sided Installations min. 2 in min. 2 in See-Through and Peninsula Installations min. 2 in min. 2 in If an air conditioning vent or fan is located near the burner the vent or fan must be positioned to blow away from the burner.
  • Page 12: How To Operate The Burner

    5 HOW TO OPERATE THE BURNER 5.1 Components 5.2 Fueling a) Open the lid (I) and turn the burner on by pressing b) If the fuel tank is empty (START/STOP BUTTON BLUE LIGHT ON) or you want to add fuel to the burner, firmly plug in the fuel pump inlet ‘a’...
  • Page 13: Functions

    When the fuel bottle is empty, replace it with a full one and continue using the pump (see: section ‘c’ above). The pump will stop refilling when the fuel tank is full (YOU WILL HEAR A “BEEP”). d) Unplug the power cord ‘b’. To unplug the pump, hold the pump inlet ‘a’ and firmly press the release button (V). e) Shake the remaining fuel from the hose ‘c’...
  • Page 14: Wireless Control Configuration

    5.4 Wireless control configuration Download the FLA3 NET-ZERO app on your mobile device from the app store. Follow these instructions to pair the burner with the mobile app. If you have multiple burners follow the instructions to pair each burner individually (simultaneous pairing of more than one burner is not possible). Find your fireplace Join the newsletter 1.
  • Page 15: Fla3 Net-Zero Mobile App

    Access Point Your fireplaces 7. You can also create a 6. On the following dedicated network ACCESS screen (YOUR POINT and connect the FIREPLACES), choose mobile device directly to the your burner and burner. This allows use of the press CONNECT. The app if a home network is not screen also allows available.
  • Page 16: Menu

    6.1 Menu To access menu, press the button. To go back to the main panel, press BACK To access general information about the fireplace, press the button. The notifications are available by pressing the button. Menu Info Notifications Main app setup. Press the tab to change Press the button to check the general Press the...
  • Page 17: Errors

    Press SEND. MAINTENANCE NetZero burners are considered maintenance free, meaning they do not require regular servicing. To ensure the burner is in proper condition, the manufacturer suggests visually inspecting the condition of the nozzles on the flame rail while the burner is off. The nozzles should be round and regular. Any signs of corrosion on the flame rail, irregular flame pattern or any other erratic behavior of the burner should be immediately reported to the seller or distributor of the burner.
  • Page 18 This warranty is given on condition that the Purchaser carefully reads the Product manual and follows all assembly and operation rules that are included therein. NetZero is a distributor of these products, which are designed and manufactured by Planika SP S O O. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF AND SUPPLIED MANUALS.
