• INSTALLATION MANUAL
Not applicable when installing in a NetZero firebox
• OPERATION AND MAINTENANCE MANUAL
Please read these instructions completely before
installing or operating the NetZero PrimeFire Burner

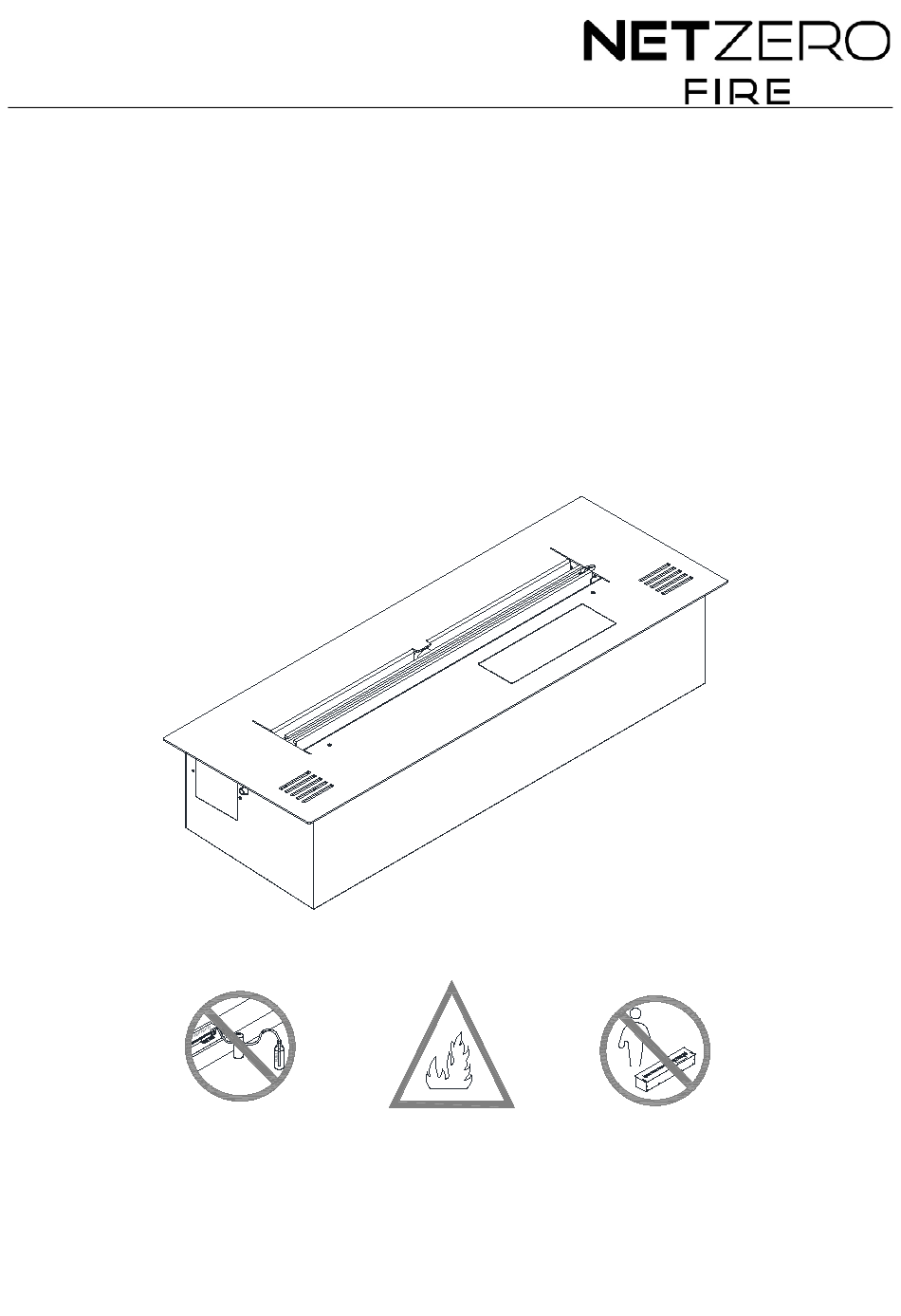

NetZero PrimeFire Burner
Models: AA-11-04744 – NZ36B
If the information in these instructions is not followed exactly, a fire or explosion may result,
Do not fill while
operating
causing property damage, personal injury, or loss of life.
Flammable
WARNING
Keep away from
children
Advertisement
Table of Contents
Related Manuals for NetZero PrimeFire
Summary of Contents for NetZero PrimeFire
- Page 1 • INSTALLATION MANUAL Not applicable when installing in a NetZero firebox • OPERATION AND MAINTENANCE MANUAL Please read these instructions completely before installing or operating the NetZero PrimeFire Burner NetZero PrimeFire Burner Models: AA-11-04744 – NZ36B Do not fill while...
-
Page 2: Table Of Contents
Table of contents 1 IMPORTANT INFORMATION .................... 3 1.1 Certification ....................... 3 1.2 Safety Information ....................3 1.3 Locating the Burner ....................4 1.4 Ventilation & Required Room Size ................4 1.5 Specifications ...................... 4 1.6 Electrical Requirement................... 4 1.7 Fueling ......................4 2 EQUIPMENT RECEIVED .................... -
Page 3: Important Information
1 IMPORTANT INFORMATION 1.1 Certification This product has been certified by OMNI-Test Laboratories, Inc. to: U.S. Certification Standard UL 1370 Canadian Certification Standard CAN/ULC-S674 ISSUED BY: OMNI-Test Laboratories, Inc. 13327 NE Airport Way Portland, Oregon 97230 1.2 Safety Information WARNING: 1) Risk of explosion Never use any fuel other than the fuels specifically identified for use in the unvented decorative appliance. -
Page 4: Locating The Burner
This is shown in the clearances and installation section of this manual. 1.7 Fueling Do not use gel or thick fuels. Only use fuels consisting of 86-96.6% ethanol (not dehydrated) by volume. NetZero Fuel is recommended. -
Page 5: Equipment Received
2 EQUIPMENT RECEIVED 2.1 Standard Equipment Table B QUANTITY OF STANDARD EQUIPMENT Screw Remote T-Fuel pump with Small glass Burner Model USB service cable Technical glass Lifting straps control protective bag holder M3x15 NZ36B 2.2 Optional Equipment Applies to see-through, peninsula and island installations. For information on installing the large glass barrier kits reference the large glass barrier kits installation manual. -
Page 6: Clearances And Installation
3 CLEARANCES AND INSTALLATION 3.1 Burner Clearances and Cavity Measurements Measurements Electricity Burner Model A [in] B [in] C [in] D [in] E [in] F [in] G [in] H [in] connection connection 115V, 4x0,25 NZ36B 60Hz, 9” 16” 26 ¾” 36” 1 ½”... - Page 7 -Materials used in areas designated as non-combustible must be rated as non-combustible per NFPA 220 Standard on Types of Building Construction, or reported as passing ASTM E 136, Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750 Degrees C. WARNING: common finishing materials not approved for use: - Paper-faced gypsum board (drywall) including Type X Fire Rated board is not a non-combustible material.
-
Page 8: Burner Clearances And Cavity Measurements For Multiple Burners
3.2 Burner Clearances and Cavity Measurements for Multiple Burners To create longer or custom size burners multiple burners can be placed together in the same cavity. Follow the chart below when building a cavity for a multiple burner arrangement. The C and D dimensions will be calculated from the total length of the burners placed together. -
Page 9: Placing The Burner
3.3 Placing the Burner Scan or click to watch the video instruction https://www.youtube.com/watch ?v=b5dETFNTBW4&feature=youtu. 3.4 Installing Technical Glass Scan or click to watch the video instruction https://www.youtube.com/watch ?v=b5dETFNTBW4&feature=youtu. -
Page 10: Recommended Burner Installations
3.5 Recommended Burner Installations Installation Requiring Technical Glass Single-Side, Left-Corner, Right-Corner and Three-Sided Installations Installation Requiring Large Glass Barrier Kit See-Through, Peninsula and Island Installations For these installations, the Large Glass Barrier Kit must be used. For additional information on installing the Large Glass Barrier Kit reference the installation manual for the Large Glass Barrier Kit. -
Page 11: Tv And Ac Installation
4 TV and AC INSTALLATION A TV can be installed above the burner enclosure by following the methods shown below. Single-Sided, Left-Corner, Right-Corner and Three-Sided Installations See-Through and Peninsula Installations min. 2 in min. 2 in If an air conditioning vent or fan is located near the burner the vent or fan must be positioned to blow away from the burner. -
Page 12: How To Operate The Burner
5 HOW TO OPERATE THE BURNER 5.1 Components Control LED OFF FUEL READY Control LED ON FUEL READY Control LED Blinking FUEL READY... -
Page 13: Filling Fuel
5.2 Filling Fuel a) If the tank is empty ( ) or you want to fill the fuel, open the fuel inlet (I), firmly connect the pump hose ‘A’ FUEL (click!) and power cable ‘B’ (II) ( ATTENTION! Do not attempt to refuel when the flame is ignited! FUEL b) Place the fuel container stably on the floor and insert the pump hose ‘C’... -
Page 14: Functions
5.3 Functions 5.3.1 Flame ignition The green LED ( ) indicates that the burner is ready to ignite the flame. READY Press and hold START for 3 seconds. The burner will beep, and the green LED will flash to indicate that the burner is starting (“beep”... -
Page 15: Maintenance
If put to mechanical stress the filament may break. NetZero is a distributor of these products, which are designed and manufactured by Planika SP S O O. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF AND SUPPLIED MANUALS.
