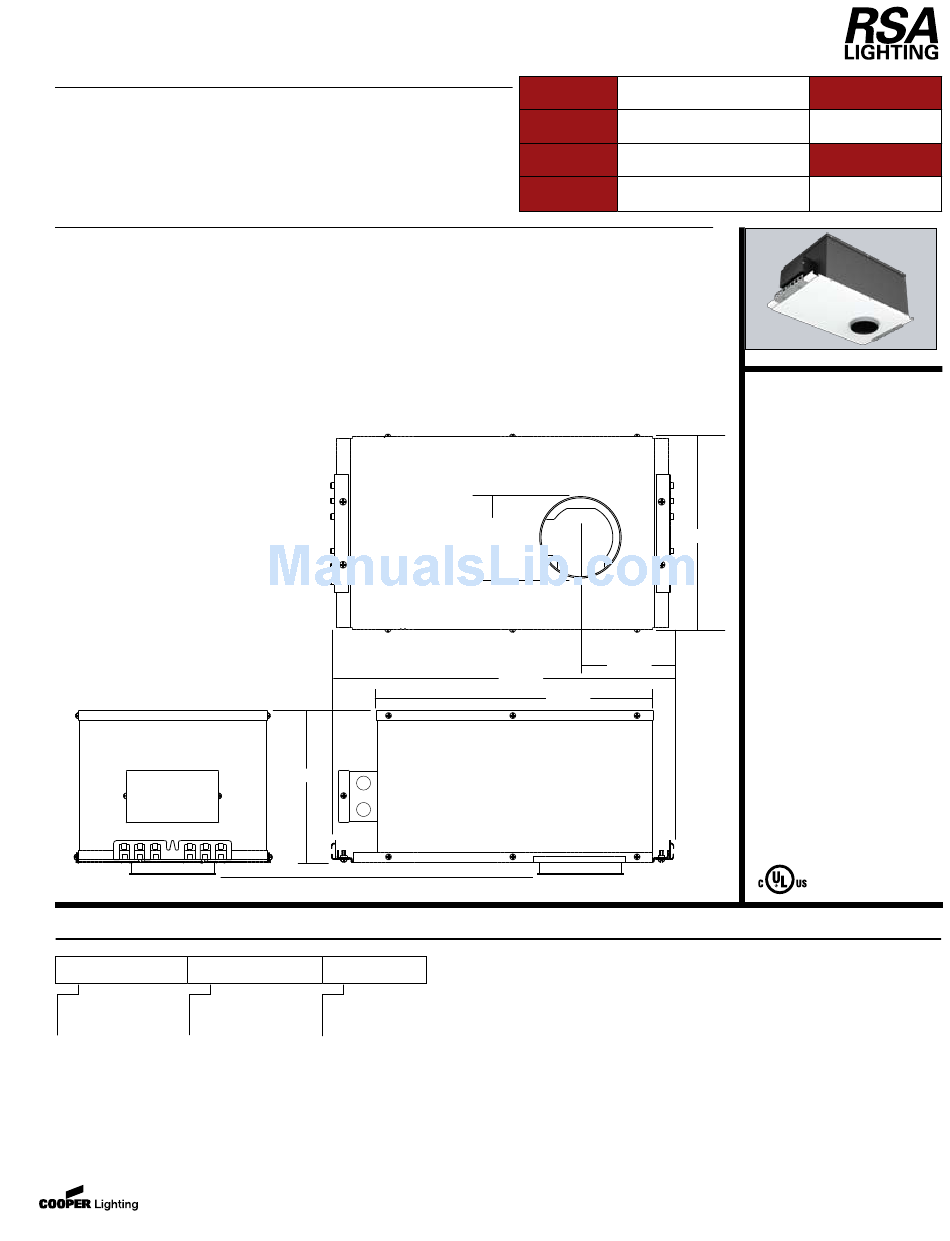

RSA Lighting MINI ACCURUS ACM502IC Specification Sheet

Insulated ceiling air tite i.c. housing for round trim

Advertisement

DESCRIPTION

New construction I.C. housing for Mini Accurus small aperture round
trims. (ACM5001, ACM5002, ACM5003, ACM5004).
For use in insulated ceiling I.C. applications. Housing may be covered on
all sides with insulation material.

SPECIFICATION FEATURES

A ...Housing

Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable plaster frame can
accommodate up to 1" ceiling thickness.

B ...System Protection:

Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.

C ...Electrical

Integral j-box and low voltage (12V)
transformer . 120V input, 12V output.
Junction box is U.L. listed for through
branch wiring. Includes seven 1/2 trade
size knockouts.

D ...Lamp

12V MR16 50 watts max.
(not included)
Internal rotation ring with locking
adjustment. Provides 360º rotation of
trim and secures original trim position
after relamping. "POSI-GRIP" bi-pin
lamp socket for firm, mechanical lamp
connection.

E ...Mounting

Hanger Bars included.
Ceiling Cut-Out: 3.63" dia.

ORDERING INFORMATION

ACM502IC
Housing
Transformer
ACM502IC =
ELC
=
Mini Accurus
MAG
I.C. Housing
for Round Trim
w/ Integral Transformer
www.cooperlighting.com
7.63"
0.5" - 1.0"
Voltage
Electronic
120
=
120 volts primary
Magnetic
277
=
=
277 volts primary
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
Ceiling
Cut-Out
3.63"dia.
5.00"
17.50"
14.25"
Type
Date
ACCURUS
ACM502IC
Insulated Ceiling
I.C. Housing
10.00"
for Round Trim
FOR 12V MR16 50 watts max.
MINI
Air Tite
rev. 091806
