ISEEE-CAMIR36
NAPCO
R
ISEEE-CAMIR36
333 Bayview Avenue
Amityville, New York 11701

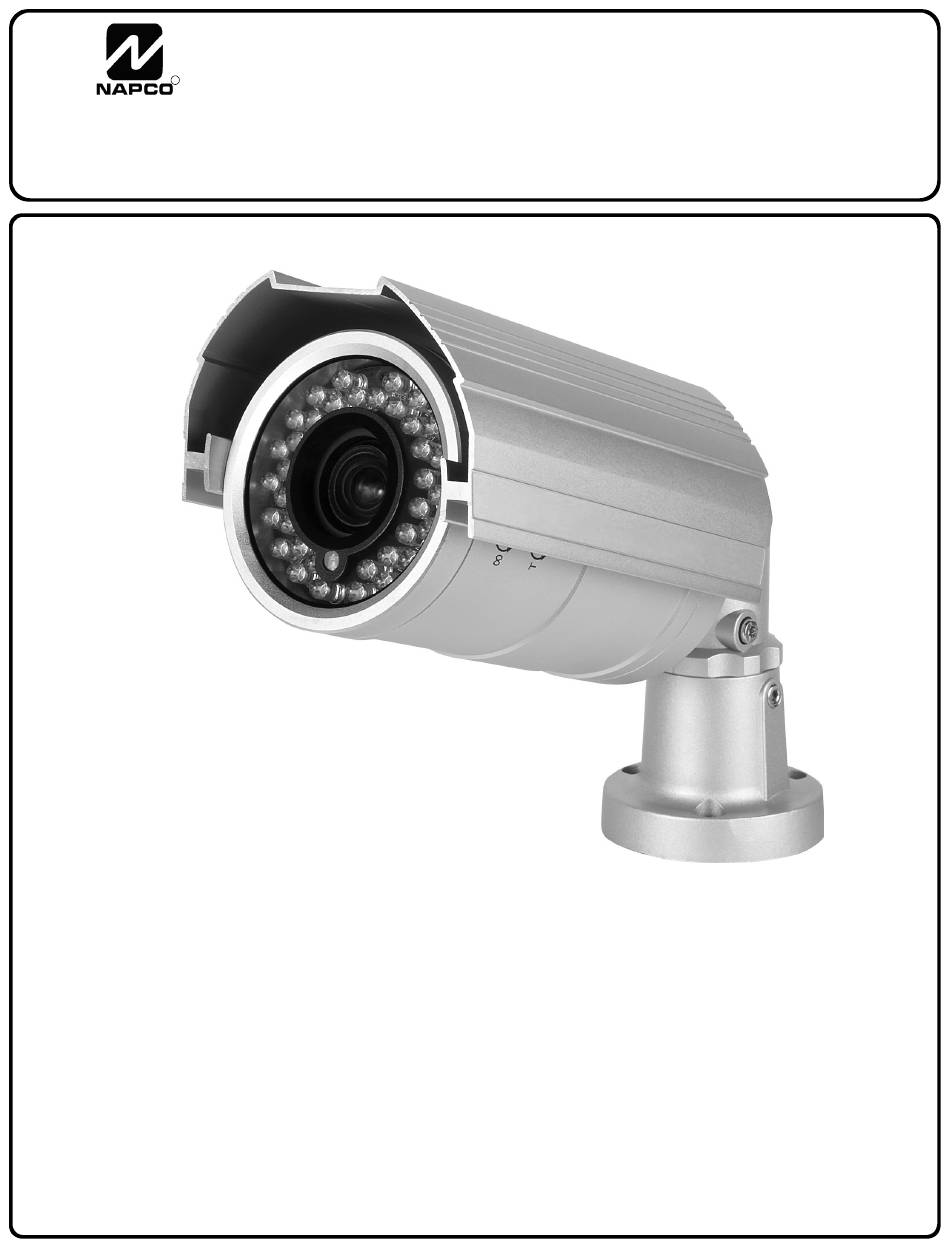

Varifocal IR Bullet Camera w/550 TV Lines
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440
Publicly traded on NASDAQ
Symbol: NSSC
OI339 9/07
© NAPCO 2007
• 1/3" Super HAD High Resolution True Day/Night Color CCD
• 550 TVL (Color) / 580 TVL (B/W)
• 3.8 ~ 9.5mm / F1.2 Externally Adjustable Varifocal Auto Iris Lens
• 36 IR LEDs with 120' Range
• Built-In Service Monitor Port
• 0 Lux Operation (IR LEDs On)
• IP66 Weatherproof Rated
• 12VDC / 24VAC Dual Voltage Operation
1
Advertisement
Table of Contents
Related Manuals for NAPCO ISEEE-CAMIR36
Summary of Contents for NAPCO ISEEE-CAMIR36
- Page 1 Publicly traded on NASDAQ Symbol: NSSC OI339 9/07 © NAPCO 2007 • 1/3" Super HAD High Resolution True Day/Night Color CCD • 550 TVL (Color) / 580 TVL (B/W) • 3.8 ~ 9.5mm / F1.2 Externally Adjustable Varifocal Auto Iris Lens •...
- Page 2 ISEEE-CAMIR36 RISK OF ELECTRIC SHOCK WARNING WARNING TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.
- Page 3 2. One Secondary Video Output Cable 3. One Sunshield 4. One Instruction manual 5. One Accessory Pack containing a. Allen Wrench b. Brass Screw Driver c. Sunshield Thumb Set Screw If any of the contents are missing, please contact the NAPCO Customer Help Desk immediately.
- Page 4 FEATURE HIGHLIGHTS EMPHASIS ON USER FRIENDLINESS The ISEEE-CAMIR36 features Sony HQ1 technology with high resolution of 550 horizontal TV lines and a weather resistant housing with easy external adjustment of camera features. Zoom and focus can be easily adjusted without opening the camera.
- Page 5 ISEEE-CAMIR36 ISEEE-CAMIR36 LAYOUT / FUNCTIONS 1. Protective Film over Front Glass • The blue protective film must be removed before use. 2. Focus / Zoom Screws • Adjust the angle of view by turning the zoom screw to "W' for a wider field of view, and to "T" for a narrower field of view.
- Page 6 ISEEE-CAMIR36 WIRING CONNECTIONS The camera should be powered by the following power supplies: 12VDC 1000mAmps or 24VAC 20VA, CSA Certified Class 2 Power Supply. For optimum video signal, use 95% copper shielded coax cable. Twisted pair or Category 5e cable may also be used with optional Passive Video Transceivers.
- Page 7 ISEEE-CAMIR36 SPECIFICATIONS Image Sensor 1/3" Interline transfer type color CCD (SONY) Effective Pixels 768H x 494V (380K pixels) Scanning System 525 Lines 2 : 1 Interlace Scanning Frequency 15.734KHz (H), 59.94Hz (V) Resolution 550 TV – Lines, 580 TV – Lines (B/W)
- Page 8 ISEEE-CAMIR36 333 Bayview Avenue Amityville, New York 11701 For Sales and Repairs, (800) 645-9445 For Technical Service, (800) 645-9440 Publicly traded on NASDAQ Symbol: NSSC © NAPCO 2007...
