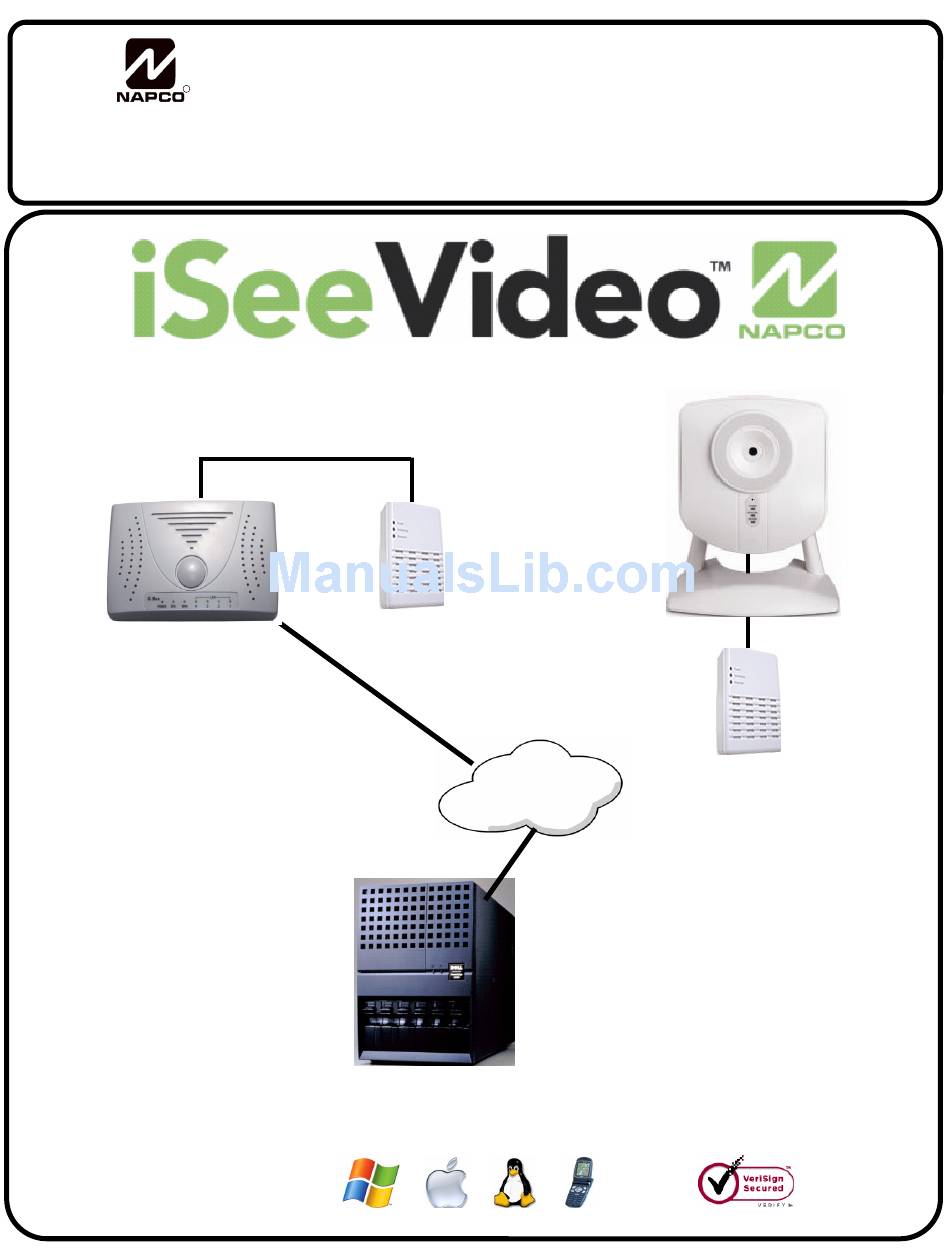

ISEE-VCAM1
ISEE-EOP-MOD200
G-BOX
IP Plug & Play Module
ISEE-EOP-MOD200
Internet
VideoAlert.net SERVER
Designed exclusively for use with NAPCO iSeeVideo VideoAlert.net Server
COMPATIBLE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iSeeVideo ISEE-VCAM1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NAPCO iSeeVideo ISEE-VCAM1

  • Page 1: Installation Guide

    Installation Guide For Technical Service, (800) 645-9440 Publicly traded on NASDAQ Symbol: NSSC WI1735A 6/08 © NAPCO 2008 ISEE-VCAM1 ISEE-EOP-MOD200 G-BOX IP Plug & Play Module ISEE-EOP-MOD200 Internet VideoAlert.net SERVER Designed exclusively for use with NAPCO iSeeVideo VideoAlert.net Server COMPATIBLE...
  • Page 2: Table Of Contents

    G-BOX LED Indicators ........6 Account Activation..........7 Adding Cameras to an Existing Account..10 Configuring Motion Detection......12 NAPCO Security Systems, Inc. 333 Bayview Avenue, Amityville, New York 11701 Setting a Motion Schedule .......13 For Sales and Repair, call toll free: (800) 645-9445 Viewing Stored Video........14...
  • Page 3: System Overview

    Overview of the iSeeVideo VideoAlert.net System he NAPCO iSeeVideo VideoAlert.net system allows remote video internet ISEE-VCAM1 monitoring of residential and light commercial properties. Its unique subscription-based account system provides the opportunity to realize recurring revenue from typical CCTV video installations, The system is...
  • Page 4: Installation Overview

    INSTALLING, ACTIVATING AND CONFIGURING THE ISEE-VCAM1 AND G-BOX The installation and activation of the VideoAlert system has been designed to be "plug and play", requiring no special training or tools and no knowledge of TCP/IP or networking for typical installations. The primary installation steps de- picted below are covered in detail on the following pages: Install the ISEE-VCAM1 cameras and ISEE-EOP MOD200 modules, (page 5) Install the G-BOX and its ISEE-EOP MOD200 module.
  • Page 5: Installing The Isee-Vcam1

    INSTALLING THE ISEE-VCAM1 • The ISEE-VCAM1 camera is designed for table top, wall or ceiling mounting. Install bracket at desired location and attach the camera body to bracket. Wall mount Table top mount Ceiling mount • Plug camera power cable into and CAT5 into jacks.
  • Page 6: Connecting To G-Box & Internet

    WIRE THE G-BOX CONNECT THE G-BOX TO ROUTER 1. Record the ISEE-VCAM1 Security Code (bottom label, example: SC106763) which will be needed in the subsequent registration steps: 2. Power-down existing network devices (i.e. Cable Modem, Router, etc.). 3. Connect the Cable or DSL Modem to the G-BOX WAN port. 4.
  • Page 7: Account Activation

    Activating the VideoAlert.net account Once the ISEE-VCAM1 and G-BOX have been completely wired and powered up, the VideoAlert.net account is ready to be activated. These activation steps, include the branding of the camera to your Company's personalized VideoAlert.net web page, registration of the camera and the adding of Users to the account.
  • Page 8 3. Create Subscriber Account Now Click to bring up the Subscriber Details screen, where the basic account information is entered. Enter your name, address, telephone number and other information in the appropriate fields as shown in the im- age at right. The User ID and Password entered at this step will be- come the Master User of the account and will be the only User to have administrative privileges (the ability to...
  • Page 9 7. My Account Click My Account to view account information. From this screen, you can update your account informa- tion (My Information), and add Users to the account. To add a new User to the account, click Add a New User.
  • Page 10: Adding Cameras To An Existing Account

    Adding or Replacing cameras on an existing account. Once the camera has been registered and the account has been created, additional cameras, if any may be added to the account through the following steps: 1. Return to the www.videoalert.net login screen and click the NEW ACTIVATION button.
  • Page 11 4. The next screen that appear will allow the regis- tration of the camera to the correct account. A pull-down menu will appear, listing all accounts assigned to the Dealer ID entered in the branding screen. Select the correct account from the list by clicking it and then click Next to continue.
  • Page 12: Configuring Motion Detection

    Configuring the ISEE-VCAM1 for Motion Detection (Optional) Once the ISEE-VCAM1 and G-BOX have been completely wired and powered up, and the account has been activated, the ISEE-VCAM1 may be configured. The next several pages will guide you through the on-line configuration process. Note: If the ISEE-VCAM1 is only to be used for live viewing and there are no plans to trigger video mo- tion events to the VideoAlert.net server, configuration is not required.
  • Page 13: Setting A Motion Schedule

    ADVANCED FEATURES (OPTIONAL) The ISEE-VCAM1 supports pixel-based motion detection which allows the camera to send motion triggered video clips to the VideoAlert.net video server upon motion in a selected area. To configure the camera for motion detection, enter Video Motion Set- tings mode my clicking the Video Motion icon and the screen Video Motion Settings screen will appear.
  • Page 14: Viewing Stored Video

    Camera Time & Date Use drop down menu to set the time and date of the camera(s). Enable Time Stamp To enable a time and date stamp on the live and saved images, click the check box next to Enable Time Stamp.
  • Page 15: Setting Up The Eop Modules

    SETTING UP THE EOP MODULES The ISEE-EOP MOD200 has three LED indicators on the front panel that display the EOP status. COLOR STATE STATUS No power Power Blue Normal operation Blue EOP network active - at least one other device detected Blue Flashing Data receive rate greater than 80Mbps...
  • Page 16 Creating a secure EOP network: The EOP modules are designed for plug and play installation - once two or more modules are plugged in they will begin communicating as indicated by the flashing PLC Link LED. However, this network is not yet secure.
  • Page 17: Frequently Asked Questions

    4. What does this G-BOX actually do? The NAPCO G-BOX (Patents Pending), is an internet interface accessory that allows the "Plug & Play" installation of the GATEWAY. Many IP devices require the opening of a port on a router (port forwarding) to allow a connection from outside the firewall.
  • Page 18: Troubleshooting

    Yes – the Dealer has complete control over the account – The Dealer can terminate one user and re-program the ISEE-VCAM1 to a new user. NAPCO iSeeVideo Troubleshooting 1. I have DSL PPPoE service with a separate Modem and Router. When I install the G-BOX & ISEE-VCAM1, I lose the Internet connection.
  • Page 19 the primary router may downgrade the performance or quality of the connection since is not designed to work efficiently with the ISEE-VCAM1. This performance can be improved by entering a PPPoE Username and Password (see Trou- bleshooting #9) or by configuring the modem for "Bridge Mode"; (see Troubleshooting #10). 1a.
  • Page 20: Napco Limited Warranty
