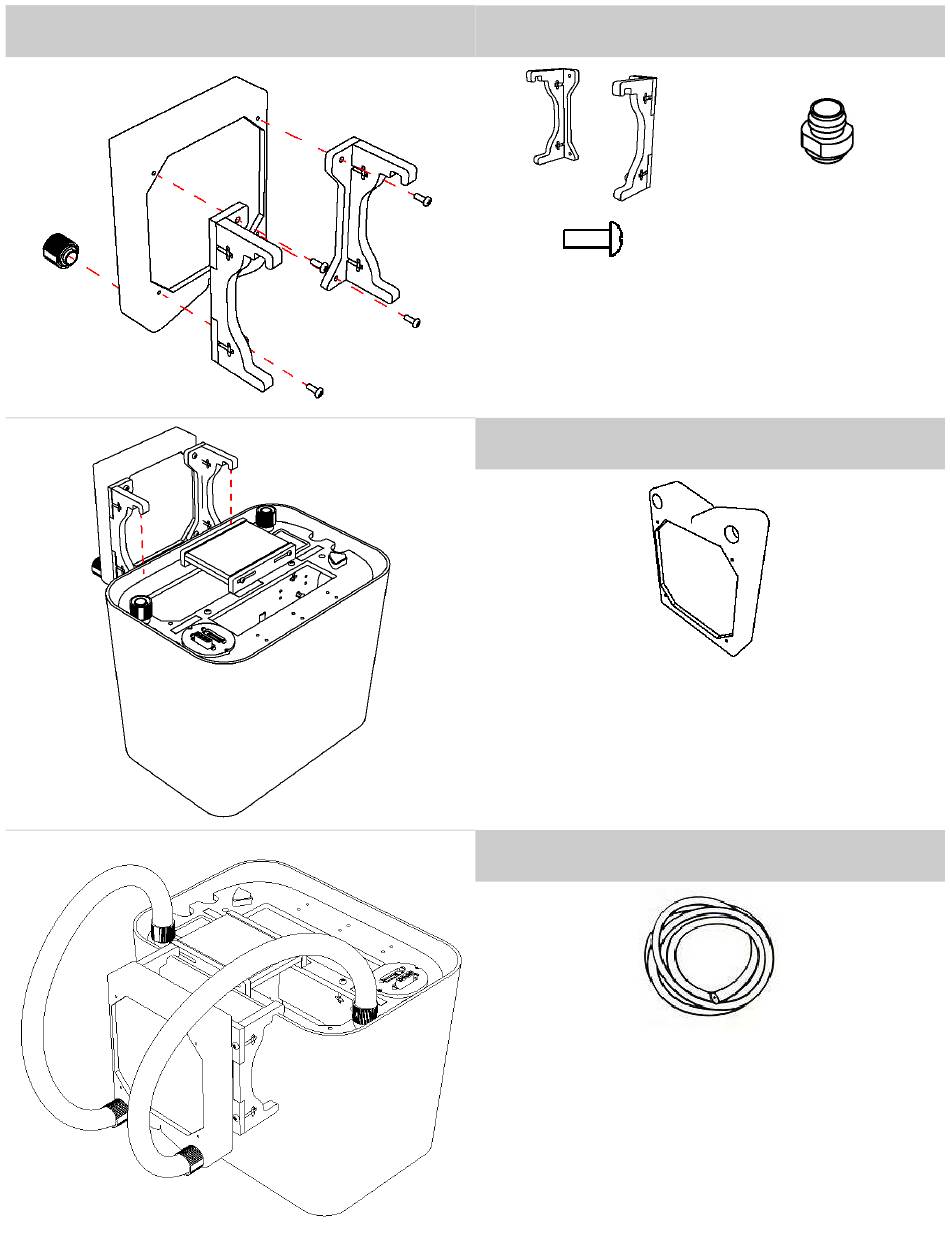

120mm Radiator Installation
Step 1:
Screw the radiator onto the acrylic mounts making sure that
the hooks on the mount are on the opposite side as the barb
fittings.
Install the two straight barbs onto the radiator.
Step 2:
Once the main tray has been installed into the tank, drop the
radiator onto the lip of the tank so that the barbs are facing
down and away from the system
Step 3:
Connect the radiator to the two barbs on the main tray.
Be sure to use long lengths of tubing to ensure that the tub-
ing does not kink.
Before running the system, install the fan onto the outside of
the radiator with it blowing through the radiator towards the
system.
x2
x4
3/8" - No. 6-32
