Hard Drive Installation

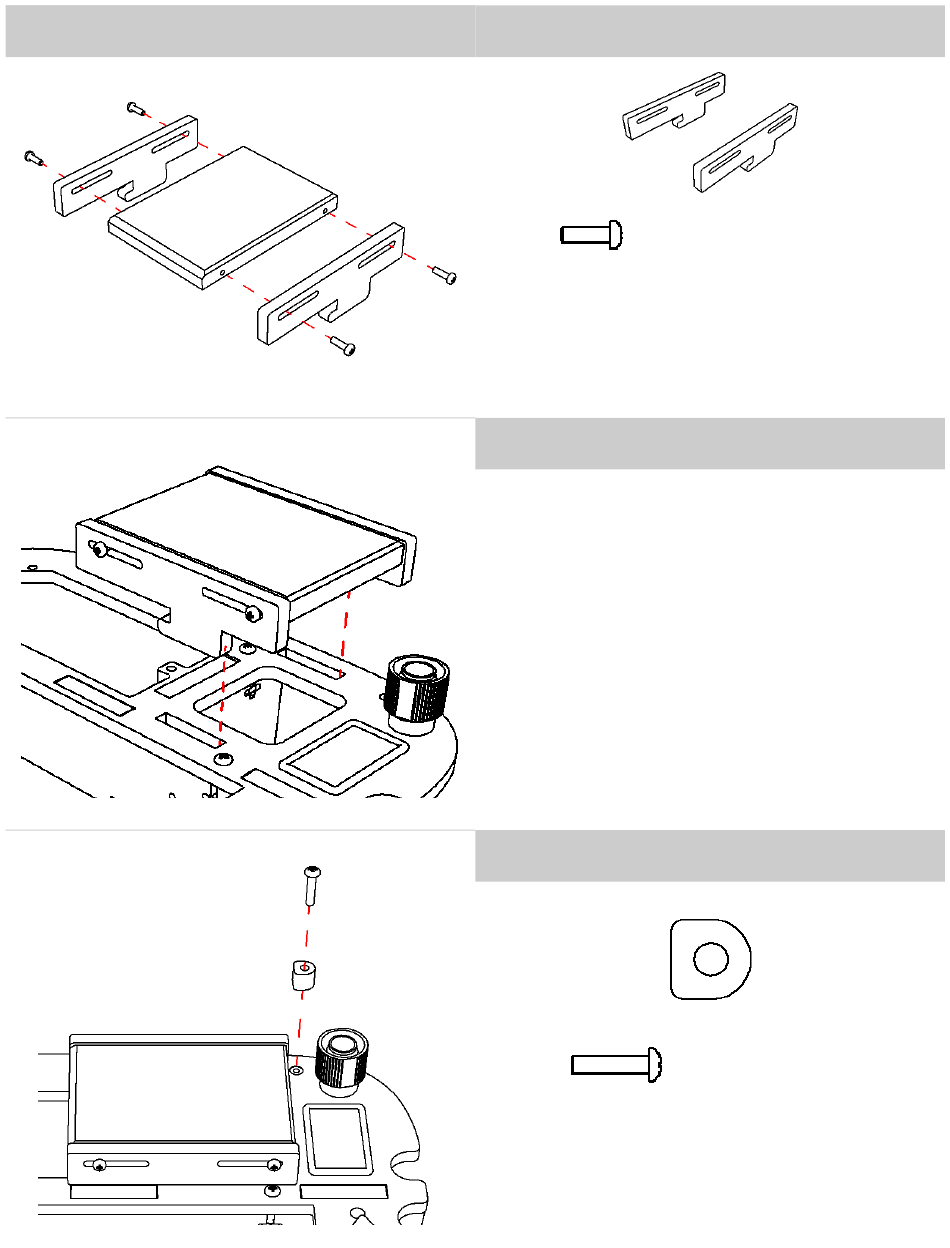

Step 1:
•
Using the four screws, install the hard drive into the tray.
The ports should face the same direction as the front of the
hooks
•
In the image above, the ports would be facing towards the
bottom left.
Step 2:
•
Drop the assembly into the acrylic tray and push it forward
so that the hooks hold the drive down.
Step 3:
•
Install the locking spacer with the screw to prevent the
drive from sliding back. This secures the drive in place.
x4 10mm - M3x.5
x1 5/8" - No. 6-32
