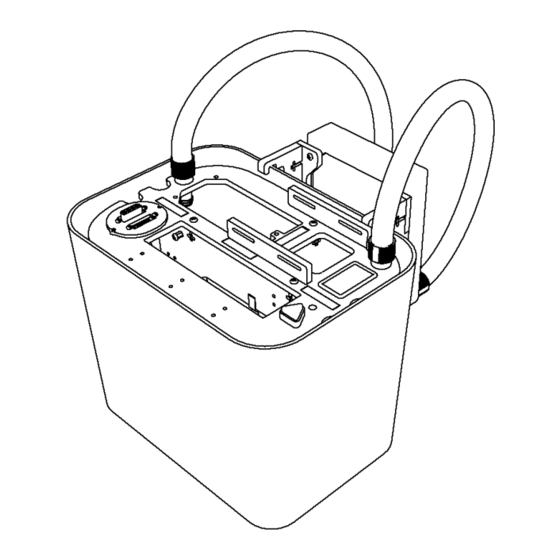

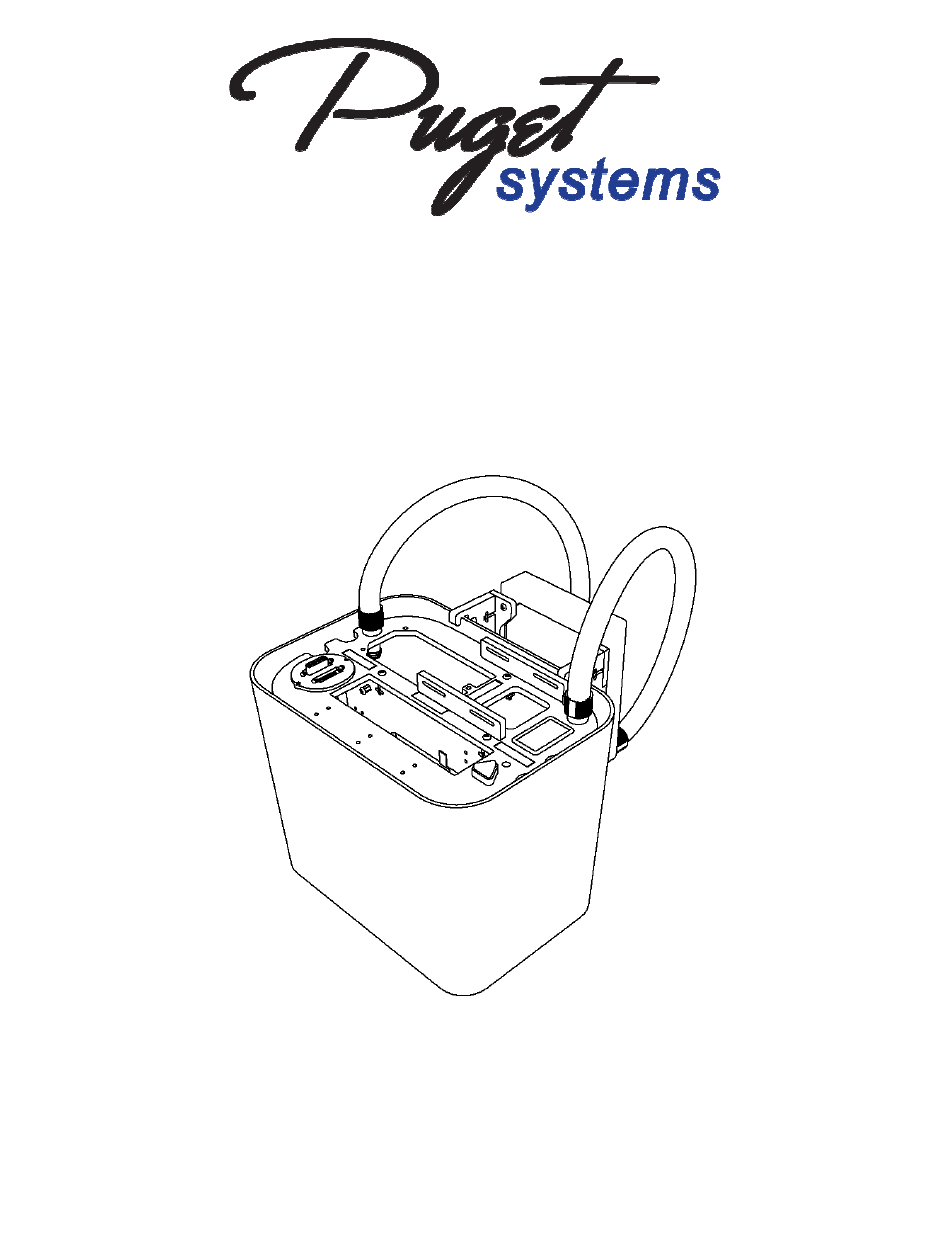

Aquarium DIY Kit
Mini ITX Version 1
Assembly Instructions
***WARNING***
Submerging your hardware in mineral oil will void your warranty. Do this project
only at your own risk. Puget Systems is not liable for any hardware problems or
damage to your personal property. Mineral oil is very difficult, if not impossible to
clean from your components once they are submerged.
Please be sure to inspect your aquarium parts for shipping damage before installa-
tion. In particular, we recommend filling the acrylic tank with water and checking
for leaks before proceeding.
Advertisement
Summary of Contents for Puget Aquarium DIY Kit Mini ITX
- Page 1 Submerging your hardware in mineral oil will void your warranty. Do this project only at your own risk. Puget Systems is not liable for any hardware problems or damage to your personal property. Mineral oil is very difficult, if not impossible to clean from your components once they are submerged.
- Page 2 Read Before Building Your Aquarium PC Test your hardware before submerging. The last thing you want is to find out you have a bad stick of memory once it is already covered in oil! Make sure to test everything thoroughly -- it will save you a lot of headache in the future. Check that none of the power/data cables use rubber insulation.
-
Page 3: Included Hardware
Included Hardware *Images not to scale Mini ITX Tray Contents (Pre-assembled) • Acrylic Tray • Koolance PMP-300 Pump • SATA & Molex Pass-through • Power Switch • 2x Straight Barbs • 2x Panel Mount Barbs • 1x Angled Barb • Thermal Display Cooling Components 2x Straight Barbs... - Page 4 Items You May Need (Not Included) Tools Phillips Screwdriver Scissors Adjustable Wrench Zip Ties Miscellaneous Bubble Bar, Tubing, Pump & Mineral Oil Aquarium Rocks Cleaning Supplies & Tools Flow Valve Available at your local hard- Available at your local pet Also available at your local Mineral oil is messy! Make ware store, farm supply store,...
-
Page 5: Hard Drive Installation
Step 1: Hard Drive Installation 10mm - M3x.5 • Using the four screws, install the hard drive into the tray. The ports should face the same direction as the front of the hooks • In the image above, the ports would be facing towards the bottom left. - Page 6 Step 1: 120mm Radiator Installation 3/8” - No. 6-32 • Screw the radiator onto the acrylic mounts making sure that the hooks on the mount are on the opposite side as the barb fittings. • Install the two straight barbs onto the radiator. Step 2: •...
