Summary of Contents for FART PRODUKT SCREEN Premium

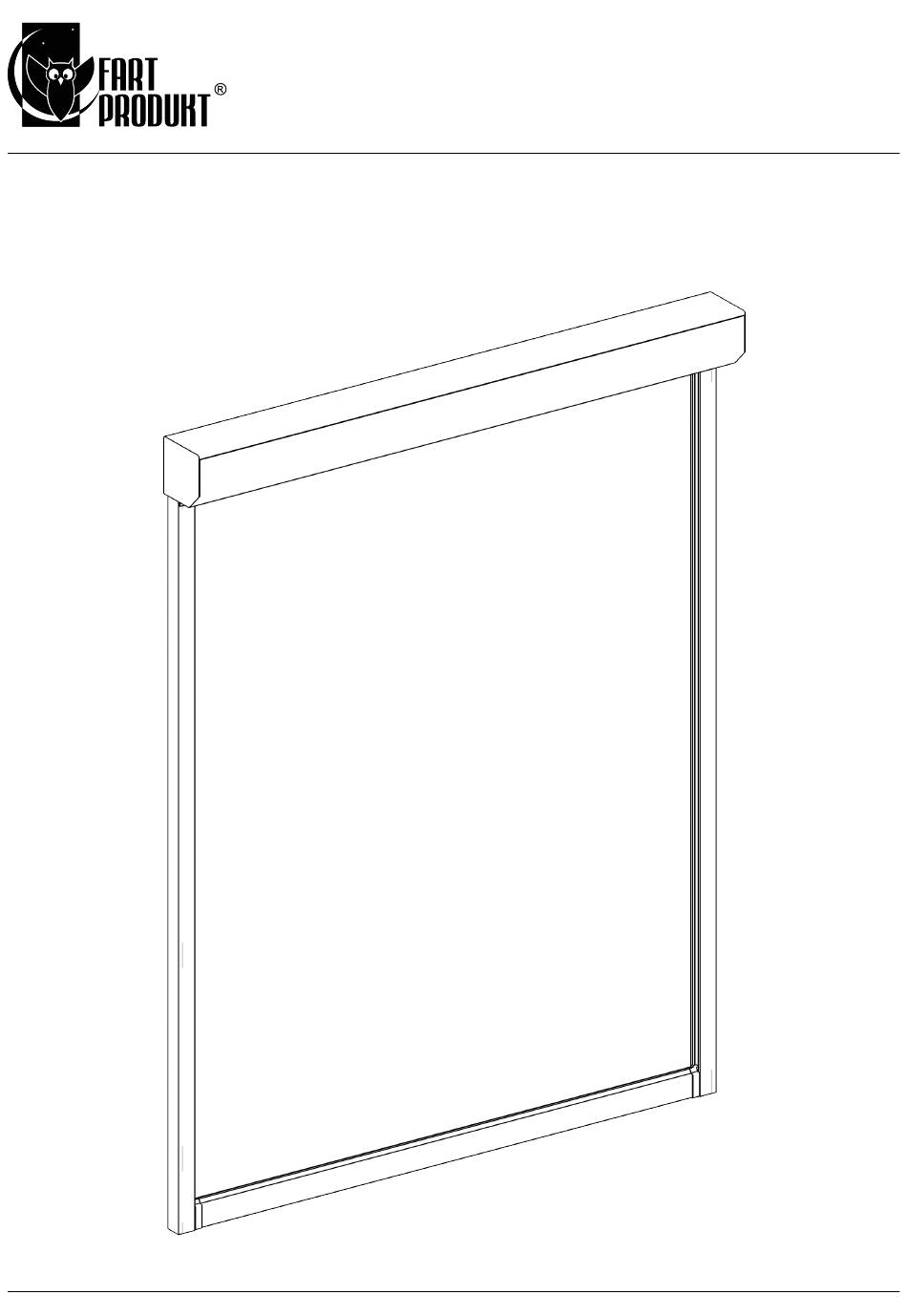

- Page 1 Installation instruction SCREEN Premium, guidance - bottom beam in the guides 19.08.2022...
- Page 2 SCREEN Premium, guidance - bottom beam in the guides The delivery should include: 1. Cassette with cover. 2. Sideguides.
- Page 3 SCREEN Premium, guidance - bottom beam in the guides Assembling the cassette and guides. 1. Insert the cassette into the guides. 2. Twist the cassette and the guides together. 4,8 x 13 mm...
- Page 4 SCREEN Premium, guidance - bottom beam in the guides Cassette mounting clip (125 mm cassettes only). By cassettes 125 mm high and ≥ 105 mm wide, the cassette mounting clips can be used. Clips facilitate installation and reduce the load on the cassette brackets, and the box can be hung on them independently of the brackets.
- Page 5 SCREEN Premium, guidance - bottom beam in the guides Mounting the SCREEN blind (remember to connect the power cable!). Installation of guides with PVC clips. The clips should be screwed with the use of appropriately selected mounting accessories. 100 mm 100 mm ≤...
- Page 6 SCREEN Premium, guidance - bottom beam in the guides Mounting the SCREEN blind (remember to connect the power cable!). Installation of guides with using of the screws. The guides should be screwed with the use of appropriately selected mounting accessories.
- Page 7 Fart Produkt Sp. z o. o. Sp. k. tel. +48 56 623 55 77 e-mail: export@fartprodukt.pl...
