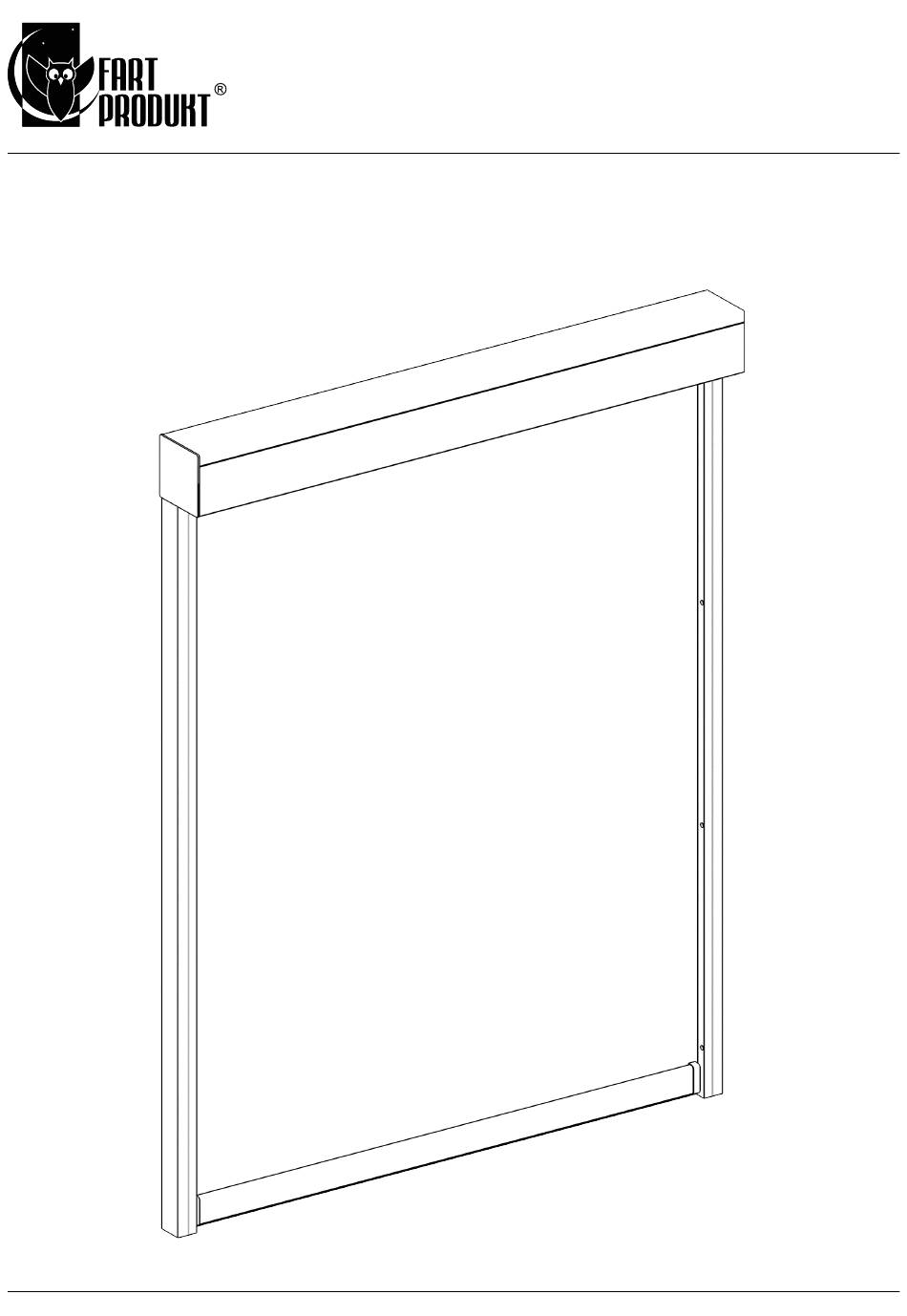

- Page 1 Installation instruction Standard and Basic SCREEN, ZIP guidance 19.08.2022...
- Page 2 Standard and Basic SCREEN, ZIP guidance The delivery should include: 1. Cassette with cover. 2. Sideguides. A. profile of the guide C. guiding Construction of a 3-part guide in a ZIP-System: ZIP insert B. revision profile of the guide A. profile of the guide B.
- Page 3 Standard and Basic SCREEN, ZIP guidance Assembling the cassette and guides. 1. Before assembling the cassette and guides, disassemble the revision profiles of the guides and remove the ZIP guide inserts. 2. Insert the cassette into the guides.
- Page 4 Standard and Basic SCREEN, ZIP guidance Mounting the SCREEN blind (remember to connect the power cable!). Installation of guides with using of the screws. The guides should be screwed with the use of appropriately selected mounting accessories. They already have the mounting holes prepared in accordance with the selected mounting type (frontal / lateral mounting).
- Page 5 Standard and Basic SCREEN, ZIP guidance Preparing of the ZIP system and putting the guides together. After slipping on the guides, lower the fabric to insert it into the guiding ZIP insert. about 150 mm After lowering the fabric, insert it into the guiding ZIP insert and place the insert in the guide. Then screw the guide's revision profile to the guide.
