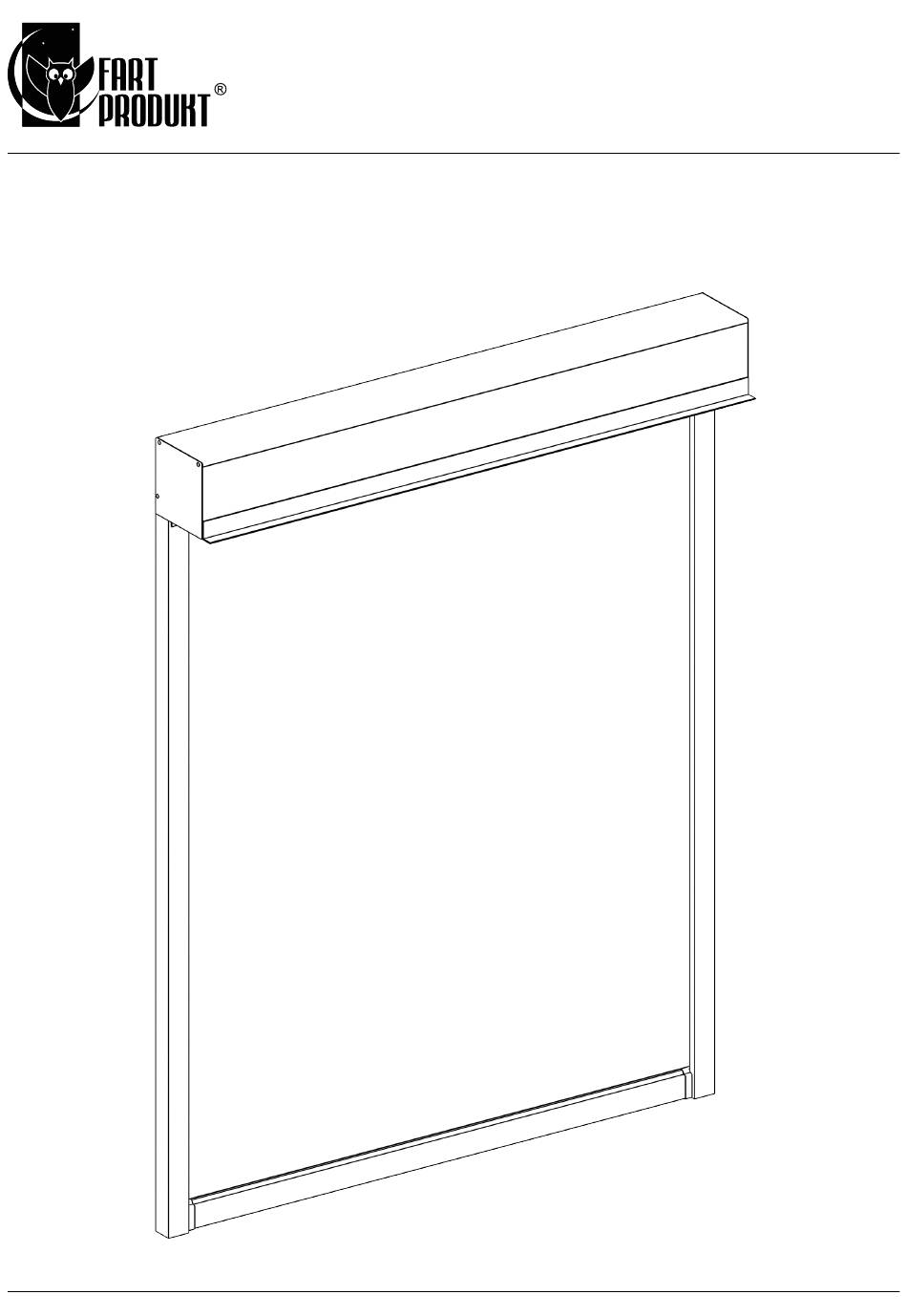

- Page 1 Installation instruction SCREEN Premium, flush mounting, partial building-over, ZIP guidance 19.08.2022...
- Page 2 SCREEN Premium, flush mounting, partial building-over, ZIP guidance The delivery should include: 1. Cassette with cover. 2. Sideguides. A. profile of the guide C. guiding Construction of a 3-part guide in a ZIP-System: ZIP insert B. revision profile of the guide A.
- Page 3 SCREEN Premium, flush mounting, partial building-over, ZIP guidance Assembling the cassette and guides. 1. Before assembling the cassette and guides, disassemble the revision profiles of the guides and remove the ZIP guide inserts. 2. Insert the cassette into the guides.
- Page 4 SCREEN Premium, flush mounting, partial building-over, ZIP guidance Cassette mounting clip (125 mm cassettes only). By cassettes 125 mm high and ≥ 105 mm wide, the cassette mounting clips can be used. Clips facilitate installation and reduce the load on the cassette brackets, and the box can be hung on them independently of the brackets.
- Page 5 SCREEN Premium, flush mounting, partial building-over, ZIP guidance Mounting the SCREEN blind (remember to connect the power cable!). Installation of guides with using of the screws. The guides should be screwed with the use of appropriately selected mounting accessories. They already have the mounting holes prepared in accordance with the selected mounting type (frontal / lateral mounting).
- Page 6 SCREEN Premium, flush mounting, partial building-over, ZIP guidance Preparing of the ZIP system and putting the guides together. After slipping on the guides, lower the fabric to insert it into the guiding ZIP insert. about 150 mm After lowering the fabric, insert it into the guiding ZIP insert and place the insert in the guide.
- Page 7 Fart Produkt Sp. z o. o. Sp. k. tel. +48 56 623 55 77 e-mail: export@fartprodukt.pl...
