Power Grids

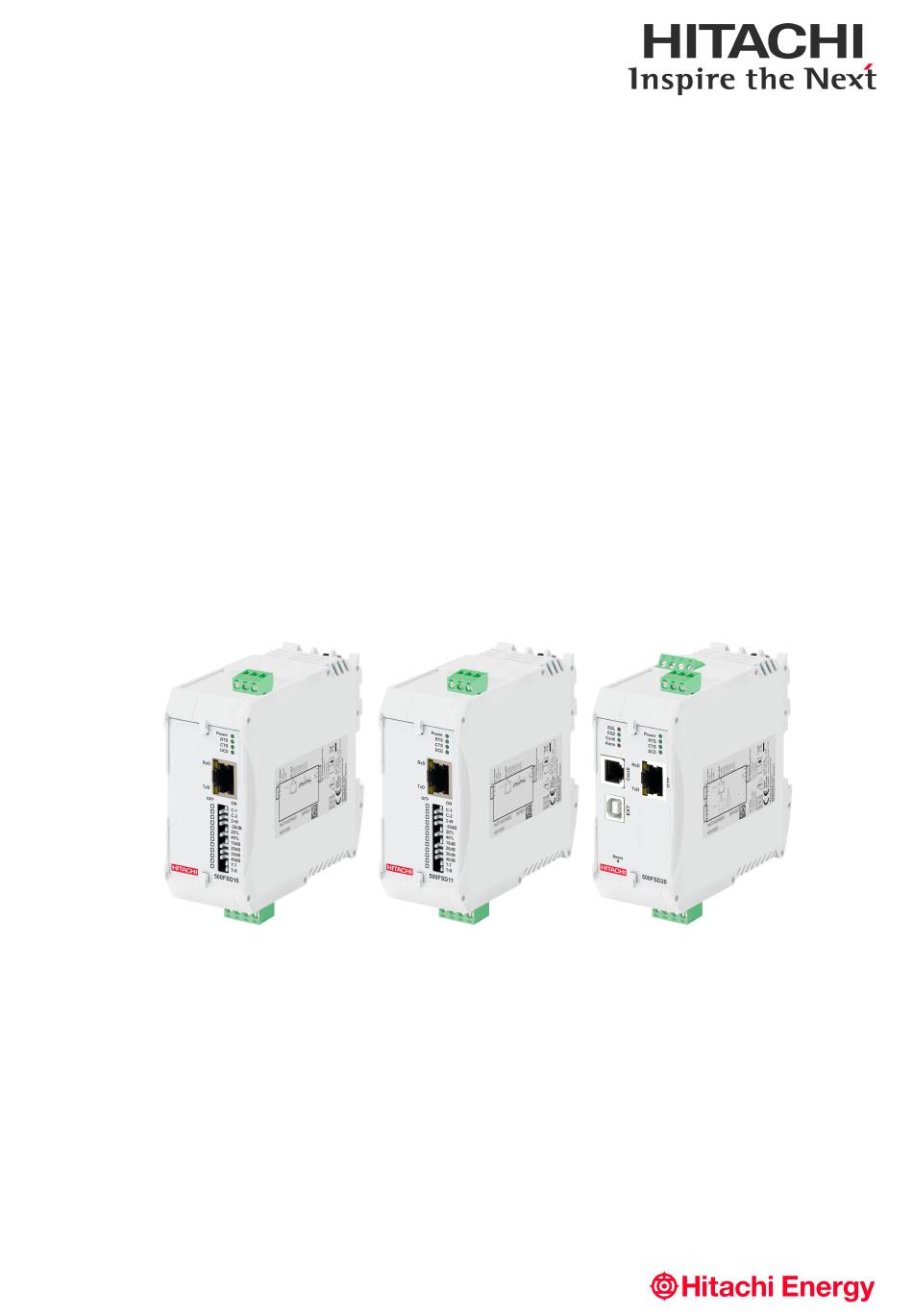

EDS500 series - FSK modems
Part 2: Functions
Manual Release 2

Advertisement

Table of Contents
loading

Related Manuals for Hitachi EDS500 Series

Summary of Contents for Hitachi EDS500 Series

  • Page 1 Power Grids EDS500 series - FSK modems Part 2: Functions Manual Release 2...
  • Page 2 Revision Revision Document identity: 1KGT151043 V001 1 Revision: Date: Changes: 08/2019 Initial version 08/2021 Update for MOPS 1.2.1 04/2023 Disclaimer Corrections of 500FSD20 cli commands 1KGT151043 V001 1...

  • Page 3: Table Of Contents

    Contents Contents Introduction..........................5 About the Manual EDS500 series - FSK modems............5 References........................5 Functions..........................7 Configuration methods....................7 2.1.1 Configuration via the serial interface.............7 2.1.2 Configuration via configuration stick..............7 Handling of the Command Line Interface (CLI)............7 2.2.1 Command input..................... 7 2.2.2...
  • Page 4 Contents 2.9.12 DCD alarm (carrier monitoring)..............28 2.9.13 Polarity assignment - V.24 Signals..............29 2.10 Serial interfaces......................32 2.11 Firmware Update......................32 Glossary..........................33 1KGT151043 V001 1...

  • Page 5: Introduction

    Description of the functions 1KGT151044 Part 3: Command reference Description of the command line inter- face Table 1: Parts of the Manual EDS500 series - FSK modems References Individual Ident EDS500 series Individual hardware data sheets of all devices Hardware data sheets...
  • Page 6 References Introduction 1KGT151043 V001 1...

  • Page 7: Functions

    With a configuration cable the device can be connected to the serial interface of a PC. Ready-made cables to connect to a 9-pin Sub-D-plug are available at Hitachi Energy. For operation of the command console (command line interface, CLI) use a common terminal program (e.g.

  • Page 8: Show Help For Input Format

    Handling of the Command Line Interface (CLI) Functions Example for show interface m o d e m > s h o w i n t e r f a c e < s h o w i n t e r f a c e > I n t e r f a c e S u m m a r y : I n t e r f a c e A d m i n S t a t e...

  • Page 9: Shortcuts To Input Commands Quicker

    Functions Handling of the Command Line Interface (CLI) The list of input options is shown after entering the question mark (?) or pressing the tab key. Command list at the top hierarchy level s w i t c h > ? e n a b l e e x i t s h o w m o d e m >...

  • Page 10: Operation Modes - View (Login) And Configuration (Enable)

    Handling of the Command Line Interface (CLI) Functions Listing for concatenated command input m o d e m # s h s ? s t a r t u p - c o n f i g s t i c k - c o n f i g s y s t e m m o d e m # s h s 2.2.5 Operation modes - View (login) and configuration (enable)

  • Page 11: Using The Command Stack

    Functions Handling of the Command Line Interface (CLI) The symbol # indicates the operation mode configuration. Entering and exiting operation mode configuration m o d e m > e n a b l e < e n a b l e > m o d e m # m o d e m # d i s a b l e <...

  • Page 12: Automatic Session Termination

    User authentication Functions A D V I C E Danger of an unreachable system due to different character encoding. When accessing the system the code page used by the accessing program has to be ISO 8859-15 (Latin-9). Due to different character encoding of diacritical characters on login, different code pages may lead to falsely interpreted and, hence, invalid passwords.

  • Page 13: Show Configurations

    Functions Loading and saving a configuration • Quick exchange of a device in case of a failure without new configuration • Applying a standard configuration • Backup of a device configuration on portable hardware. An EDS500 500FSD20 modem detects the configuration stick automatically during operation. If the configuration stick is plugged into the device at power on then the configuration is loaded from the stick and copied to the internal configuration memory.

  • Page 14: Default Configuration And Reset Of A Device

    Loading and saving a configuration Functions "Tab. 2: Modification of configuration with and without plugged-in configuration stick" shows which configuration is modified by which action. Action Current device Internal startup Configuration configuration configuration stick (stick-con- (running-config) (startup-config) fig) 1. Delivery State 2.

  • Page 15: Cold Start And Warm Start

    Functions Loading and saving a configuration 2.4.4.1 Method 1: Reset with command Command to restart a device with the default configuration. < r e l o a d - d e f a u l t - c o n f i g > 2.4.4.2 Method 2: Reset during startup of device During start-up the key i may be pressed once on console console0 to signal to ignore the start up...

  • Page 16: Trigger Device Warm Start With Command

    Cold start and warm start Functions 2.5.2 Trigger device warm start with command Commands for restart of device < r e l o a d > < r e l o a d - d e f a u l t - c o n f i g > Host name and description Besides a host name further metadata can be set to describe EDS500 500FSD20 modems to grant unique identification and easy location in the network.

  • Page 17: Display Of The System Description

    Functions Host name and description 2.6.3 Display of the system description Commands to display the system descriptions < s h o w s y s t e m > Example for show system m o d e m # s h o w s y s t e m <...

  • Page 18: Processing Functions

    Processing Functions Functions Alarm Stage Enabled Config- Reason Command urable default value) No I2C avail- Alarm Alarm, if I2C bus not able available - No configu- ration saving, no data communication Codec failure Alarm Alarm, if Codec not accessible - No data communication Receiver clip- Warning...
  • Page 19 Functions Processing Functions • Additionally, further channels can be realized by utilization of center frequencies deviating from the CCITT recommendation. Operating modes: • two-wire or four-wire link • point-to-point connection or • multi-drop line with staggering • duplex or half-duplex mode on two-wire or four-wire links The transmission level can be set as a function of: •...

  • Page 20: Settings

    Settings Functions Settings 2.9.1 Bit rate The bit rate for transmitter and receiver can be set independently of each other in the range from 50 to 600 bps without having to observe the filter selectivity setting. For 1200 bps this is only possible with setting high selectivity.
  • Page 21 Functions Settings Setting Commands Frequency deviation: +/- 120 Hz <set interface fsk0 tx deviation 120> <set interface fsk0 rx deviation 120> Center frequency (min: 600 Hz; max: 3000 Hz; 6 <set interface fsk0 {rx | tx} frequency {600 | 1080 channels) | 1560 | 2040 | 2520 | 3000}>...

  • Page 22: Transmission Level

    Settings Functions Baudrate Frequency deviation ΔF 25, 30 45, 60 90, 120 190, 200, 210, 240 1200 300, 400 2400 400, 800 Table 14: Possible configuration of frequency deviation per baudrate Additionally, with the command < s e t i n t e r f a c e f s k 0 { r x | t x } f r e q u e n c y F >...

  • Page 23: Receiving Level

    Functions Settings Number of transmit channels Transmit Level -6 dBm -9 dBm -12 dBm -13.8 dBm -15.6 dBm 10-13 -17.2 dBm 14-18 -18.6 dBm 19-24 -19.8 dBm 25-32 -21.1 dBm Table 16: Transmitter level depending on the number of transmitter channels 2.9.4 Receiving level The reception gain is set via the command line interface (CLI).

  • Page 24: Transmitter Mode - Voltage Source Or Current Source

    Settings Functions 2.9.7 Transmitter mode - voltage source or current source The transmitter can work either as voltage or current source. The voltage source has an internal resistance of 600 Ω. The current source has an infinitely high internal resistance. Commands to set Transmitter mode - voltage source or current source <...

  • Page 25: Transmitter Predistortion

    Functions Settings Multidrop mode In multi-drop communication additional modems can be added ("staggered") between the two modems at the end of the line, i.e. they are connected in parallel to the line with high impedance. It is a high-resistance connection. See Fig. 7 and Fig. 9. The transmitter of a staggered modem should be configured as current-source.
  • Page 26 Settings Functions Commands to set transmitter predistortion < s e t i n t e r f a c e f s k 0 e q u a l i z e r c o m p e n s a t e { h i g h - p a s s | l o w - p a s s } >...

  • Page 27: Switching Off The Transmitter And Full-Duplex/ Half-Duplex Mode

    Functions Settings 7 Evaluate the test result – The flash frequency should be assessed and compared to the basic flash frequency which occurred when the predistortion was switched off. – If the flash frequencies indicate only a little difference between the results of two measurements, the lower predistortion should be set.

  • Page 28: Quality Check

    Settings Functions Commands to set automatic transmitter switch off < s e t i n t e r f a c e f s k 0 a u t o - o f f { 0 - 1 0 0 s | a u t o } > The carrier and therefore monitoring too are switched off if RTS=OFF within the time window.

  • Page 29: Polarity Assignment - V.24 Signals

    Functions Settings 2.9.13 Polarity assignment - V.24 Signals The 500FSD20 modem permits the free assignment of the V.24 signal definition for frequency keying. This can be set individually for each signal. In addition, the zero position of the receiver can be set.
  • Page 30 Settings Functions Data table Dimen- sion norm. selec- msec tivity Isochronous distortion high selectiv- 8-13 7-11 18-24 norm. selec- 7-11 18-24 tivity Channel high selec- minimum msec delay time tivity maximum msec RTS = ON normal minimum msec selectivity maximum msec DCD = ON Channel...
  • Page 31 Functions Settings NF2a < s e t i n t e r f a c e NF2b 500LTD01 two-wire- f s k 0 t x m o d e transmission line c u r r e n t - s o u r c e > Receive NF1a Transmit...

  • Page 32: Serial Interfaces

    Serial interfaces Functions 2.10 Serial interfaces The serial interfaces of EDS500 FSK modems are laid out as RJ-12 jack (6P6C) (see EDS500 FSK Modems Manual - Part 1: Serial interface (Con0))and RJ-45 jack (8P8C) (see EDS500 FSK Modems Manual - Part 1: Serial interface to DTE (X2)). The default value for the behaviour of the interfaces is according to ITU-T V.24 / EIA RS-232.

  • Page 33: Glossary

    Glossary Glossary CCITT International Telegraph and Telephone Consultative Committee (Comité Consultatif International Téléphonique et Télégraphique) Command Line Interface Clear to Send Decibel Data Carrier Detect Data Communication Equipment Data Terminal Equipment Frequency-shift keying HTTPS Hypertext Transfer Protocol Secure ITU-T International Telecommunication Union - Section Telecommunication Standardization Light Emitting Diode Maximum...
  • Page 34 Glossary 1KGT151043 V001 1...
  • Page 35 1KGT151043 V001 1...
  • Page 36 Hitachi Energy is not liable for any damages and/or losses related to such security breaches, any unauthorized access, interference, intrusion, leakage and/or theft of data or information.
  • Page 37 Visit us Hitachi Energy P.O. Box 10 03 51 68128 Mannheim, Germany hitachienergy.com/eds500...
