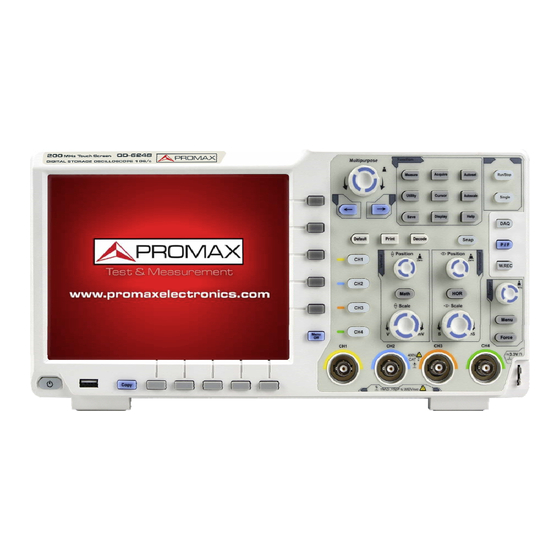

Promax OD-624B Manual

Touchscreen digital storage oscilloscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OD-624B
TOUCHSCREEN DIGITAL STORAGE
OSCILLOSCOPE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OD-624B and is the answer not in the manual?

Questions and answers

Related Manuals for Promax OD-624B

Summary of Contents for Promax OD-624B

  • Page 1 OD-624B TOUCHSCREEN DIGITAL STORAGE OSCILLOSCOPE...

  • Page 2: Table Of Contents

    Table of Contents 1 SAFETY RULES ..................1 2 Symbols related with safety:................2 3 BASIC USER GUIDE..................4 Introduction to the Structure of the Oscilloscope ............. 5 Front Panel ..........................5 Rear Panel ..........................6 Control Area..........................7 User Interface Introduction ..................8 How to Implement the General Inspection ...............
  • Page 3 How to Implement Sampling Setup ..................65 How to Set the Display System ....................68 How to Save and Recall a Waveform ..................71 How to Record / Playback Waveforms ..................79 How to Clone and Recall a waveform..................82 How to Implement the Auxiliary System Function Setting ............
  • Page 4 Multimeter Recorder ....................123 7 Communication with PC ................126 Using USB Port ......................126 Using LAN Port......................126 Connect directly ........................126 Connect through a router....................... 129 Using Wi-Fi to Connect with PC (Optional) ............131 Connect with PC as Wi-Fi Access Point ................131 Connect with PC as Wi-Fi Station..................

  • Page 5: Safety Rules

    1 SAFETY RULES * The safety can turn compromised if there are not applied the instructions given in this Manual. * Use the equipment only on systems or devices to measure the negative connected to ground potential or off-grid. * This is a class I equipment, for safety reasons plug it to a supply line with the corresponding ground terminal.

  • Page 6: Symbols Related With Safety

    2 Symbols related with safety: The four channels of the oscilloscope are not electrically isolated. The channels should adopt a common ground during measuring. To prevent short circuits, the 2 probe grounds must not be connected to 2 different non-isolated DC levels. The diagram of the oscilloscope ground wire connection: Oscilloscope Probe...
  • Page 7 Warning: To avoid fire or electrical shock, when the oscilloscope input signal connected is more than 42V peak (30Vrms) or on circuits of more than 4800VA, please take note of below items: Only use accessory insulated voltage probes and test lead. Check the accessories such as probe before use and replace it if there are any damages.

  • Page 8: Basic User Guide

    3 BASIC USER GUIDE This chapter deals with the following topics mainly: Introduction to the structure of the oscilloscope Introduction to the user interface How to implement the general inspection How to implement the function inspection How to make a probe compensation How to set the probe attenuation coefficient How to use the probe safely How to implement an self-calibration...

  • Page 9: Introduction To The Structure Of The Oscilloscope

    Introduction to the Structure of the Oscilloscope This chapter makes a simple description of the operation and function of the front panel of the oscilloscope, enabling you to be familiar with the use of the oscilloscope in the shortest time. Front Panel The front panel has knobs and function buttons.

  • Page 10: Rear Panel

    6. Remove the left and right menu 7. Select the bottom menu item 8. Copy button: You can save the waveform by just pressing this button in any user interface. 9. USB Host port: It is used to transfer data when external USB equipment connects to the oscilloscope regarded as "host device".

  • Page 11: Control Area

    10. Lock Hole: You can lock the oscilloscope to a fixed location using the security lock (please buy it yourself) to secure the oscilloscope. 11. Trig Out(P/F) port: Trigger signal output or Pass/Fail output, also can be used as the port of CH2 Output of optional dual-channel waveform generator. The output type can be set on the menu (Utility menu→Output→Output).

  • Page 12: User Interface Introduction

    5. Vertical control area with 5 buttons and 2 knobs. CH1 - CH4 buttons correspond to setting menu in CH1 - CH4. "Math" button provides access to math waveform functions (+, -, ×, /, FFT, user function, digital filter). The "Vertical Position" knob control the vertical position of current channel, and the "Scale"...
  • Page 13 1. Waveform Display Area. 2. Run/Stop (touchable on touchscreen) (see "How to Use Executive Buttons") 3. The state of trigger, including: Auto: Automatic mode and acquire waveform without triggering. Trig: Trigger detected and acquire waveform. Ready: Pre-triggered data captured and ready for a trigger. Scan: Capture and display the waveform continuously.

  • Page 14: How To Implement The General Inspection

    24. It indicates the measured type and value of the corresponding channel. "T" means period, "F" means frequency, "V" means the average value, "Vp" the peak-peak value, "Vr" the root-mean-square value, "Ma" the maximum amplitude value, "Mi" the minimum amplitude value, "Vt" the Voltage value of the waveform's flat top value, "Vb"...

  • Page 15: How To Implement The Function Inspection

    1. Check whether there is any damage caused by transportation. If it is found that the packaging carton or the foamed plastic protection cushion has suffered serious damage, do not throw it away first till the complete device and its accessories succeed in the electrical and mechanical property tests. 2.
  • Page 16 3. Push the Autoset Button on the front panel. The square wave of 1 KHz frequency and 3.3V peak-peak value will be displayed in several seconds (see Figure 0-5). Figure 0-5 Auto set Check CH2, CH3 and CH4 by repeating Step 2 and Step 3. How to Implement the Probe Compensation When connect the probe with any input channel for the first time, make this adjustment to match the probe with the input channel.

  • Page 17: How To Set The Probe Attenuation Coefficient

    3. Repeat the steps mentioned if needed. Figure 0-7 Adjust Probe How to Set the Probe Attenuation Coefficient The probe has several attenuation coefficients, which will influence the vertical scale factor of the oscilloscope. To change or check the probe attenuation coefficient on the menu of oscilloscope: Push the function menu button of the used channels (CH1 - CH4 button).

  • Page 18: How To Use The Probe Safely

    Caution: When the attenuation switch is set to 1X, the probe will limit the bandwidth of the oscilloscope in 5MHz. To use the full bandwidth of the oscilloscope, the switch must be set to 10X. Identify the Probe Attenuation Coefficient Automatically The oscilloscope can identify the probe attenuation coefficient of the 100:1 (impedance 5 K ±...

  • Page 19: How To Implement Self-Calibration

    How to Implement Self-calibration The self-calibration application can make the oscilloscope reach the optimum condition rapidly to obtain the most accurate measurement value. You can carry out this application program at any time. This program must be executed whenever the change of ambient temperature is 5ºC or over. Before performing a self-calibration, disconnect all probes or wires from the input connector.

  • Page 20: Introduction To The Horizontal System

    1. Press CH1, CH2, CH3 or CH4 to select the desired channel. 2. Use the Vertical Position knob to show the selected channel waveform in the center of the waveform window. The Vertical Position knob functions the regulating of the vertical display position of the selected channel waveform. Thus, when the Vertical Position knob is rotated, the pointer of the earth datum point of the selected channel is directed to move up and down following the waveform, and the position message at the center of the screen would...

  • Page 21: Introduction To The Trigger System

    Figure 0-11 Horizontal Control Zone 1. Turn the Horizontal Scale knob to change the horizontal time base setting and observe the consequent status information change. Turn the Horizontal Scale knob to change the horizontal time base, and it can be found that the Horizontal Time Base displayed in the status bar changes accordingly.

  • Page 22: Touchscreen Controls (Touchscreen Is Optional)

    Figure 0-12 Trigger Control Zone 1. Push the Trigger Menu button and call out the trigger menu. With the operations of the menu selection buttons, the trigger setting can be changed. 2. Use the Trigger Level knob to change the trigger level setting. By turning the Trigger Level knob, the trigger indicator in the screen will move up and down.
  • Page 23 Press repeatedly to switch the options Adjust value on the menu item: Click to increase the value of cursor position Click to show the Move the cursor soft keyboard Click to decrease the value of cursor position Scroll the list: If there is a scroll bar in the left menu or in the file system window, you can swipe up and down to scroll the list.
  • Page 24 Channel pointer Channel is on and selected Selected Unselected Channel is off Channel is on Set the horizontal and vertical position Click in the area as shown in the figure below, the P icon will appear. Click anywhere outside the icon to hide it. Note: Swipe up/down or left/right in this area, you can make the icon appear and control it.
  • Page 25 Control the Control the vertical position horizontal position of the selected channel Click the P icon to fine-turn, long-press to adjust continuously. Set the trigger level Click in the area as shown in the figure below, the L icon will appear. Click anywhere outside the icon to hide it.
  • Page 26 Set the time base and the voltage division Click in the area as shown in the figure below, the M and V icons will appear. Click anywhere outside the icon to hide it. Note: Swipe up/down or left/right in this area, you can make the icon appear and control it.
  • Page 27 Measure with Cursors Click nearby a cursor line as shown in the figure below, the line will be selected, and the C icon will appear. Click anywhere outside the icon to hide it. Note: Swipe in this area, you can make the icon appear and control it. When the C icon appears, in the full screen, swipe left/right to move the selected line.

  • Page 28: Advanced User Guidebook

    4 Advanced User Guidebook Up till now, you have already been familiar with the basic operations of the function areas, buttons and knobs in the front panel of the oscilloscope. Based the introduction of the previous Chapter, the user should have an initial knowledge of the determination of the change of the oscilloscope setting through observing the status bar.

  • Page 29: How To Set The Vertical System

    How to Set the Vertical System The VERTICAL CONTROLS includes three menu buttons such as CH1, CH2, CH3, CH4 and Math, and two knobs such as Vertical Position, Vertical Scale. Setting of CH1 - CH4. Each channel has an independent vertical menu and each item is set respectively based on the channel.
  • Page 30 1. To set channel coupling Taking the Channel 1 for example, the measured signal is a square wave signal containing the direct current bias. The operation steps are shown as below: (1) Push the CH1 button to show the CH1 SETUP menu. (2) Select Coupling in the bottom menu.

  • Page 31: Use Mathematical Manipulation Function

    5. To set bandwidth limit When high frequency components of a waveform are not important to its analysis, the bandwidth limit control can be used to reject frequencies above 20 MHz. Taking the Channel 1 for example, the operation steps are shown as below: (1) Push the CH1 button to show CH1 SETUP menu.
  • Page 32 Source Select the FFT source. Hamming Rectangle Blackman Window Select window for FFT. Hamming Kaiser Bartlett V RMS Decibels Format V RMS and Decibels are Radian Degrees Position value Switch to select the horizontal position Hori or time base of the FFT waveform, turn Time base (Hz) the M knob to adjust it...

  • Page 33: Waveform Math

    Retangular Tapered Triangular window Select window for digital filter Hamming Hamming Blackman cut-off Turn the M knob to set cut-off frequency upper down Vertical Turn the M knob to adjust the vertical (div) position of Math waveform Enable or disable FFT peak search. Dynamic marker ▽...

  • Page 34: Digital Filter

    Expression Clear Channel Operation Confirm I ntegral Differential Square root 3. Create an expression. When done, choose in the keyboard to confirm . The division of Math waveform is displayed at the left bottom of screen. Digital Filter Digital filter provides 4 types of filters (low pass, high pass, band pass and band reject).

  • Page 35: Using Fft Function

    Using FFT function The FFT (fast Fourier transform) math function mathematically converts a time-domain waveform into its frequency components. It is very useful for analyzing the input signal on Oscilloscope. You can match these frequencies with known system frequencies, such as system clocks, oscillators, or power supplies. FFT function in this oscilloscope transforms 8192 data points of the time-domain signal into its frequency components mathematically (the record length should be 10K or above).
  • Page 36 Type Characteristics Window Better solution for magnitude than Rectangle, and good for frequency as well. It has slightly better frequency resolution than Hanning. Recommend to use for: Hamming Sine, periodic and narrow band random noise. Transients or bursts where the signal levels before and after the event are significantly different.
  • Page 37 Good for magnitude, but poorer frequency resolution than Hamming. Recommend to use for: Sine, periodic and narrow band random Hamming noise. Transients or bursts where the signal levels before and after the event are significantly different. The frequency resolution when using the Kaiser window is fair;...
  • Page 38 Figure 0-1 Hamming window Figure 0-2 Rectangle window 10-2022...
  • Page 39 Figure 0-3 Blackman window Figure 0-4 Hamming window 10-2022...
  • Page 40 Figure 0-5 Kaiser window Figure 0-6 Bartlett window 10-2022...

  • Page 41: Use Vertical Position And Scale Knobs

    Notes for using FFT Use the default dB scale for details of multiple frequencies, even if they have very different amplitudes. Use the Vrms scale to compare frequencies. DC component or offset can cause incorrect magnitude values of FFT waveform. To minimize the DC component, choose AC Coupling on the source signal.

  • Page 42: How To Set The Horizontal System

    Figure 0-7 Information about Vertical Scale How to Set the Horizontal System Horizontal control system includes Horizontal HOR key, Horizontal Position knob and Horizontal Scale knob. Horizontal Position knob: Adjust the horizontal positions of all channels (including mathematical operations). The resolution of this knob changes with the time base.

  • Page 43: Magnifier (For Specific Models)

    Figure 0-8 Waveform Horizontal Zooming Mode In horizontal zoom mode, the Horizontal Position knob adjusts the horizontal position of the horizontal zoom window. The Horizontal Scale knob adjusts the horizontal magnification, and the horizontal time base of the horizontal zoom window also changes. Magnifier (For specific models) After the magnifier function is turned on, the magnifier window can enlarge the...
  • Page 44 Magnifier settings menu description： Setting Description Function Menu Turn on Magnifier Magnifier Turn on Horizontal Zooming. Turn the M knob to set the vertical magnification. Because the magnifier window size does not change, the Ratio larger this multiple is, the smaller the vertical height waveform...

  • Page 45: How To Set The Trigger/Decoding System

    Magnifier Window Cursor Measurement When the magnifier function is on, press the Cursor key on panel to call up the cursor measurement menu. In the bottom menu, select Window as the Main or extension to make the cursor line appear in the main window or magnifier window. How to Set the Trigger/Decoding System Trigger determines when DSO starts to acquire data and display waveform.

  • Page 46: Single Trigger

    The Single Trigger, Logic Trigger and Bus Trigger menus are described respectively as follows: Single Trigger Single trigger has eight types: edge trigger, video trigger, pulse trigger, slope trigger, runt trigger, windows trigger, timeout trigger and Nth edge trigger. Edge Trigger: It occurs when the trigger input passes through a specified voltage level with the specified slope.
  • Page 47 Channel 3 as trigger signal. Channel 4 as trigger signal. AC Line AC power line as trigger signal. Block the direct current component. Allow all component pass. Coupling Block high-frequency signal, only low-frequency component pass. Trigger on rising edge Slope Trigger on falling edge Auto Acquire waveform even no trigger occurs...
  • Page 48 Select CH3 as the trigger source Select CH4 as the trigger source NTSC Modu Select video modulation SECAM Line Synchronic trigger in video line Field Synchronic trigger in video field Synchronic trigger in video odd filed Sync Even Synchronic trigger in video even field Line NO.
  • Page 49 Select pulse width condition and adjust the M knob or click to set time, press panel button or click to move cursor to choose which digit to be set. Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Single When trigger occurs, acquire one waveform then stop...
  • Page 50 Set slope condition; turn the M knob or click to set slope time, press panel button or click to move cursor to choose which digit to be set. High level Adjust M knob to set the High level upper limit. Threshold Low level Adjust M knob to set Low level lower limit.
  • Page 51 Runt Trigger menu list: MENU SETTING INSTRUCTION Single Runt Set vertical channel trigger type as runt trigger. Mode Select CH1 as the trigger source Select CH2 as the trigger source Source Select CH3 as the trigger source Select CH4 as the trigger source Adjust the M knob or click to set the up level Up Level...
  • Page 52 Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Single When trigger occurs, acquire one waveform then stop Mode Holdoff 100 ns - 10 s, adjust M knob or click to set Holdoff time interval before another trigger occur, press panel button or click to move cursor to choose which digit to be set.
  • Page 53 Positive Polarity, the oscilloscope triggers on the Polarity positive Windows pulse. Negative Polarity, the oscilloscope triggers on the negative Windows pulse. Enter: Triggers when the trigger signal enters the specified trigger level range. Condition Exit: Triggers when the trigger signal exits the specified trigger level range.
  • Page 54 Single Timeout Set vertical channel trigger type as Timeout trigger. Mode Select CH1 as the trigger source Select CH2 as the trigger source Source Select CH3 as the trigger source Select CH4 as the trigger source Edge Start timing when the rising edge of the input signal passes through the trigger level.
  • Page 55 Nth Edge Trigger Nth Edge Trigger menu list: MENU SETTING INSTRUCTION Single Nth Edge Set vertical channel trigger type as Nth Edge trigger. Mode Select CH1 as the trigger source Select CH2 as the trigger source Source Select CH3 as the trigger source Select CH4 as the trigger source Edge Trigger on the rising edge of the input signal when...

  • Page 56: Logic Trigger

    Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Single When trigger occurs, acquire one waveform then stop Mode 100 ns - 10 s, adjust M knob or click to set time Holdoff Holdoff interval before another trigger occur, press panel button or click move cursor to choose which digit to be set.
  • Page 57 Trigger when the time of true condition is greater Is True > than the set time Trigger when the time of true condition is equal to Is True = the set time Trigger when the time of true condition is lower Is True <...

  • Page 58: Bus Trigger

    Bus Trigger 1. RS232 Trigger RS232 is a serial communication mode used in the data transmission between PCs or between PC and Terminal. A character is transmitted as a frame of data which consist of 1bit start bit, 5-8bits data bits, 1bit check bit and 1-2 stop bits. In RS232 bus trigger mode, the trigger setting information is displayed on bottom right of the screen, for example, , indicates that trigger...
  • Page 59 Common Baud: adjust M knob to choose common baud. Start Custom Baud: adjust M knob to choose baud, ranges from 50 to 10,000,000. Stop Bit：Select “1”or ”2”. Parity: “NO””EVEN””ODD” Common Baud: adjust M knob to choose common Error baud. Custom Baud: adjust M knob to choose baud, ranges Configure from 50 to 10,000,000.
  • Page 60 I2C Trigger menu list: MENU SETTING INSTRUCTION Bus Type Set vertical channel bus type as I2C trigger. Set SCL. Source Set SDA. Trigger when SDA data transitions from high to low while Start SCL is high. Restart When another start condition occurs before a stop condition. Trigger when SDA data transitions from low to high while Stop SCL is high.
  • Page 61 3. SPI Trigger Trigger on the specified data when the timeout condition is meet. When using SPI trigger, you need to specify the SCL and SDA data sources. In SPI bus trigger mode, the trigger setting information is displayed on bottom right of the screen, for example, , indicates that trigger type is SPI, CH1 trigger level is 0.00mV.
  • Page 62 4. 4 CAN Trigger (Optional) CAN (Controller Area Network) is a serial communication protocol of the ISO international standardization. By using the CAN bus trigger, you can trigger on Start of Frame, Type of Frame, Identifier, Data, ID & Data, End of Frame, Missing Ack, or Bit Stuffing Error. You need to specify the signal source, trigger signal type, sample point, and signal rate of the CAN signal.
  • Page 63 Turn the M knob (or tap on in touchscreen) to Custom set the Baud. The range is 10,000 to 1,000,000. Baud Tip: You can select the nearest value in Common Baud, and then adjust it in this menu. Start Trigger on the start frame of the data frame. Data Type Remote...

  • Page 64: Bus Decoding (Optional)

    Bus Decoding (Optional) 1. RS232 Decoding To decode RS232 signal: (1) Connect the RS232 signal to the Signal Input Channel of the oscilloscope. (2) Adjust to the proper time base and voltage division. (3) In trigger menu, select Bus trigger, and select bus type as RS232, set parameters based on the characteristics of the signal, trigger the signal correctly and obtain stable display.
  • Page 65 Binary Decimal Set the display format of the bus. Format ASCII EventTabl Select "ON" to display the event table. Display If a USB storage device is currently connected to the Save instrument, save the event table data in a .csv EventTabl (spreadsheet) formatted file on the external USB storage device.
  • Page 66 Note: Use the Trigger Level knob to adjust the thresholds of bus trigger and bus decoding. When the ACK (ACKnowledge Character) is not met, two red error marks will be displayed in the corresponding position in the waveform. I2C Decoding menu list: MENU SETTING INSTRUCTION...
  • Page 67 Tip: If there are repetitive menu items in both the trigger menu and the decoding menu, you can set any one of them, and the other will be changed synchronously. Note: Use the Trigger Level knob to adjust the thresholds of the bus trigger and bus decoding.
  • Page 68 4. CAN Decoding To decode CAN signal: (1) Connect the CAN signal to the Signal Input Channel of the oscilloscope. (2) Adjust to the proper time base and voltage division. (3) In trigger menu, select Bus trigger, and select bus type as CAN, set parameters based on the characteristics of the signal, trigger the signal correctly and obtain stable display (4) Push the Decode button on the front panel.

  • Page 69: How To Operate The Function Menu

    CAN Decoding menu list: MENU SETTING INSTRUCTION Set bus type of decoding as CAN. Type Binary Decimal Set the display format of the bus. Format ASCII EventTabl Select "ON" to display the event table. Display If a USB storage device is currently connected to the Save instrument, save the event table data in a .csv EventTabl...
  • Page 70 It is used to reduce the random and Average don't-care noises, with the optional number of averages. The description of the Record Length menu is shown as follows: Function Menu Setting Description 1000 Choose the record length 100K four channels are turned Note: When Length on, the max record length is 10M;...
  • Page 71 Figure 0-10 Sine(x)/x interpolation Figure 0-11 Linear interpolation 10-2022...

  • Page 72: How To Set The Display System

    How to Set the Display System Push the Display Function Setting Description Menu Dots Only the sampling points are displayed. Vect The space between the adjacent sampling Type points in the display is filled with the vector form. 1 Second Persist 2 Seconds Set the persistence time...
  • Page 73 Select OFF to turn off persistence and clear the display. (5) Select Clear in the bottom menu to erase the results of previous acquisitions from the display. The oscilloscope will start to accumulate acquisitions again. Color Color temperature function uses color-grading to indicate frequency of occurrence. The hot colors like red/yellow indicate frequently occurring events, and the colder colors like blue/green indicate rarely occurring events.
  • Page 74 XY Format This format is only applicable to Channel 1 and Channel 2. After the XY display format is selected, Channel 1 is displayed in the horizontal axis and Channel 2 in the vertical axis; the oscilloscope is set in the un-triggered sample mode: the data are displayed as bright spots.

  • Page 75: How To Save And Recall A Waveform

    3. Select Counter as ON or OFF in the bottom menu. How to Save and Recall a Waveform Push the Save button, you can save the waveforms, configures, screen images, record or clone the waveform. The description of the Save Function Menu is shown as the following table: Function Menu Setting Description...
  • Page 76 Save the waveform of the source to the selected address. Whatever the Type of save menu is set, you can save the waveform by just pressing the Copy Save panel button in any user interface. Select Type in the bottom menu, in the right Format menu, you can select the storage format.
  • Page 77 3. Saving: Select Type in the bottom menu, select Wave in the left menu. 4. Select Storage in the bottom menu, select Internal in the right menu. 5. Select Source in the bottom menu, check CH1, CH2, Math in the right menu for Source.
  • Page 78 Save the current screen image: The screen image can only be stored in USB disk, so you should connect a USB disk with the instrument. 1. Install the USB disk: Insert the USB disk into the "USB Host port" of "Figure 0-1 Front panel".
  • Page 79 Figure 0-13: Disk Management of computer 4. Right click 1 or 2 red mark area, choose Format. And system will pop up a warning message, click Yes. Figure 0-14: Format the USB disk warning 5. Set File System as FAT32, Allocation unit size 4096. Check "Perform a quick format"...
  • Page 80 Figure 0-15: Formatting the USB disk setting 6. Formatting process. Figure 0-16: Formatting the USB disk Check whether the USB disk is FAT32 with allocation unit size 4096 after formatting. Use Minitool Partition Wizard to format Download URL: http://www.partitionwizard.com/free-partition-manager.html Tip: There are many tools for the USB disk formatting on the market, just take Minitool Partition Wizard for example here.
  • Page 81 red mark 1 and 2. Figure 0-17: Reload Disk 4. Right click 1 or 2 red mark area, choose Format. Figure 0-18: Choose format 5. Set File System FAT32, Cluster size 4096. Click OK. Figure 0-19: Format setting 10-2022...
  • Page 82 6. Click Apply at the top left of the menu. Then click Yes on the pop-up warning to begin formatting. Figure 0-20: Apply setting 7. Formatting process Figure 0-21: Format process Format the USB disk successfully Figure 0-22: Format successfully 10-2022...

  • Page 83: How To Record / Playback Waveforms

    How to Record / Playback Waveforms Push Save button. Select Type in the bottom menu, in the left menu, turn the M knob to select Record. Wave Record function can record the input current wave. You can set the interval between recorded frames in the range of 10 ms - 10 s. The max frame number reaches 1000, and you can get better analysis effect with playback and storage function.
  • Page 84 Playback: Play back the wave recorded or saved. Playback menu shows as follows: Menu Setting Instruction Start frame Turn the M knob to select the number of start frame to playback (1 - 1000) End frame Turn the M knob to select the number of end frame Playback Mode to playback (1 - 1000) FrameSet...
  • Page 85 (10) To save the wave recorded, select Mode in the bottom menu, select Storage in the right menu. Select FrameSet in the bottom menu to set the range of frames to store, select Save in the bottom menu. (11) To load the waveform from the internal memory, select Load in the bottom menu, then enter the Playback of the Mode to analyze the wave.

  • Page 86: How To Clone And Recall A Waveform

    8. In the bottom menu, select Operate as Play. Connect external device to the computer, and wave_record_0.bin is the recorded file. Open the software, and do as follows to play back the waveform. 1. Choose Communications Auto Player. 2. Transform recording waveform from machine. 3.
  • Page 87 memorydevice; and the waveform between two cursors can be output directly without save operation. Clone Wave menu shows as follows: Menu Setting Instruction Type Clone Select the clone function. Mode Select the source mode. Out1 The cloned waveform includes one waveform, which will be used for AG Out1 Out2 The cloned waveform includes one waveform,...
  • Page 88 Clone (When the Clone the waveform between two cursors, and output it Clone generator through the built-in generator. available) Save Save the waveform between two cursors You can select one of the four objects in the left list. When selecting a object, a message will appear in the screen center, show the information of the selected object.
  • Page 89 To save the CH1 waveform and save to the internal/USB memory: (1) Push Save button. (2) Select Type in the bottom menu, turn the M knob to select Clone in the left menu. (3) Select Source in the bottom menu, select Mode as Out1. in the right menu. (4) Select AG Output Out1 as CH1.
  • Page 90 (4) Select the desired ota file, select Read in the right menu. To output the CH1 and CH2 waveforms through the generator directly: (The generator is optional.) (1) Push Save button. (2) Select Type in the bottom menu, turn the M knob to select Clone in the left menu.
  • Page 91 SIZE Parameter Meaning Value Comment name SIZE File size 4 bytes int Used to check the file integrity VOLT Parameter Meaning Value Comment name VOLT Voltage division, 4 bytes float The value indicates divided by 400 is voltage (the unit is mV), ADC resolution.

  • Page 92: How To Implement The Auxiliary System Function Setting

    divided by 400 is voltage (the unit is mV), ADC resolution. such as 200 mV. (When the source mode is Out1&Out2, it is the second channel voltage division.) 2.Data The data type is signed integer. You can determine the data type (char, short int or int) based on the BYTE parameter.
  • Page 93 ●Display Push the Utility button, select Function in the bottom menu, select Display in the left menu. The description of is shown as the follows: Display Menu Function Setting Description Menu BackLight 0% - 100% Turn the M knob to adjust the backlight. Graticule Select the grid type Battery...
  • Page 94 function menu will display at the left, select Adjust. If everything is ready, select Self Cal in the bottom menu to enter the self-calibration procedure of the instrument. Probe checking To check whether probe attenuation is good. The results contain three circumstances: Overflow compensation, Good compensation, Inadequate compensation.
  • Page 95 Select any one from Rule1 - Rule8 as your rule Number name SaveRule Save Select Save to save the rule Load Load some rule as the testing rule The description of Pass/fail Menu is shown as the follows: Pass/Fail test: Detect whether the input signal is within the limits of the rule, if it exceeds limits of the rule, it is "Fail";...
  • Page 96 Output menu item in the bottom menu sets the output type of Trig Out(P/F) port on Rear Panel. In the bottom menu, select Output. The description of Output menu is shown as the follows: Function Setting Description Menu Trig level Output trig signal synchronously Output High Level when Pass , and Low Level when Pass/fail...

  • Page 97: How To Update Your Instrument Firmware

    How to Update your Instrument Firmware Use the front-panel USB port to update your instrument firmware using a USB memory device. USB memory device requirements: Insert a USB memory device into the USB port on the front panel. If the icon appears on the top right of the screen, the USB memory device is installed successfully.

  • Page 98: How To Measure Automatically

    Measurements. At most 8 types of measurements could be displayed on the bottom left of the screen. The OD-624B provides 31 parameters for auto measurement, including Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B , Delay A→B , Cycle RMS, Cursor RMS, Screen Duty,...
  • Page 99 bottom, you could only add 8 types at most) Select the types need to be deleted. Meas Type The selected type and source are shown in the (left menu) Remove menu on the right. Remove Remove Remove the selected measure type Remove All Remove all the measures Snapsh Show all the measures of the snapshot source...
  • Page 100 Figure 0-24 Automatic measurement The automatic measurement of voltage parameters The OD-624 B oscilloscope provides automatic voltage measurements including Mean, PK-PK, RMS, Max, Min, Vtop, Vbase, Vamp, OverShoot, PreShoot, Cycle RMS, and Cursor RMS. Figure 0-25 below shows a pulse with some of the voltage measurement points.
  • Page 101 Cursor RMS: The true Root Mean Square voltage over the range of two cursors. The automatic measurement of time parameters The OD-624B provides time parameters auto-measurements include Period, Frequency, Rise Time, Fall Time, +D width, -D width, +Duty, -Duty, Delay A→B , Delay A→B , Screen Duty , Phase A→B , and Phase A→B .
  • Page 102 +Duty: +Duty Cycle, defined as +Width/Period. -Duty:-Duty Cycle, defined as -Width/Period. Delay A→B : The delay between the two channels at the rising edge. Delay A→B : The delay between the two channels at the falling edge. Screen Duty: Defines as (the width of the positive pulse)/(Entire period) Phase A→B : Phase difference calculated according to "...

  • Page 103: How To Measure With Cursors

    Note: When the waveform on the screen is less than a period, the period area measured is 0. How to Measure with Cursors Push the Cursor button to turn cursors on and display the cursor menu. Push it again to turn cursors off. The Cursor Measurement for normal mode: The description of the cursor menu is shown as the following table: Function...
  • Page 104 two blue dotted lines displayed along the horizontal direction of the screen, two blue dotted lines displayed along the vertical direction of the screen. Cursor measure window at the left bottom of the screen shows the cursor readout. 4. In the bottom menu, select Line Type as Time to make the vertical cursors active.
  • Page 105 Figure 0-28 Auto Cursor The Cursor Measurement for FFT mode In FFT mode, push the Cursor button to turn cursors on and display the cursor menu. The description of the cursor menu in FFT mode is shown as the following table: Function Setting...

  • Page 106: How To Use Autoscale

    Window Main Measure in the main window. (Wave zoom Extension Measure in the FFT extension window. mode) Turn the M knob to move line a. Turn the M knob to move line b. Line Two cursors are linked. Turn the M knob to move the pair of cursors.
  • Page 107 Function Setting Instruction Menu Turn on Autoscale. Autoscale Turn off Autoscale. Follow-up and adjust both vertical and horizontal settings. Mode Follow-up and only adjust horizontal scale. Follow-up and only adjust vertical scale. Show Multi-period waveforms. Wave Only show one or two periods. To measure the signal using autoscale, you can do as the follows: 1.

  • Page 108: How To Use Built-In Help

    Note: 1. When entering into Auto scale function, an auto scale indicator will be flickering on the top left of the screen. 2. In the mode of Autoscale, the oscilloscope can self-estimate Trigger Mode (Edge, Video). At this point, the trigger menu is not available. 3.
  • Page 109 Vertical Position Adjust to the proper position. Bandwidth Full Horizontal Level Middle Horizontal Sale Adjust to the proper division Trigger Type Slope or Video The previous source before autoseting. When the previous source has no input signal, the source will be set to the minimum channel which Trigger Source has input signal.
  • Page 110 Video signal: DC level, Unknown signal: Description for some icons: Multi-period： To display multiple periods Single-period： To display single period FFT： Switch to FFT mode Rising Edge： Display the rising edge of square waveform Falling Edge： Display the falling edge of square waveform Cancel Autoset：Go back to display the upper menu and waveform information Note: The Autoset function requires that the frequency of signal should be no lower than 20Hz, and the amplitude should be no less than 5mv.

  • Page 111: How To Print The Screen Image

    How to Print the Screen Image To print an image of what appears on the oscilloscope screen, do as the follows: (1) Connect the printer to the USB Device port on the rear panel of the oscilloscope. Note: The USB Device port supports PictBridge compatible printers. (2) Push the Utility button, select Function in the bottom menu, select Output in the left menu.

  • Page 112: To Set Channels

    Figure 0-30 Generator Output Ports (Dual-channel) To see the output of the generator, connect the other end of the BNC cable to one of the input channels on the front of the oscilloscope. To Set Channels Single-channel: Push to turn on/off the channel output. The indicator will be lighted when the corresponding channel is tuned on.

  • Page 113: To Set Signals

    Frequency Lock Select Freq Lock in the bottom menu as On, the frequency of the two channels can be adjusted synchronously. Amplitude Lock Select Ampl Lock in the bottom menu as On, the amplitude of the two channels can be adjusted synchronously. Align Phase Select Align Phase in the bottom menu to align the initial phase of two channel signals.
  • Page 114 Use the touchscreen (Touchscreen is optional): Click to increase the value of the cursor Move the cursor Click to decrease the value of the cursor To Set the Period Select Period in the right menu (if Period is not displayed, select Frequency and select it again to switch to Period).

  • Page 115: To Output Square Signals

    To Set the Offset Select Offset in the right menu (if Offset is not displayed, select Low Level and select it again to switch to Offset). Set the parameter in the right menu. To Set the High Level Select High Level in the right menu (if High Level is not displayed, select Amplitude and select it again to switch to High Level).

  • Page 116: To Output Arbitrary Signals

    To Set the Duty Cycle of Pulse Select Duty Cycle in the right menu (if Duty Cycle is not displayed, select Width and select it again to switch to Duty Cycle). Set the parameter in the right menu. To Output Arbitrary Signals The menu items of Arbitrary waveform are: Frequency/Period, Start Phase, Amplitude/High Level, Offset/Low Level, New, File Browse, Built-in.
  • Page 117 Last modification time File size Waveform graph If a USB device is connected, and you want to save the waveform to it, select Memory in the right menu as USB. The instrument lists a directory of the folders and files on the USB memory device. Select a folder or file using the M knob to scroll up and down the list.
  • Page 118 File Browse To read a waveform stored in internal storage or USB device: (1) Push (single-channel) or (dual-channel) button. Select Arb in the bottom menu, select Others in the right menu, and select File Browse. (2) Select the desired waveform file in internal storage (FLASH) or USB device (USBDEVICE).
  • Page 119 StairU Stair-up waveform StairUD Stair-up and stair-down waveform Trapezia Trapezoid waveform RoundHalf RoundHalf wave AbsSine Absolute value of a Sine AbsSineHalf Absolute value of half a Sine SineTra Sine transverse cut SineVer Sine vertical cut NegRamp Negative ramp AttALT Gain oscillation curve AmpALT Attenuation oscillation curve CPulse...

  • Page 120: Frequency Response Analysis

    DC signal Heart Heart signal Round Round signal LFMPulse Linear FM pulse Rhombus Rhombus signal Cardiac Cardiac signal Noise Noise signal Frequency Response Analysis The Frequency Response Analysis (FRA) feature controls the built-in waveform generator to sweep a sine wave across a range of frequencies while measuring the input to and output from a device under test.

  • Page 121: Use The Multimeter (Optional)

    Output V (Note: The menus are not for selecting menu items, only for showing information.) Min Freq Turn Multipurpose knob to set frequency sweep Fine min value. Check to enable fine-tuning. Max Freq Turn Multipurpose knob to set frequency sweep Fine max value.

  • Page 122: Dmm Menu (Optional)

    Figure 0-1 Multimeter Input Terminals DMM Menu (optional) Push DMM button on the front panel to enter/exit the multimeter function. The button backlight will be lighted when the multimeter function is enabled. Figure 0-2 Multimeter Button The bottom menu of multimeter is as below: Menu Setting Description...

  • Page 123: Dmm Information Window

    When making relative measurements, reading is Relative the difference between a stored reference value and the input signal. Show Info Show/Hide the information window ON OFF Auto Range Select auto range mode Configure Switch Range Select manual range mode, press to switch range Current Select the current range.

  • Page 124: Making Multimeter Measurements

    3. Range. 4. Measurement display ("OL" is short for overload, indicates the reading exceeds the display range) 5. Data hold mode is enabled. 6. Multimeter recorder (See " ") Multimeter Recorder 7. The reference value of the relative measurement. 8. Range of measuring current: mA or 10A. 9.

  • Page 125: Measuring Ac Or Dc Voltage

    (5) Disconnect the circuit path to be tested. Connect the black test lead to one side of the circuit (with a lower voltage); connect the red test lead to the other side (with a higher voltage). Reversing the leads will produce a negative reading, but will not damage the multimeter.

  • Page 126: Measuring Capacitance

    oscilloscope and the red test lead to the V/Ω/C terminal. (3) Probe the test points to measure the resistance in the circuit. If the reading is below 50 Ω, the multimeter will beep. Measuring Capacitance (1) Push DMM button on the front panel. Select in the bottom menu, select it until switching to C.

  • Page 127: Auto Or Manual Range

    (1) Select Configure in the bottom menu, select Show Info in the right menu as ON. The information window will be shown on the display. (2) Select OFF to hide. Auto or Manual Range Auto range is set as default. To switch auto or manual range, do the following steps: (1) Select Configure in the bottom menu.
  • Page 128 1. Push DMM button on the front panel to enter the multimeter function. Select Current or Voltage in the bottom menu. If you want to enter the relative mode, select Configure in the bottom menu, select Relative in the right menu. 2.
  • Page 129 1. Open Multimeter_Recorder.csv in Excel. Interval Measurement mode Reference value of the relative measurements 2. Select the data that you want to chart (see Figure 0-4). 3. On the Insert tab, in the Charts group, click Line, and then click Line in 2-D Line (see Figure 0-5).

  • Page 130: Communication With Pc

    7 Communication with PC The oscilloscope supports communications with a PC through USB, LAN port or Wi-Fi. You can use the Oscilloscope communication software to store, analyze, display the data and remote control. To learn about how to operate the software, you can push F1 in the software to open the help document.
  • Page 131 Figure 0-1 Set the network parameters of the computer (3) Set the network parameters of the Oscilloscope Software. Run the software computer; choose "Ports-settings" "Communications" menu item. Set "Connect using" to LAN. About the IP, the first three bytes is same as the IP in the step (2), the last byte should be different.
  • Page 132 Figure 0-2 Set the network parameters of the Oscilloscope Software (4) Set the network parameters of the oscilloscope. In the oscilloscope, push the Utility button. Select Function in the bottom menu. Select LAN Set in the left menu. In the bottom menu, set the Type item as LAN, and select Set. In the right menu, set IP and Port to the same value as the "Ports-settings"...

  • Page 133: Connect Through A Router

    Connect through a router (1) Connection. Use a LAN cable to connect the oscilloscope with a router, the LAN port of the oscilloscope is in the right side panel; the computer should be connected to the router too. (2) Set the network parameters of the computer. Since the oscilloscope can not support obtaining an IP address automatically, you should assign a static IP address.
  • Page 134 Figure 0-5 Set the network parameters of the Oscilloscope Software (4) Set the network parameters of the oscilloscope. In the oscilloscope, push the Utility button. Select Function in the bottom menu. Select LAN Set in the left menu. In the bottom menu, set the Type item as LAN, and select Set. In the right menu, set IP and Port to the same value as the "Ports-settings"...

  • Page 135: Using Wi-Fi To Connect With Pc (Optional)

    Using Wi-Fi to Connect with PC (Optional) Connect with PC as Wi-Fi Access Point PC should support Wi-Fi. (1) Set the oscilloscope. In the oscilloscope, push the Utility button. Select Function in the bottom menu. Select LAN Set in the left menu. In the bottom menu, set the Type item as WIFI-AP, and select Set in the bottom menu.

  • Page 136: Connect With Pc As Wi-Fi Station

    (8) Set the network parameters of the Oscilloscope Software. Run the software computer; choose "Ports-settings" "Communications" menu item. Set "Connect using" to LAN. Set IP and Port to the same value in the oscilloscope in the step (4). If you can get data normally, the connection is successful.
  • Page 137 (5) After setting, select ON in the Status menu. The value of IP is displayed in IP:PORT menu. Here IP is 10.1.1.126. A changing icon appears on the top right of the screen. (6) Select Save set in the bottom menu to save current settings. (7) Set the network parameters of the computer.

  • Page 138: Communication With Android Device Via Wi-Fi (Optional)

    (8) Set the network parameters of the Oscilloscope Software. Run the software computer; choose "Ports-settings" "Communications" menu item. Set "Connect using" to LAN. Set IP and Port to the same value in the oscilloscope. If you can get data normally, the connection is successful.

  • Page 139: Connect With App As Wi-Fi Access Point

    Connect with APP as Wi-Fi Access Point (1) In the oscilloscope, push the Utility button. Select Function in the bottom menu. Select LAN Set in the left menu. In the bottom menu, set the Type item as WIFI-AP, and select Set in the bottom menu. (2) In the right menu, select SSID, a keyboard will pop up.

  • Page 140: Connect With App As Wi-Fi Station

    (8) In Android device, launch the application. (9) Click connect on the left. (10) Set IP and Port to the same value as the setting in the oscilloscope. Click Confirm to connect. Click History to recall the history settings. Connect with APP as Wi-Fi Station (1) In the oscilloscope, push the Utility button.
  • Page 141 (3) In the right menu, select Encryption, push to set the Encryption type of the Wi-Fi hotspot. Open type needs no password. WEP or WPA type need to input the password. In the right menu, select Password, use the keyboard to input the Wi-Fi hotspot password.

  • Page 142: User Interface

    (9) In Android device, launch the application. (10) Click connect on the left. (11) Set IP and Port to the same value as the setting in the oscilloscope. Click Confirm to connect. Click History to recall the history settings. User Interface Horizontal position pointer Touch to enter Trigger...
  • Page 143 Share the image / wave file via the installed sharing apps Save into wave file (bmp, png, bin, csv) Submit feedback Exit APP Trigger Source Menu Trigger Source Menu Swipe from the left edge of the screen to show the trigger source menu Control Menu Touch to enter the control...
  • Page 144 Control Interface of the Generator Turn on off output of Select Select selected channel channel Waveform Set the parameters of current waveform Display Menu Adjust the Set the auto The points will be brightness of grid measurement connected with lines 10-2022...
  • Page 145 Cursor Menu Check to measure time Measure voltage The cursor line can be dragged . Cursor measurement Setting Menu APP Information 10-2022...

  • Page 146: Gestures Control

    Gestures Control Show the vertical position when gesturing Control the Control the trigger vertical position level of the trigger of the selected source channel Control the horizontal position 10-2022...

  • Page 147: Demonstration

    Pinch and spread vertically to change the voltage division of current channel Pinch and spread horizontally to change the time base 9 Demonstration Example 1: Measurement a Simple Signal The purpose of this example is to display an unknown signal in the circuit, and measure the frequency and peak-to-peak voltage of the signal.

  • Page 148: Example 2: Gain Of A Amplifier In A Metering Circuit

    (3) In the left Type menu, turn the M knob to select Period. (4) In the right menu, select CH1 in the Source menu item. (5) In the right menu, select Add. The period type is added. (6) In the left Type menu, turn the M knob to select Frequency. (7) In the right menu, select CH1 in the Source menu item.

  • Page 149: Example 3: Capturing A Single Signal

    (2) Push the Measure button to show the Measure menu. (3) Select Add in the bottom menu. (4) In the left Type menu, turn the M knob to select PK-PK. (5) In the right menu, select CH1 in the Source menu item. (6) In the right menu, select Add.
  • Page 150 Oscilloscope, user can solve this problem by taking an easy approach. First to run your test using auto trigger to find out the closest trigger level and trigger type, this helps user to make few small adjustments to achieve a proper trigger level and mode.

  • Page 151: Example 4: Analyze The Details Of A Signal

    Figure 0-3 Capturing a Single Signal Example 4: Analyze the Details of a Signal Noise is very common inside most of the electronic signal. To find out what's inside the noise and reduce the level of noise is very important function our oscilloscope is capable to offer.
  • Page 152 Figure 0-4 Signal with Noises Separate Noises from the Signal When focusing on signal itself, the important thing is to reduce the noise level as lower as possible, this would enable user to have more details about the signal. The Average function offered by our Oscilloscope can help you to achieve this.

  • Page 153: Example 5: Application Of X-Y Function

    Figure 0-5 Reduce Noise level by using Average function Example 5: Application of X-Y Function Examine the Phase Difference between Signals of two Channels Example: Test the phase change of the signal after it passes through a circuit network. X-Y mode is a very useful when examining the Phase shift of two related signals.
  • Page 154 (5) Push CH1 button to select CH1, turn the Vertical Scale knob, and then push CH2 button to select CH2, turn the Vertical Scale knob, making the amplitudes of two signals equal in the rough. (6) Push the Display button and recall the Display menu. (7) Select XY Mode in the bottom menu.

  • Page 155: Example 6: Video Signal Trigger

    of the ellipse is in the II and IV quadrants, the determined phase difference angle is in the II and III quadrants, that is, within the range of (π / 2 - π) or (π - 3π /2). Example 6: Video Signal Trigger Observe the video circuit of a television, apply the video trigger and obtain the stable video output signal display.

  • Page 156: 10 Troubleshooting

    10 Troubleshooting 1. Oscilloscope is powered on but no Display. Check whether the power connection is connected properly. Check whether the fuse which is beside the AC power input jack is blew (the cover can be pried open with a straight screwdriver). Restart the instrument after completing the checks above.

  • Page 157: 11 Technical Specifications

    11 Technical Specifications This instrument should run for at least 30 minutes continuously under the specified operating temperature. If change of the operating temperature is up to or exceeds 5ºC, do a "Self-calibration" procedure. Oscilloscope Performance Characteristics Instruction Banwidth 200 MHz Vertical Resolution (A/D) 8 bits Channel...
  • Page 158 Performance Characteristics Instruction When four channels are turned on, the max record length is 10 M; and max 20 M Max Record Length for two channels; max 40 M for more one channel Scanning speed 1ns/div - 1000s/div, step by 1 – 2 - 5 (S/div) Sampling rate / relay ±2.5 ppm max (Ta = +25℃)

  • Page 159: Trigger

    Performance Characteristics Instruction Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B , Delay Automatic A→B , Cycle RMS, Cursor RMS, Screen Duty, Phase A→B , Phase A→B +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle...
  • Page 160 Trigger According to Record length and time base displacement Trigger Holdoff 100 ns – 10 s range 50% level setting Input signal frequency ≥ 50 Hz (typical) Edge trigger slope Rising, Falling Support standard NTSC, PAL and Modulation SECAM broadcast systems Video Trigger Line number...

  • Page 161: Waveform Generator (Optional)

    Start, Restart, Stop, Lost, Trigger Condition Address, Data, Addr/Data Address Bits 7 bit, 8 bit, 10 bit I2C Trigger Address Range 0 to 127, 0 to 255, 0 to 1023 Byte Length 1 to 5 Trigger Condition Timeout Timeout Value 30 ns to 10 s SPI Trigger Data Bits...

  • Page 162: General Technical Specifications

    Multimeter (Optional) Performance Characteristi Instruction Full scale 3¾ digits (Max 4000 – count) reading Diode 0 V - 1 V Input 10 MΩ impedance On/Off measuremen <50 (±30)Ω beeping Capacitance 51.2nF - 100uF: ±(3%±3 digit) DCV: 400mV, 4V, 40V, 400V, 1000V: ±(1%±1digit) Max.
  • Page 163 3.7 V, 13200 mAh Battery (optional) The battery can last approximately 2 to 4 hours (differ in models) after a full recharge. Operating environment conditions Working temperature: 0ºC - 40ºC Temperature Storage temperature: -20ºC - 60ºC Relative Humidity ≤ 90% Operating: 3,000 m Height Non-operating: 15,000 m...

  • Page 164: 12 Appendix

    12 Appendix Appendix A: Enclosure (The accessories subject to final delivery.) Standard Accessories: Power Cord CD Rom Quick Guide USB Cable Probe Probe Adjust Options: Multimeter Lead Capacitance Battery Soft Bag Ext Module Appendix B: General Care and Cleaning General Care Do not store or leave the instrument where the liquid crystal display will be exposed to direct sunlight for long periods of time.

  • Page 165: Appendix C: Battery Using Guide

    1. Wipe the dust from the instrument and probe surface with a soft cloth. Do not make any scuffing on the transparent LCD protection screen when clean the LCD screen. 2. Disconnect power before cleaning your Oscilloscope. Clean the instrument with a wet soft cloth not dripping water.
  • Page 166 Note: To avoid overheat of battery during charging, the ambient temperature is not allowed to exceed the permissible value given in technical specification. Replacing the Lithium Battery Unit It is usually not required to replace the battery unit. But when it is required to replace it, only qualified personnel can carry out this operation, and only use the same specification lithium battery.
