- Page 1 TDOFLIS2102-PIR WiFi Active Alarm Floodlight Camera Quick Installation Guide V1.0.2...
-
Page 2: Foreword
Foreword General This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting for a TOUGHDOG Network Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit. - Page 3 About the Guide This user guide has been compiled with great care and the information it contains has been thoroughly reviewed and verified. The text was complete and correct at the time of printing. This guide may be periodically ...
- Page 4 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. ...
-
Page 5: Important Safeguards And Warnings
Important Safeguards and Warnings This chapter describes the contents covering proper handling of the device, hazard prevention, and prevention of property damage. Read these contents carefully before using the device, comply with them when using, and keep it well for future reference. Installation and Maintenance Professionals Requirements All installation and maintenance professionals must have adequate qualifications or ... - Page 6 If the unit is damaged and requires service, unplug the unit from the main AC power supply and from the PoE supply and refer to qualified service personnel. Damage may include, but is not limited to: The power supply cord or plug is damaged. Liquid has spilled in or on the unit.
- Page 7 Operation and Maintenance Requirements Do not touch the heat dissipation component of the unit. This part of the unit is hot and may cause a burn. Do not open or dismantle the device; there are no components that a user can fix or ...
-
Page 8: Cybersecurity Recommendations
Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity Change Passwords and Use Strong Passwords The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible. - Page 9 Change ONVIF Password Older IP camera firmware does not automatically change the ONVIF password when the system credentials are changed. Update the camera’s firmware to the latest revision or manually change the ONVIF password. Forward Only Ports You Need ...
- Page 10 Connect IP Cameras to the PoE Ports on the Back of an NVR Cameras connected to the PoE ports on the back of an NVR are isolated from the outside world and cannot be accessed directly. Isolate NVR and IP Camera Network ...
-
Page 11: Table Of Contents
Table of Contents Foreword ..............................I Important Safeguards and Warnings ....................IV Cybersecurity Recommendations ..................... VII Table of Contents ..........................X 1 Overview .............................. 1 Camera Components ........................1 LED Indicators ..........................2 Application Guidelines ......................... 2 2 Installing the Camera .......................... 3 Installation Tips.......................... -
Page 12: Overview

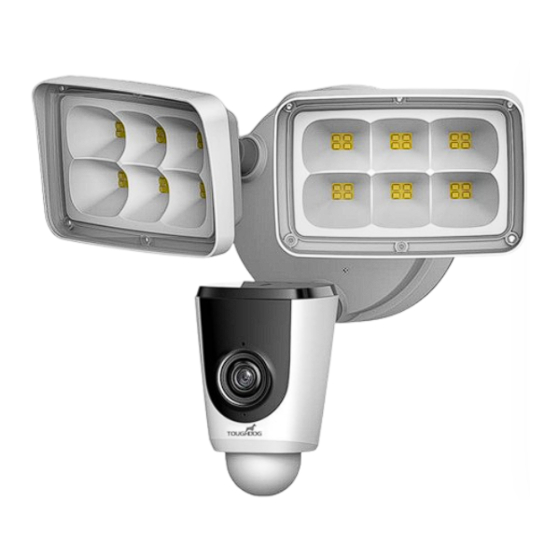

This device is compatible with TOUGHDOG NVRs and with the DMSS mobile application. The TDOFLIS2102-PIR is certified to the IP65 Ingress Protection standard, making it the ideal camera for indoor and outdoor surveillance at homes and small retail or dining establishments. -
Page 13: Led Indicators
LED Indicators LED Indicator Light Device Status Powered off. Rebooting after reset. Device malfunction. Try resetting the camera (see ‘Camera Steady Red Overview’ for details) and repeating the setup. Network connection failed. Try resetting the camera (see Flashing Red ‘Camera Overview’... -
Page 14: Installing The Camera
Installing the Camera The camera ships with all the components to mount the camera to a wall. Before installing the camera consider the following: Review the “Installation Tips” section to help you choose an ideal mounting location. Decide whether to run the cables through the wall or along the wall. ... -
Page 15: Parts List
Parts List Figure 2-1: TDOFLIS2102-PIR Package Contents Camera Assembly Refer to the illustration below to assist planning the installation location and method. Figure 2-2: TDOFLIS2102-PIR Mounting Assembly Inserting an SD Card Twist and slide the cover on the top of the camera towards the back and then remove. -
Page 16: Mounting The Camera To A Wall
Then, remove the existing device, remove any mounting plates, and disconnect the wires. Inspect the junction box to make sure it is watertight. Route the wires through the TDOFLIS2102-PIR mounting plate, then attach the mounting plate to the junction box using the bracket screws. - Page 17 Route the connected wires through the mounting place so they are secure inside the junction box. Connect the camera to the mounting plate by inserting the mounting screw through the center of the camera and tighten until secure. Apply a bead of silicone around the perimeter of the junction box where it contacts the installation surface to add an extra layer of waterproofing.
-
Page 18: Connecting To The Dmss App
Connecting to the DMSS App Connect the mobile device to the same 2.4 GHz WiFi network that used for the camera. Install the free DMSS mobile app from the Apple App Store or from the Google Play Store. Tap the DMSS icon to open the app. Tap Enter to setup the app. Note: Ensure your mobile device is connected to the same 2.4 GHz WiFi network that will be used with for the camera. -
Page 19: Configuring Alarms
Tap Save to save the device information and to display live video from the device. 3.1.2 Configuring Alarms Tap the three dots (…) to the right of the camera. Then, Tap Device Details. Tap Notifications and then tap the Alarm Notification switch to activate. Tap the Left Arrow to return to Device Details. - Page 20 a) Tap the Alarm and Siren Linkage switch to activate. b) Tap Alarm Ringtone Setting to set the sound for the siren. c) Tap the Left arrow twice to return to Device Settings. Tap Arming Settings. a) Tap the Motion Detection switch to activate motion detection on the camera. b) Tap Motion Detection Area.
-
Page 21: Configuring The Floodlight
h) Tap Detection Sensitivity to set the motion detection sensitivity. Tap a button for the desired sensitivity (1 through 5), then tap Save. Tap the Left Arrow twice to return to the Home screen. 3.1.3 Configuring the Floodlight Tap the three dots (…) to the right of the camera. Then, Tap Device Details. Tap Floodlight, and then tap Select Mode. -
Page 22: Turning On The Floodlight Or Siren
3.1.4 Turning on the Floodlight or Siren Tap More Functions, located at the bottom of the Live View screen. Tap the Bell icon to activate the siren and tap the Light icon to activate the floodlight. Tap the icon again to stop the siren or to turn off the floodlight. -
Page 23: Sharing The Camera
3.1.5 Sharing the Camera Tap Home. Tap the three dots (…) to the right of the camera to share. Then, Tap Device Details. Tap Device Sharing. Tap the Plus icon. Type the target DMSS account and click OK. -
Page 24: Troubleshooting
Troubleshooting Issue Solution Ensure you are using a 2.4GHz Wi-Fi network to configure the camera. The camera does not work with 5GHz networks. Cannot setup camera Ensure your mobile device is within 1 ft (30 cm) of the camera during setup.
