Tristar FR-6956 - Digital Crispy Fryer Manual

Table of Contents

Contents

1 SAFETY
2 PARTS DESCRIPTION
3 BEFORE THE FIRST USE
4 USE
5 Manual settings
6 Programmed modes
7 CLEANING AND MAINTENANCE
8 ENVIRONMENT
9 Support
10 Documents / Resources
- 10.1 Download manual

SAFETY

By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
The appliance must be placed on a stable, level surface.
This appliance is only to be used for household purposes and only for the purpose it is made for. In worst case the food can catch fire. (i.e. do not use more than one tea spoon of oil, no meat that will release to much grease or water intended for boiling foods.
This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.
To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
The appliance is to be connected to a socketoutlet having an earthed contact (for class I appliances).
If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.
Keep the appliance and its cord out of reach of children less than 8 years.
The temperature of accessible surfaces may be high when the appliance is operating.
The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
Surfaces indicated with this logo are liable to get hot during use.
In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimeter of free space around the appliance.
After the baking process the appliance needs to cooldown, this cooling process will activate automatically when the timer is done. Avoid to unplug the appliance from the net socket before the cooling process is finished because the remaining hot air can damage the appliance.
This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments.
- By clients in hotels, motels and other residential type environments.
- Bed and breakfast type environments.
- Farm houses.

SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local Authority or local store for recycling advice.

The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.

This product complies with conformity requirements of the applicable European regulations or directives.

The Eurasian Conformity mark (ЕАС) is a certification mark to indicate products that conform to all technical regulations of the Eurasian Customs Union.

The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.

This symbol is used for marking materials intended to come into contact with food in the European Union as defined in regulation (EC) No 1935/2004.

The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispose it separately, following the illustrated packaging symbols, for better waste treatment. The Triman logo is valid in France only.

Separate collection / Check your local municipal guidelines.

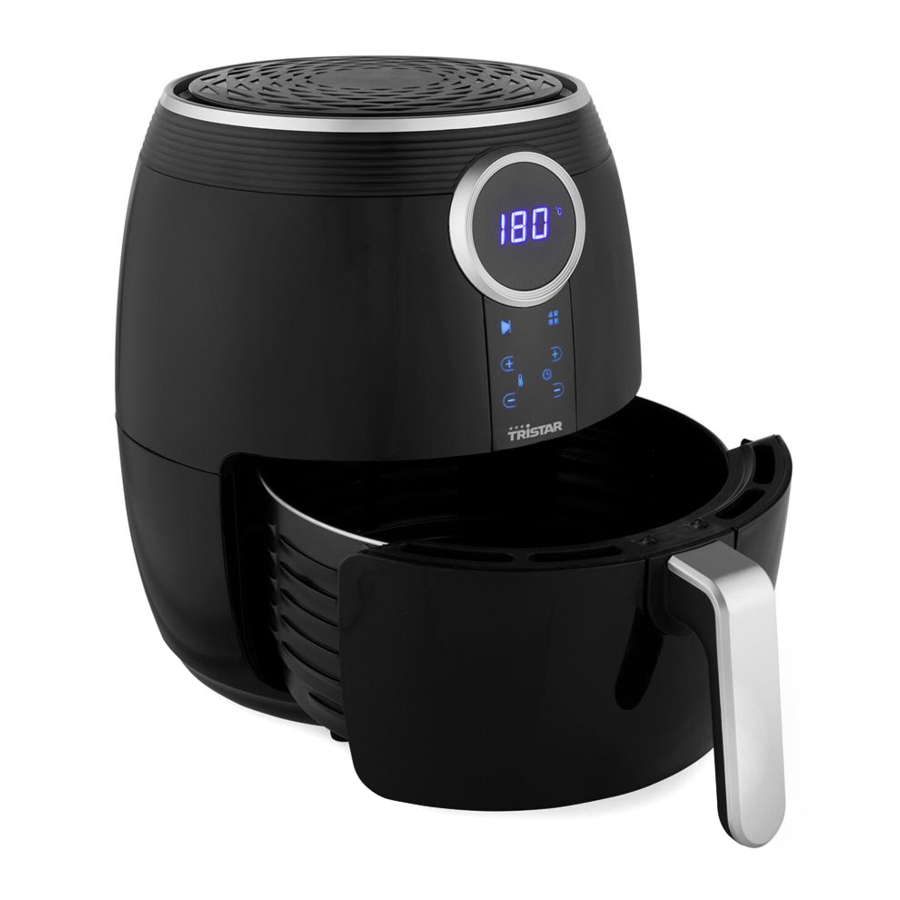

PARTS DESCRIPTION

Air inlet
Display
Removable grid (do not use without this grid)
Pan
Handle
Air outlet openings

BEFORE THE FIRST USE

Remove all packaging material.
Remove any stickers or labels from the appliance.
Thoroughly clean the parts with hot water, some washing-up liquid and a non-abrasive sponge.
Wipe the inside and outside of the appliance with a moist cloth.
Place the appliance on a stable, horizontal and level surface, do not place the appliance on non-heat-resistant surfaces.
When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.
Place the removable grid in the pan properly. NOTE: do not use the appliance without this grid.
This is an air fryer that works on hot air. Do not fill the pan with oil or frying fat.
In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimeter of free space around the appliance.

USE

Put the mains plug in an earthed wall socket.
Carefully pull the pan out of the air fryer.
Put the ingredients in the pan, make sure the removable grid is placed in the pan before you put in the ingredients.
Slide the pan back into the air fryer.
Do not touch the pan during and some time after use, as it gets very hot.
Only hold the pan by the handle.
Press the power button to turn on the appliance.

Manual settings

The time can be adjusted with the timer control buttons. Press the timer control buttons one time to increase or decrease the frying time by one minute. Press and hold one of the buttons to adjust the time faster. You can set the timer between 1 and 60 minutes.
The temperature can be adjusted with the temperature control buttons. Press the temperature control buttons one time to increase or decrease the temperature by 5 degrees. Press and hold one of the buttons to adjust the temperature faster. You can set the temperature between 80 and 200 degrees.
When the desired time and temperature are set, press the power button to start.

	Min-max amount (g)	Time (min)	Temperature (°C)	Shake	Extra information
Fries	300-700	10-18	200	shake
Homemade fries	300-800	16-20	200	shake	add 1/2 a tablespoon of oil
Frozen fish fingers	100-400	6-10	200		Use oven ready
Drumsticks	100-500	18-22	180
Hamburger	100-500	13-15	180
Springrolls	100-400	8-10	200	shake	Use oven ready
Cake	300	20-25	160		Use baking tin
Quiche	300	20-25	160		Use baking tin
Muffins	300	15-18	200		Use baking tin

Programmed modes

There are 8 frying programs included: CHIPS, MEAT, FISH, SHRIMP, STEAK, CAKE, PIZZA and CHICKEN. Use the mode button to choose between the programmed modes.

#	Symbol	Program	Temperature (°C)	Time (min)
1		Chips	200	15
2		Meat	180	25
3		Fish	160	20
4		Shrimp	160	20
5		Steak	180	20
6		Cake	160	30
7		Pizza	170	20
8		Chicken	200	20

When you press the power button, the Aerofryer will start the corresponding program. When you have chosen the wrong program, you can cancel by pressing the power button. After this you can select another function. It is also possible to adjust the chosen program by changing the time and temperature.
When you pull out the pan during the frying process, the device will shut off automatically within 5 seconds. When you reinsert the device, the program will resume.
To stop a program, press the power button. The device will shut off after 20 seconds.
Excess oil from the ingredients is collected on the bottom of the pan.
Some ingredients require shaking halfway through the preparation time. To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the air fryer.
When you hear the timer beep, the set preparation time has elapsed. The device will shut off after 20 seconds. Pull the pan out of the appliance and place it on a heatresistant surface.
Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.

Tips

Shaking smaller ingredients halfway during the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you've added the oil.
Do not prepare extremely greasy ingredients such as sausages in the air fryer.
Place a baking tin in the pan if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
You can also use the air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150°C for up to 10 minutes.

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait for the appliance to cool down.
Never immerse the device in water or any other liquid. The device is not dishwasher proof.
Clean the pan and aeroplate (removable grid) with hot water, some washing-up liquid and a non-abrasive sponge. The pan and aeroplate (removable grid) are not dishwasher-proof.
If dirt is stuck to the aeroplate (removable grid) or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the aeroplate (removable grid) in the pan and let the pan and the grid soak for about 10 minutes.
Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.
