Draytek VigorAP 1062C Quick Start Manual

Draytek VigorAP 1062C Quick Start Manual

802.11ax ceiling-mount access point
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

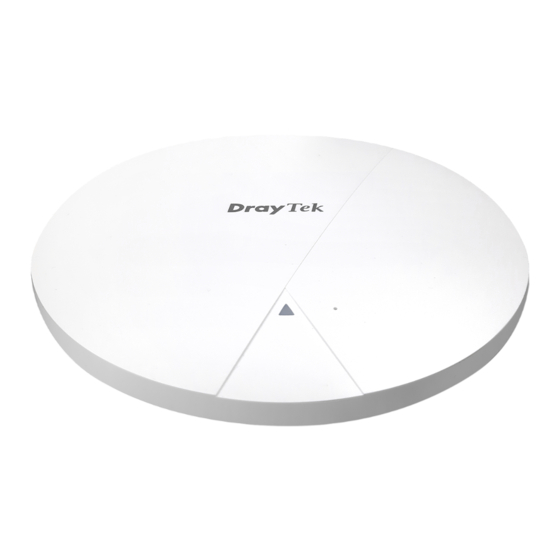

VigorAP 1062C
802.11ax Ceiling-mount Access
Point
Quick Start Guide
Version:
1.0_(draft)
Firmware Version: V1.4.0
(For future update, please visit DrayTek web site)
Date:
July 12, 2022
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VigorAP 1062C and is the answer not in the manual?

Questions and answers

Related Manuals for Draytek VigorAP 1062C

Summary of Contents for Draytek VigorAP 1062C

  • Page 1 VigorAP 1062C 802.11ax Ceiling-mount Access Point Quick Start Guide Version: 1.0_(draft) Firmware Version: V1.4.0 (For future update, please visit DrayTek web site) Date: July 12, 2022...
  • Page 2 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
  • Page 3 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type VigorAP 1062C is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://fw.draytek.com.tw/VigorAP 1062C/Document/CE/ Manufacturer: DrayTek Corp.
  • Page 4 Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 H Average active efficiency 83.3% 85.5% 86.2% I Efficiency at low load 10% 80.8% 83.7% 79.1% J No-load power consumption 0.06W 0.07W 0.10W *The external power supply used for each product will be model dependent. For more update, please visit www.draytek.com.

  • Page 6: Table Of Contents

    1. Package Content ....................1 2. Panel Explanation ....................2 3. Installation ......................3 3.1 Ceiling-mount Installation (Wooden Ceiling) ................3 3.2 Ceiling-mount Installation (Plasterboard Ceiling) ............... 4 3.3 Suspended Ceiling Installation ....................5 4. Connection and Configuration ................7 4.1 Notifications for Hardware Connection..................

  • Page 7: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. VigorAP 1062C Main Unit Quick Start Guide Kits & Screws Screws (Used for T-Rail Mounting) (Used for Ceiling Mounting) RJ-45 Cable (Ethernet)

  • Page 8: Panel Explanation

    Factory Reset Status Explanation Blue LED The system is in boot-loader mode. Blinking The system is in TFTP mode. Green LED Blinking The system is in AP mode and work normally. Red LED Blinking System error. VigorAP is turned off or not functioning. Interface Explanation Ethernet Port...

  • Page 9: Installation

    VigorAP can be installed under certain locations: wooden ceiling, plasterboard ceilings, light-weighted steel frame and wall. Place the bracket under the wooden ceiling and fasten four screws firmly. When the bracket is in place, fasten two screws firmly on the bottom of VigorAP.

  • Page 10: Ceiling-Mount Installation (Plasterboard Ceiling)

    Drill four holes in your ceiling using the ceiling mount bracket as a guide, and insert the four included wall plugs/screw anchors (i). Align the ceiling mount bracket with your wall plugs/screw anchors and use the four screws to fix it into place (ii). iii.

  • Page 11: Suspended Ceiling Installation

    You cannot screw into ceiling tiles as they are weak and not suitable for bearing loads. Your VigorAP is supplied with mounts (T-Rail brackets) which attach directly to the metal grid („T-Rail‟) of your suspended ceiling. Choose the correct size T-Rail bracket from the bundled package. Put the T-Rail brackets on the holes of the bottom side of the device.
  • Page 12 Attach the T-Rail brackets to the ceiling frame.

  • Page 13: Connection And Configuration

     Connect VigorAP to Vigor router (via LAN port) with Ethernet cable.  Connect VigorAP to PoE switch (via LAN port) with Ethernet cable. For connecting with PoE switch, do not connect the power adapter. VigorAP will get the power from the switch directly.

  • Page 14: Web Configurations

    You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be in the same subnet as the IP address of VigorAP 1062C. If there is no DHCP server on the network, then VigorAP ...
  • Page 15 Method 2: (a) Use a mobile phone to scan the QR code named with DrayTek Wireless App to download DrayTek Wireless APP. (b) After downloading, run the APP. (c) Click Quick Start Wizard. Next, scan the QR code named with Connect SSID.

  • Page 16: Customer Service

    If the device cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to “support@draytek.com”. Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com..
