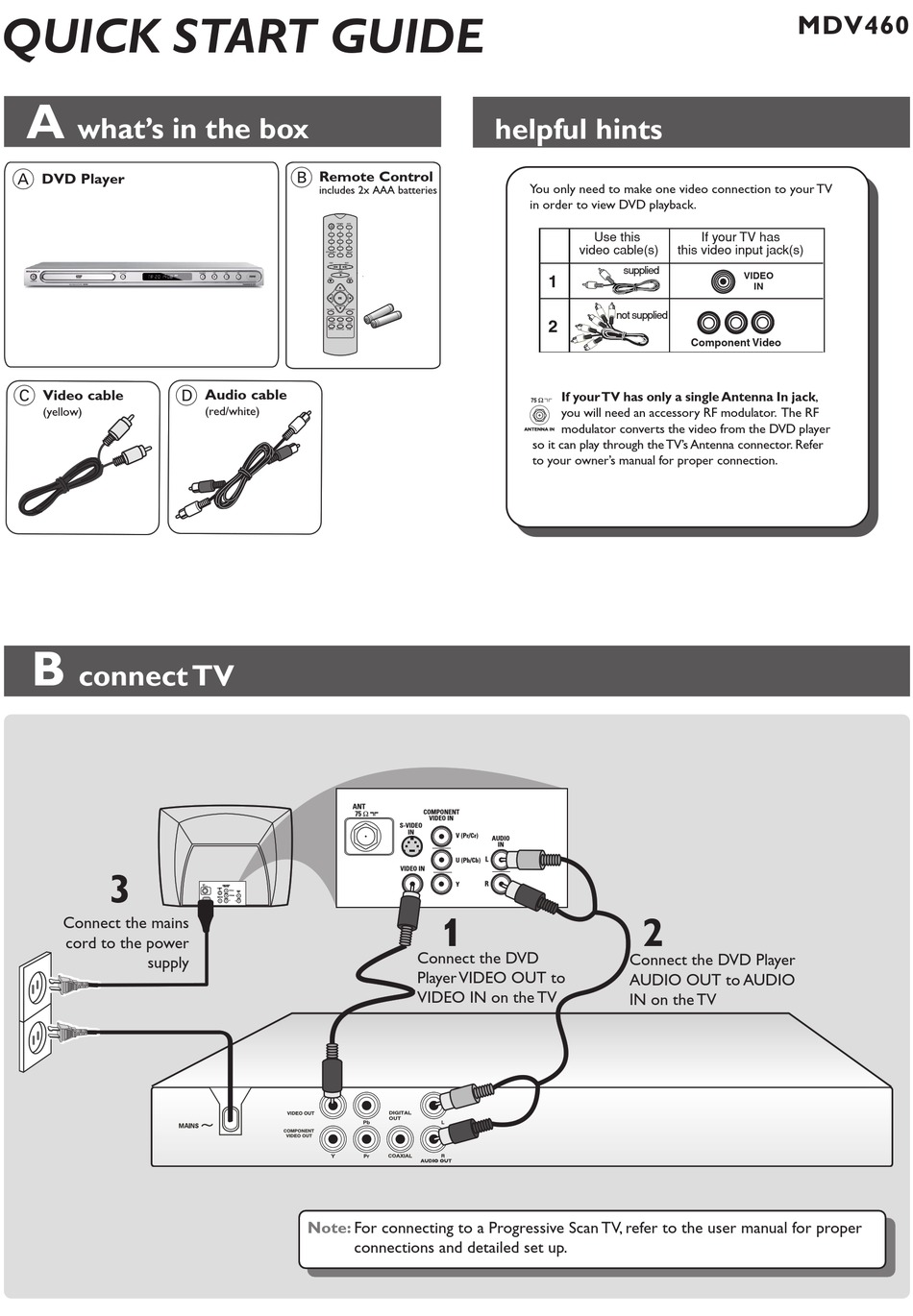

QUICK START GUIDE
A
what's in the box
A

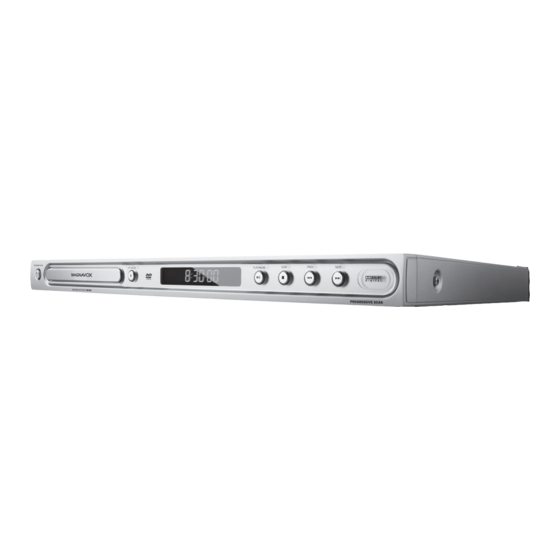

DVD Player
C
Video cable
(yellow)
B
connect TV
3
Connect the mains
cord to the power
supply
B
Remote Control
includes 2x AAA batteries
D
Audio cable
(red/white)
COMPONENT
VIDEO IN
S-VIDEO
IN
V (Pr/Cr)
AUDIO
OUT
U (Pb/Cb)
VIDEO IN
Y
Note:
helpful hints
ANTENNA IN
COMPONENT
VIDEO IN
S-VIDEO
IN
V (Pr/Cr)
AUDIO
IN
U (Pb/Cb)
VIDEO IN
Y
1
Connect the DVD
Player VIDEO OUT to
VIDEO IN on the TV
For connecting to a Progressive Scan TV, refer to the user manual for proper
connections and detailed set up.
You only need to make one video connection to your TV
in order to view DVD playback.
Use this
If your TV has
video cable(s)
this video input jack(s)
supplied
1
not supplied
2
Component Video
If your TV has only a single Antenna In jack,
you will need an accessory RF modulator. The RF
modulator converts the video from the DVD player
so it can play through the TV's Antenna connector. Refer
to your owner's manual for proper connection.
2
Connect the DVD Player
AUDIO OUT to AUDIO
IN on the TV
MDV460
VIDEO
IN
