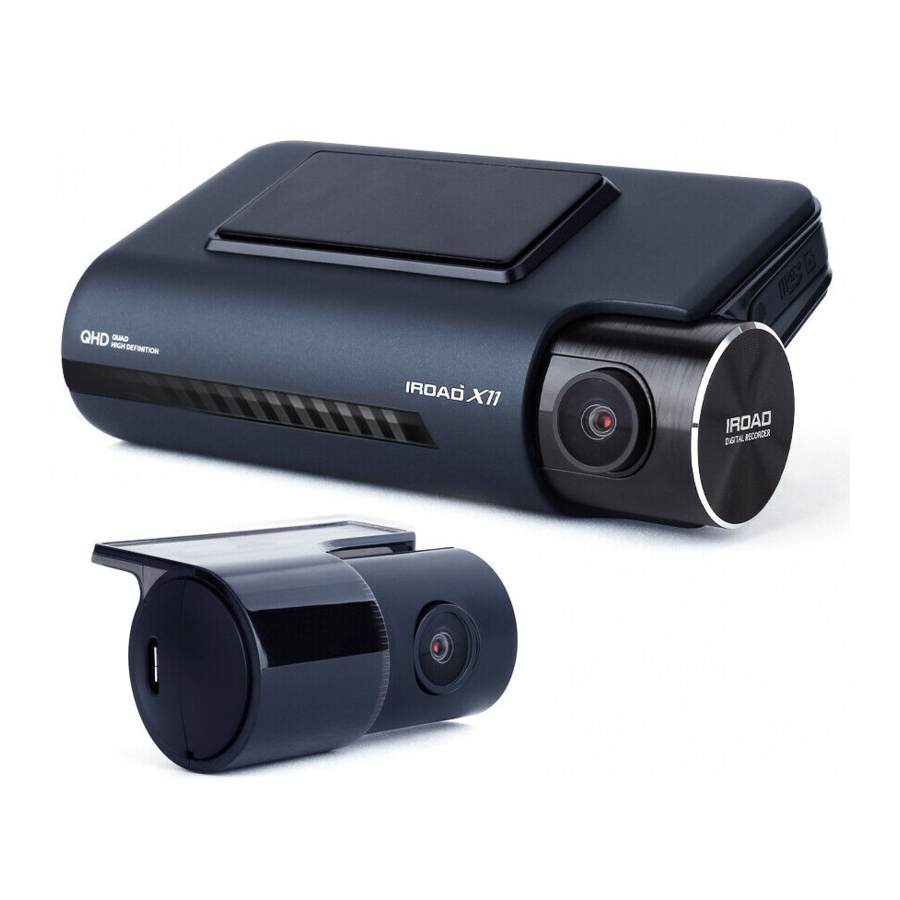

IROAD X11 - Dash Camera Quick Guide

SPECIFICATIONS

PACKAGE

Basic Components

• The Basic components may change without prior notice.

Optional Items

USING THE MOBILE APP

ANDROID DEVICE

1. On your Android device, open the "Google Play Store" and download and install "IROAD"
2. After running the application, register your device.

• Activate the registration stand-by mode by pressing the Wi-Fi registration button "Stand-by mode for the registration" (Voice guidance)

3. Tap Connect Now

• From the IROAD, select your dashcam.
• The SSID and model will be shown.
• Once the user selects the device, it will be registered & connected.

iOS DEVICE

2. On your iOS device, open the "App Store" and download and install 1 "IROAD"
3. After running the application, register your device.

• Activate the registration stand-by mode by pressing the Wi-Fi registration button "Stand-by mode for the registration" (Voice guidance)

3. Tap Connect Now

• follow the on-screen instructions to connect the product to your smartphone.

4. Select the Wi-Fi Network

• From the Wi-Fi setting menu on your smartphone, select the Wi-Fi network starting with "IROAD"

5. Enter Password

• Enter "qwertyuiop " in the password field
  Now the product is connected to your iOS device via Wi-Fi

• The password is the first row of the alphabet on the keyboard

USING THE MOBILE APP

1. Main Screen


• Displays information about the connected product.
• Move to the live view screen.
• Playback the recorded videos.
• Configuration the dashcam settings.

2. Playback recording for Front / Rear Camera


• Playback the recorded videos.
• Choose video clip from the list and save it.(Video or Image)

3. Configuration System


• Configuration the dashcam settings. (Once settings changed, the device will be rebooted)

USING THE PC VIEWER

The following provides brief information about the PC VIEWER screen layout.

1. Front/Rear video playback screen
2. Video Controller
3. Speed indicator
   (only when GPS/OBD2 is connected)
4. G-sensor information
5. Recording file list
6. Display the vehicle status
   Transmission / Brake, Acceleration
   Turn signal / RPM / Engine coolant temp
   Steering angle
   (only when OBD2 is connected)
7. map / Full-screen
   Switch screens (Front / Rear)
8. Dashcam settings
   Minimize / Maximize / close the PC viewer

PRECAUTION

• Do not disassemble or modify the product.
  Or else, it will be deemed as the user's fault and warranty will be voided.
• Do not connect to the device while driving(Viewing live recording etc), as it may causes serious accident.
• Do not remove SD card / power cable during firmware update.
  As it may cause device to malfunction or loss of data.
• Using of genuine IROAD memory card on our device is recommended.
  Failing to do so may cause system error or malfunctioning on the device.
• Real-time recording and playback via Wi-Fi might be delayed depending on the specification of the user's smart device. (Wi-Fi signal connection etc)
• Motion detection is initiated by the image sensor software.
  Motion detection may or may not be activated, as it will be depending on the surrounding environment and the voltage of the car.
• If the GPS signal strength is good, ADAS functions will be activated when the speed of the car is above the set speed. ADAS functions may not be fully activated due to the surrounding environment.
• Unauthorized installation of the uninterrupted fuse cable may cause malfunctioning on the device. Different types of vehicle will have different kind of installation ways.
  (Please contact professional engineer if you required any help regarding installation.)

WARRANTY

• CORVIT assures the quality of the product purchased.
• Warranty number is registered by CORVIT, Sharing of warranty card is strictly prohibited.
• After-sales Services will not be provided if the warranty card and proof of purchase is lost.
• Dash Camera(Front/Rear): 1 Year
  Memory Card, External GPS, Wifi Dongle: 6 Months
  OBD Scanner: 1 Year
  Cable(for Fuse, Rear, Cigar Power): No Warranty

BUTTON SCENARIO GUIDE

POWER OFF / ON

MODE	OPERATION	OPERATION EXPLANATION
POWER OFF	Press and hold the button ( ) for 3 seconds long.	"Shut down the system." will be signaled, and the device will be powered off.
POWER ON	Press and hold the button ( ) for 3 seconds long.	"Start recording." will be signaled, and the device will be powered on.

Wi-Fi OFF / ON

MODE	OPERATION	OPERATION EXPLANATION
Wi-Fi OFF	Press the button ( ) for 1 seconds long. "Ding" sound will signal.	"Wi-Fi power is off." will be signaled, and Wi-Fi connection will be unavailable.
Wi-Fi ON	Press the button ( ) for 1 seconds long. "Ding" sound will signal.	"Wi-Fi power is on." will be signaled, and Wi-Fi connection will be available.

• When 'OFF', the consumption power is reduced by 0.3w and the device operating time is increased by 10%.
• 'Wi-Fi ON/OFF' function allowing Users to turn Wi-Fi power on/off.
  Do not confuse it with 'Wi-Fi registration button'.
  When connecting to a smartphone, you must press 'Wi-Fi registration Button'
• Smartphones that have already been registered previously, Users do not have to re-registered even if the Wi-Fi on/off function is used
• Default setting - Wi-Fi function is ON.

Wi-Fi STAND BY MODE OFF / ON

MODE	OPERATION	OPERATION EXPLANATION
Wi-Fi STAND BY MODE OFF	Press the button ( ) shortly. "Ding-Dong" sound will signal.	"Stand-by mode for the registration is released." will be signaled, and Wi-Fi connection cannot be initiated.
Wi-Fi STAND BY MODE ON	Press the button ( ) shortly. "Ding-Dong" sound will signal.	"Stand-by mode for the registration." will be signaled, and Wi-Fi connection can be initiated.

AUDIO RECORDING OFF / ON

MODE	OPERATION	OPERATION EXPLANATION
AUDIO RECORDING OFF	Press the button ( ) for 4 seconds long. "Ding-Dong" sound will signal.	"Stop recording the voice." will be signaled, and will be recorded without audio.
AUDIO RECORDING ON	Press the button ( ) for 4 seconds long. "Ding-Dong" sound will signal.	"Start recording the voice." will be signaled, and will be recorded with audio.

MANUAL RECORDING

MODE	OPERATION	OPERATION EXPLANATION
MANUAL RECORDING	Press the button ( ) shortly.	"Manual recording." will be signaled, and start manual recording.

FORMATTING THE MICROSD CARD

MODE	OPERATION	OPERATION EXPLANATION
FORMATTING THE MICRO SD CARD	Press the button ( ) for 7 seconds long.	"On formatting the memory card, Please wait start recording" will be signaled, Format the microSD card.

CERTIFICATION

Model: IROAD X11
Product: IROAD DASHCAM
Verification Number: R-R-JWW-IROADX11
JAWEONCNC Co., Ltd
Made in Korea

www.iroad.sg
