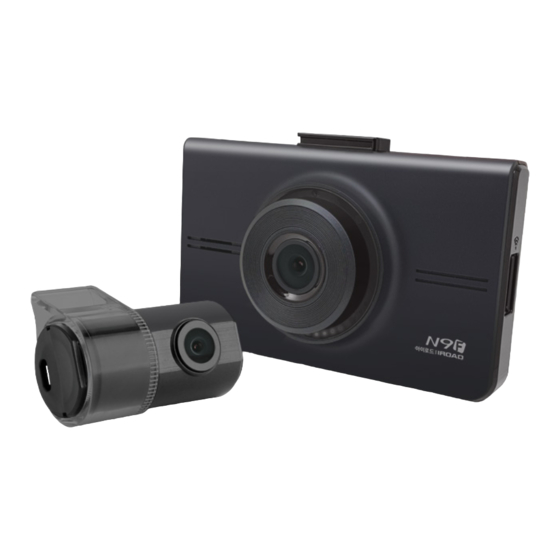

IROAD N9F
USER GUIDE
To ensure safety usage, please read this manual carefully before installation and follow the instructions herein.
Store this manual in a secure place for future reference.
IROAD reserves the rights to change or modify the contents of this manual at any time without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N9F and is the answer not in the manual?

Questions and answers

Related Manuals for IROAD N9F

Summary of Contents for IROAD N9F

  • Page 1 To ensure safety usage, please read this manual carefully before installation and follow the instructions herein. Store this manual in a secure place for future reference. IROAD reserves the rights to change or modify the contents of this manual at any time without prior notice.

  • Page 2: Table Of Contents

    INDEX BEFORE USING LCD MENU HOW TO CONNECT ....51 USER INFORMATION ......1 MAIN SCREEN ........21 iOS DEVICE ..........52 PRECAUTION ........2~3 PLAYBACK ..........22 ANDROID DEVICE ......... 53 LIVE SCREEN ........23 PRODUCT INFORMATION APPLICATION CAMERA ..........

  • Page 3: User Information

    1. USER MANUAL...

  • Page 4: Precaution

    2. PRECAUTION...

  • Page 5: Product Information

    3. PRODUCT INFORMATION...

  • Page 6: Product Overview

    4. PRODUCT OVERVIEW 720P Dedicated PC Viewer & Smartphone Playback HARD Setting & various functions on IROAD PC Viewer and Smartphone. WARE Playback functions are available for both PC and Smartphone. Firmware Update Continuous improvement and performance maintain product stability. Easy and simple upgrade through...

  • Page 7: Package Component

    5. PACKAGE COMPONENT All pictures shown are only for illustration purposes only. The picture of this package may differ from the actual product. IROAD N9F USER GUIDE Rear Camera + Cradle Uninterrupted User Manual Wi-Fi Dongle Fuse Cable Front Camera...

  • Page 8: Name Of Each Part

    6. NAME OF EACH PART Camera Lens GPS LED Micro SD Card Slot Rear Camera Cable Slot Security LED REC LED Power Button Security LED Transparent Cradle ExternalGPS Connector Wi-Fi USB Slot Camera Lens Cradle Screws Rear Camera Cable Slot(V-IN) Transparent Cradle 3.5inch Touch Screen LCD Power Connector(DC-IN)

  • Page 9: Specification

    -30 ~ 75ºC (Storage temperature : -30 ~ 90ºC) / 10 ~ 95% Security LED Viewer IROAD PC Viewer : Window 7/8/10 (32Bit/64Bitsupport), Mac (OS X 10.7 64Bit and higher version) Application IROAD App (Android 6.0, iOS 10 or higher version)

  • Page 10: Installation

    8. INSTALLATION Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Use dry cloth to wipe the area on the windscreen where the device will be installed on it. Make sure to install the device where the vision will not be blocked during driving.

  • Page 11: Installation

    9. INSTALLATION Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. 4. Connect power cable to DC-IN slot 5. At the other end of the cable, connect it to the vehicle fuse box or cigar jack power. Procedure on installation for uninterrupted fuse cable, Please refer to page 10 or FAQ for connecting fuse power cable.

  • Page 12: Uninterrupted Fuse Cable

    10. UNINTERRUPTED FUSE CABLE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. The LBP function will prevent the car battery from continuously discharging during parking mode when the device detected the voltage dropping below the preset voltage.

  • Page 13: Product Operation

    11. PRODUCT OPERATION Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. - All LED will be turned on when the engine is on. Power ON - There will be a voice guidance to assist the user once the device starts recording. - GPS LED light will be off when there’s no GPS connection.

  • Page 14: Button Scenario Guide

    12. BUTTON SCENARIO Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. - Press and hold the button for 5 seconds long. Power OFF - “Shut down the system.” will be signaled, and the device will be powered off. - Press and hold the button for 5 seconds long.
  • Page 15 13. BUTTON SCENARIO Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. - Press the button 3 times shortly. “Ding” sound will signal. Touch Calibration - Screen will be switched to recalibration screen.

  • Page 16: Recording Mode

    14. RECORDING MODE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. - Once the power is connected, the device will boot up and start recording. Normal Recording - Security LED flickers once every 1 seconds. - Once the device detects any shock (REC LED light will flickers), Event Recording it will be recorded under Event recording mode.

  • Page 17: Voice Guidance

    15. VOICE GUIDANCE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Start recording. Shut down the system. Stand-by mode for the registration Complete the registration. Stand-by mode for the registration is released No Wi-Fi dongle Users connected.

  • Page 18: Voice Guidance

    16. VOICE GUIDANCE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Shut down the system to protect the battery of car. Restart the system to protect the battery of car. Rear camera is connected. Rear camera is disconnected.

  • Page 19: Video Folders In Sd Memory Card

    17. VIDEO FOLDERS IN SD MEMORY CARD Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 20: Firmware Update

    18. FIRMWARE UPDATE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.
  • Page 21 19. FIRMWARE UPDATE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Firmware Do you want to update the latest firmware? Cancel...

  • Page 22: Firmware Update

    20. FIRMWARE UPDATE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 23: Main Screen

    21. MAIN SCREEN Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. 2018 10/24 10:30 12.4V 2018 10/24 10:30 12.4V When they system is booted, the camera starts recording with voice saying "Start Recording" and you will see the above footage on the LCD screen.

  • Page 24: Playback

    22. PLAYBACK Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. 2018 10/24 10:30 12.4V When the user selects the Playback button, it will show a list of saved recordings as shown on the picture above. ※...

  • Page 25: Live Screen

    23. LIVE SCREEN Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. 2018 10/24 10:30 12.4V Tap on the live button on the main screen ※Live PIP function is not available during ADAS is activiting. While playing back a front camera recording, touch the screen once to convert to the rear camera view.

  • Page 26: Camera

    Press 'Front cam' button to adjust the resolution, brightness of the camera, Night Vision and FPS of event and normal mode. Front camera is configurable with night vision to improve the recording definition during night time. IROAD N9F has a 'fixed resolution' of 1080P for front , 720P for rear camera.

  • Page 27: Camera

    25. CAMERA Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. The value of Normal FPS(Frame per second) cannot exceed the value of Event FPS. If you set the Normal(FPS) higher than the Event(FPS), the values will be automatically set according to the Event(FPS) value. Changes made will be saved when returning to the main screen.

  • Page 28: Time

    26. TIME SETTING Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Tap on time button on the setup screen to adjust date/time, auto rebooting time and timezone setting. Date/Time setting By selecting the date/time button, it allow user to adjust the date/time. Automatic reboot Activate/deactivate automatic reboot by toggling it and the time for rebooting can be scheduled by keying it in.

  • Page 29: Sound

    27. SOUND Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Tap on Sound button on the setup screen to activate/deactivate audio recording and voice guidance Volume setting Choose among Low/Basic/High. Audio recording Toggle it to turn on/off audio guidance.

  • Page 30: Adas

    28. ADAS Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. User can adjust the setting whether to on or off the ADAS function. [ADAS, FCWS, FVDW, LDWS] ADAS Function (Advanced Drivers Assistant Systems) ADAS Use / Not Use FCWS Function (Front Collision Warning Systems) FCWS Use / Not Use...
  • Page 31 29. ADAS Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. User can adjust the sensitivity of LDWS, FCWS and the speed for LDWS by selecting the “detailed setting button” as shown on the picture above. FCWS sensitivity Choose among Low, Basic, High LDWS sensitivity...

  • Page 32: Event

    30. EVENT Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Select the Event button on the setup screen to adjust the parking/impact/motion settings, buzzer and recording time (When there’s an event occurred). Recording time Steer the arrow shown to increase/decrease the recording time.

  • Page 33: Impact / Led

    31. IMPACT / LED Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Tap on Impact/LED button on the system screen to adjust security LED and sensitivity while a car is parked. Security LED Toggle it to activate/deactivate security LED light.

  • Page 34: Voltage

    32. VOLTAGE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Tap on LBP button to voltage control, LBP on/off and winter LBP setting are available Toggle it to activate/deactivate LBP function Winter LBP Toggle it to activate/deactivate Winter LBP function (The cut-off voltage is fixed on 12.3V from Nov to Mar.) POWER OFF Tap on the Power button to adjust the power off voltage value.
  • Page 35 33. VOLTAGE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Tap on Auto-off button to timer control, Hight temperature shutdown on/off and OFF Timer setting are available Timer Toggle it to set Timer function High Temperature shutdown Once the temperature reaches (75°C) after parking mode, the power is being cut off automatically to protect the user’s device.

  • Page 36: Memory Space Management

    34. MEMORY Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Tap on Memory button to memory control, Overwrite on/off, Memory allocation and formatting are available Event & Normal Change the percentage of memory space allocated between event folder and normal folder. ※Be aware that all the data will be lost once the setting is changed.

  • Page 37: Lcd

    35. LCD Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Tap on Timer button to LCD timer control, Always on (clock / Live), auto hibernation setting are available Auto hibernation User can select the timer off timing that they wish to set, press the back button to save the configuration. If the user select “Always ON (Clock) mode”, it will enable the device screen to project the status of the date, time and voltage instead.
  • Page 38 36. LCD Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. To start the touch calibration. Touch the center of cross. Tap on Calibration button to adjust touch correction Calibration Run touch correction when select on the screen if the touch screen is not smooth. Follow the instruction shown on the screen.

  • Page 39: Version

    37. VERSION Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Tap on Version button to check installed firmware / application of Dash cam. Tap on the LOG button to see the history of all the previous events happened when the camera was in use.
  • Page 40 38. INSTALLATION & RUNNING THE VIEWER Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 41: Dedicated Pc Viewer

    39. DEDICATED PC VIEWER Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Front/rear image related Front/Rear image switch Cutting Front/Rear image in half Front/rear image PIP Color/Black&white mode switch Playback Recording Open Play, Stop Repeat event Step Reverse, Step...
  • Page 42 40. DEDICATED PC VIEWER Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 43: Dedicated Pc Viewer

    41. DEDICATED PC VIEWER Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 44: Dedicated Pc Viewer

    42. DEDICATED PC VIEWER Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 45: Dedicated Pc Viewer

    43. DEDICATED PC VIEWER Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 46: Dedicated Pc Viewer

    44. DEDICATED PC VIEWER Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 47: Dedicated Pc Viewer Setting

    45. DEDICATED PC VIEWER SETTING Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 48: Dedicated Pc Viewer

    46. DEDICATED PC VIEWER SETTING Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 49: Dedicated Pc Viewer

    47. DEDICATED PC VIEWER SETTING Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. ADAS...

  • Page 50: Dedicated Pc Viewer

    48. DEDICATED PC VIEWER SETTING Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. ※ This is a personal information tab. Please prevent the information from leaking. Be aware that user will not be able to view the recording if user fail to login when the password in forgotten. (SD card lock)

  • Page 51: Dedicated Pc Viewer

    49. DEDICATED PC VIEWER SETTING Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 52: Dedicated Pc Viewer Setting

    50. DEDICATED PC VIEWER SETTING Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.
  • Page 53 51. SYNCING WITH SMARTPHONE Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement.

  • Page 54: How To Connect

    52. HOW TO CONNECT Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Settings Wi-Fi Wi-Fi IROAD_XXX_XXXX CHOOSE A NETWORK... IROAD Other... 2018 10/24 10:30 12.4V Cancel Enter Password Join Password Password qwertyuiop...

  • Page 55: Android Device

    53. HOW TO CONNECT Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. 12:30 12:30 12:30 MY DEVICE : IROAD XXX Ver 2.0.0 18.08.24 Please add Please add IROAD DASH CAM IROAD DASH CAM device.

  • Page 56: Main Screen/Live View

    54. MAIN MENU / LIVE VIEW Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. LIVE VIEW MY DEVICE : IROAD XXX Ver 2.0.0 18.08.24 View Guide Line Liveview...

  • Page 57: Recording List, Playback, Back Up

    55. LIST OF RECORDINGS & PLAYBACK Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. 2018/05/08 03:19:02 Normal Recording list more 2018/05/08 03:19:02 Normal 2018/05/08 03:18:02 Normal 2018/05/08 03:17:02 Normal 2018/05/08 03:16:02 Normal 2018/05/08 03:15:02 Normal 2018/05/08 03:14:02...

  • Page 58: Settings

    56. SETTINGS Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Recording FRONT CAM Resolution 1080p, FHD Brightness Default Normal (FPS) 30 fps Event (FPS) 30 fps Night Vision REAR CAM Resolution 720p, HD Brightness Default Normal (FPS)
  • Page 59 57. SETTINGS Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Time Sound Auto Reboot Volume Medium REBOOT TIME RECORD 03:00 Audio Recording NOTIFICATION Daylight Saving Time Voice Guidance Timezone (GMT +09:00) Seoul... Event Buzzer...
  • Page 60 58. SETTINGS Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. ADAS ADAS LANE DEPARTURE WARNING SYSTEM LDWS Activation Speed of LDWS 50 Km LDWS Sensitivity Medium FRONT VEHICLE DEPARTURE WARNING SYSTEM ※ ADAS configuration change is available only when there is GPS connection, FVDW otherwise it won't be applied FORWARD COLLISION WARNING SYSTEM...
  • Page 61 59. SETTINGS Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. Event Impact Impact Sensitivity Parking Mode Parking Mode Sensitivity Medium Motion Detection POST-IMPACT RECORDING TIME 20 Seconds EVENT RECORDING CAPACITY Capacity 40 % Warning: If this setting is changed, all recorded data will be removed.

  • Page 62: Settings

    60. SETTINGS Menu and function can be changed without prior notice by sudden firmware upgrade or product enhancement. System Info LOW BATTERY PROTECTION Battery Protection Power Off 12 V / 24 V Use the low voltage shutdown function to safely protect the car battery.

  • Page 63: Troubleshooting

    2. 3rd party players may not fully support the recording video format. try reformatting the memory card and insert back to the device and test again. 3. If error occurs during recording, contact IROAD After-sale Service 3. User is required to insert the memory card into the memory card reader for further enquiries.
