WIRED SMART
LENS CONTROLLER

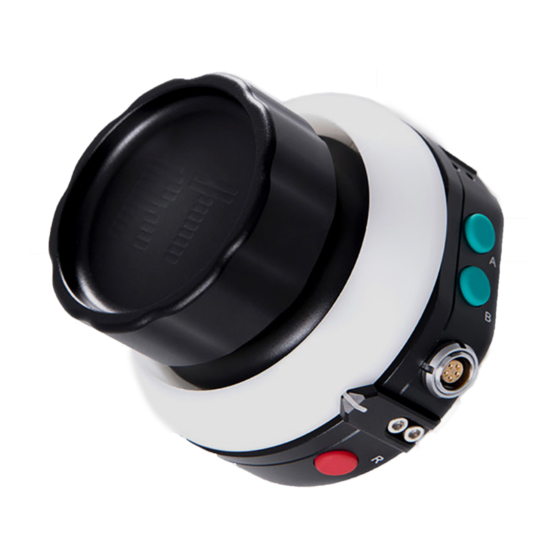

Reliably control your camera lens with the Teradek
RT Smartknob Wired Smart Controller. Use the
included cable to connect the Smartknob to an
MK3.1 or Latitude receiver to actuate focus or iris
motors, or connect directly to a RED camera and
seamlessly operate the internal EF motors through
the camera body in Stand-alone mode.
POWER AND CONNECT
NOTE:
The camera serial communication setting
must be set to RCP (Redlink Command Protocol) for
the unit to operate. To change the settings on the
camera's UI, navigate to:
(DSMC) SETTINGS>SETUP>COMMS>SERIAL>RCP
(DSMC2) SETTINGS>COMMS>SERIAL>RCP
Stand-Alone operation:
Connect the Smartknob controller to the camera
and power source using the included 6-pin Y cable.
Accessory operation:
Connect the Smartknob controller to the LATITUDE
receiver using a 5-pin Wired Mode Cable.
NOTE:
Only the Focus Knob and the record button
will function in Accessory Mode.
Teradek regularly releases new firmware versions to improve performance, add new features, or to fix vulnerabilities.
Visit https://www.teradek.com to update your device with the latest firmware.
J

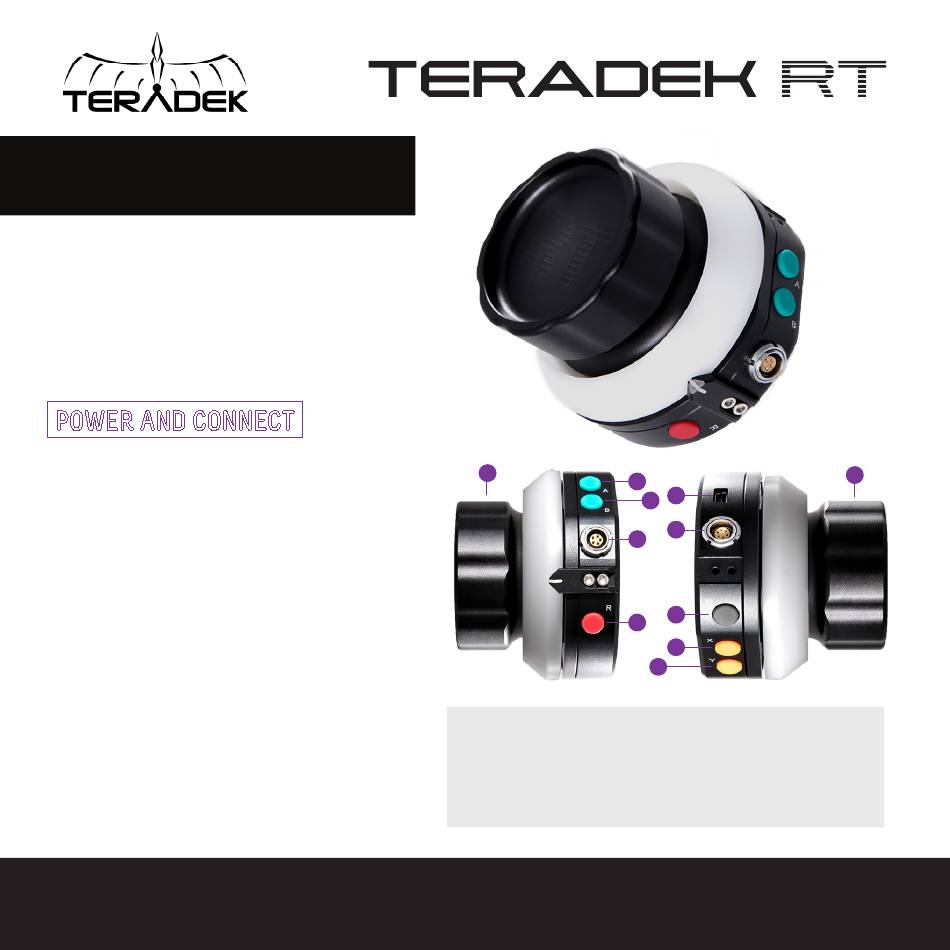

A:
Configurable button (A)
B:
Configurable button (B)
C:
Receiver/Latitude input
D:
Configurable button (R)
(R)
E:
Mini USB
SMARTKNOB
A
E
B
F
C
G
D
H
I
F:
Power input
G:
Configurable button (W)
H:
Configurable button (X)
I:
Configurable button (Y)
J:
Focus knob
J
