Please handle carefully & read these instructions fully before using!!
Overview
The Train-Tech RL1 Relay Controller incorporates two built in relays to switch high power low voltage
loads controlled by Track Sensors, Sensor Signals, Mimic Switches or DCC Accessory commands.
Please read these instructions carefully.
Connections
Underside – Foam pad
This protects connections
and provides insulation
from circuit board heat.
DO NOT REMOVE PAD!
Instruction manual contents:
• Overview with Connections and Troubleshooting:
• Relay control using Track Sensors or Sensor Signals (can be powered by DCC or DC)
• Relay control using DCC Accessory Commands (DCC only)
• Relay control using Mimic Switches (can be powered by DCC or DC)
• Connecting to the relays – hints and tips on how to connect devices to be controlled
• Automatic Train Control for multiple trains using a Sensor Signal or Track Sensor
• Automatic Train Control for a single short stop using a Sensor Signal or Track Sensor
• ABC Braking for DCC Automatic Train Control
Caution - only ever connect with all power turned off and ensure you never touch any
other connections or components otherwise permanent damage will result.
Troubleshooting
This product is designed to be easy to connect and use but here are a few tips which may help should you
have problems following installation. Remember only ever wire and install with all power turned OFF.
• If wishing to control Relays using DCC Accessory addresses you must first set your DCC controller to
accessory command mode to set up and use it – refer to your controller manufacturers instructions.
• Use adequate thickness cables to connect Relay outputs to the models it is controlling.
• Please note that it is normal for the base of the Relay Controller to get very warm – do not remove the
foam base which is fitted for protection and allow space for adequate airflow.
• Note that you should include appropriate suppression particularly for trains, motors and solenoids using
capacitors, chokes etc to prevent interference to other train control products and domestic appliances
•
• ABC braking technology is complex and setting up CV commands and wiring Diode modules correctly
varies between DCC decoder manufacturers, so refer to their detailed instructions for specific decoders.

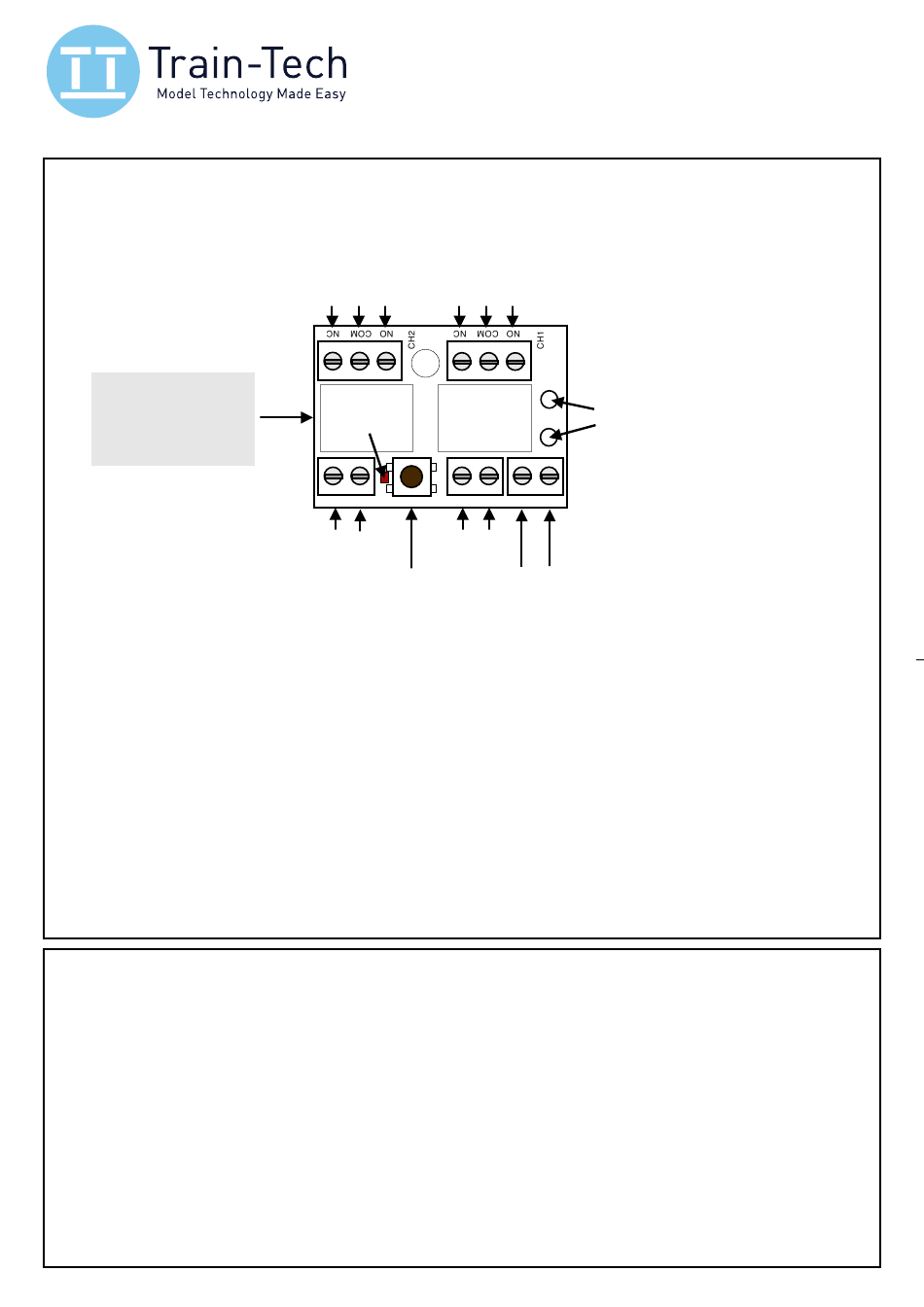

Channel 2
Channel 1
Relay contacts
Relay contacts
LED
indicator
S
M
LEARN
DCC/DC
Sensor Mimic
Power in
Control Inputs
DC/DCC
Learn/Set
Button
1
RL1 Relay Controller
Mounting Holes
(3mm max)
S
M
Sensor Mimic
Control Inputs
Document Ref D779766/2 DP300420
page 1
page 2
page 3
page 4
page 5
page 6
page 7
page 7
©Train-Tech 2020
