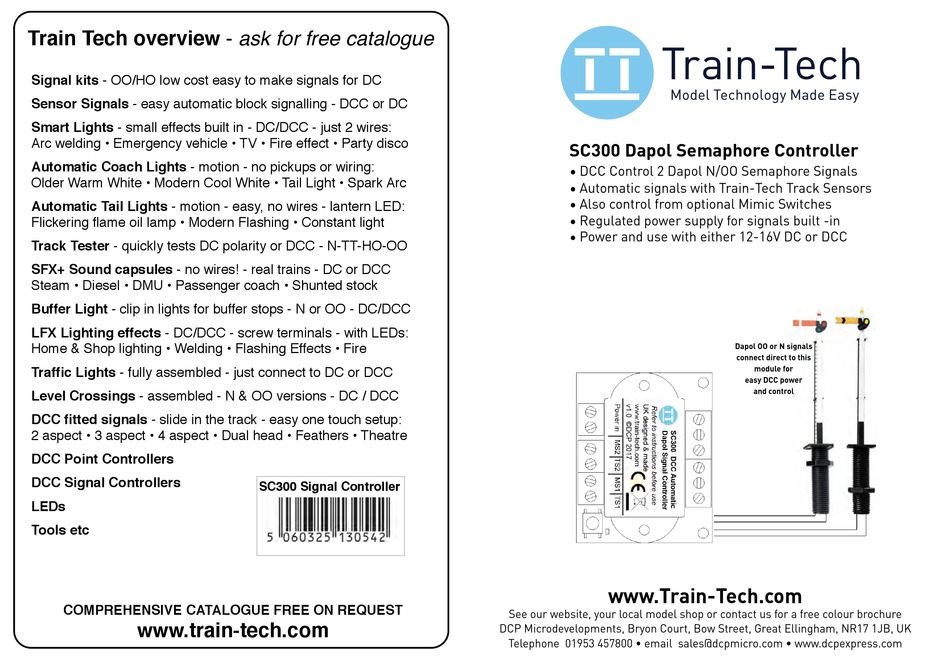

SC300 Signal Controller
SC300 Dapol Semaphore Controller
• DCC Control 2 Dapol N/OO Semaphore Signals
• Automatic signals with Train-Tech Track Sensors
• Also control from optional Mimic Switches
• Regulated power supply for signals built -in
• Power and use with either 12-16V DC or DCC
www.Train-Tech.com
See our website, your local model shop or contact us for a free colour brochure
DCP Microdevelopments, Bryon Court, Bow Street, Great Ellingham, NR17 1JB, UK
Telephone 01953 457800 • email sales@dcpmicro.com • www.dcpexpress.com
Dapol OO or N signals
connect direct to this
module for
easy DCC power
and control
Advertisement
Related Manuals for Train-Tech SC300
Summary of Contents for Train-Tech SC300
- Page 1 • DCC Control 2 Dapol N/OO Semaphore Signals Older Warm White • Modern Cool White • Tail Light • Spark Arc • Automatic signals with Train-Tech Track Sensors • Also control from optional Mimic Switches Automatic Tail Lights - motion - easy, no wires - lantern LED: •...
- Page 2 Making it easy…. The SC300 can be powered either by DC or DCC - on DCC the SC300 can connect directly to the nearest DCC track to minimise wires - it takes both its commands and power from the rails.
- Page 3 Locating the SC300 As most of the wiring to the SC300 is for the signals we suggest that it is mounted under the baseboard close to where at least one of the signals are. It can be held in place using small screws with a max diameter of 3mm through the 2 holes the top corners - make sure it is not mounted on any conductive or metallic surfaces as there are many exposed connections underneath.
- Page 4 Each signal output has an accessory ‘address’ assigned to it and with One Touch™ DCC this is very quick and easy to set up. The SC300 has 2 signal outputs and you can set each to any address you choose. If you are using a distant and a home signal on the same line you can also give them both the same DCC address so that they change at the same time like the real thing.
- Page 5 Digital DCC or Analogue 9-16 Volts DC and one wire links from the middle socket of the Track Sensor to a TS input on the SC300. If used with DCC a Track Sensor can be clipped straight into some types of track in the power clip slots (eg Hornby or Bachmann), but if not the slide-in fingers can be cut off and the two pads wired to DCC or 9-16 Volts DC - see below.
- Page 6 - the LED will now flash 5 times to show that the two outputs are synchronised. • To take the SC300 out of paired mode press the Learn button for 5 seconds again - the LED will flash 3 times to indicate it is back into standard independant mode.
- Page 7 There are two types of Mimic Switch available; toggle (MS1) and push button (MS2) and they only need 2 wires to connect to the same power supply as the SC300 and 1 wire to the terminal marked MS. If you have several Mimic switches on a panel all the power terminals can be connected together and just a single wire to each SC300 making wiring neat and simple.
- Page 8 - the LED will now flash 5 times to show that the two outputs are synchronised. • To take the SC300 out of paired mode press the Learn button for 5 seconds again - the LED will flash 3 times to indicate it is back into standard independant mode.
