MARWOOD V28 Quick Start Manual

Tvcb blocks with fences

General Information

Before any work commences, the site must carry a site-specific risk assessment. This should include

the right PPE to use, the number of persons required to safely complete the project, the area/ground

condition, elevation or inclination.

The weight of the V28 TVCB is 2500kg. Length is 3000mm, Height is 800mm and Width is 450mm.

The V28 TVCB blocks will no longer conform to BS EN 1317 when the gate/fences are fitted.

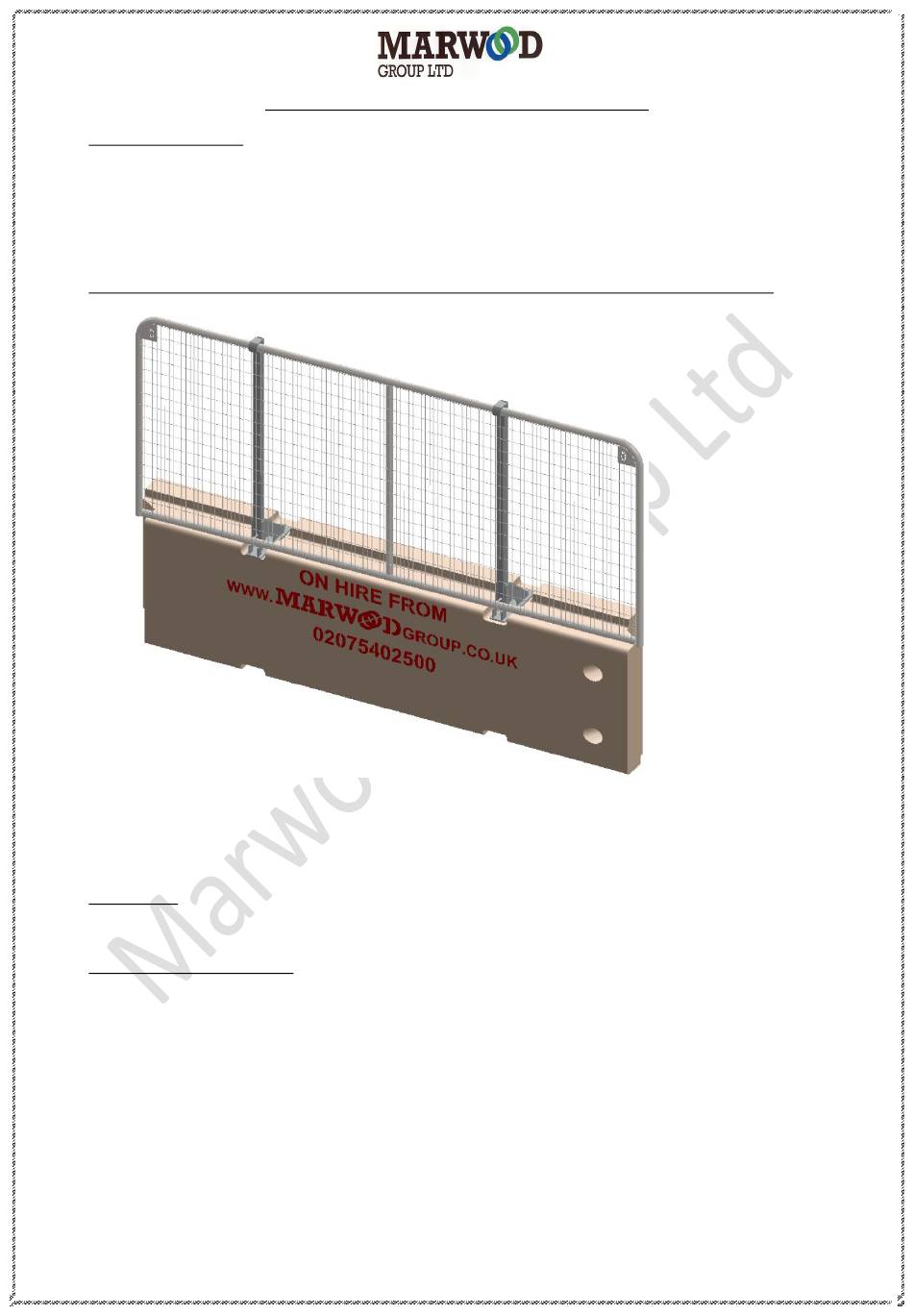

Photo for illustration purpose only

The overall fence size is approx 3120mm x 1292mm. The weight of the fence is approximately 41kg.

The weight of the post is approximately 12kg.

No tools are supplied by Marwood Group Ltd.

As a guide, to the complete installation, it requires a minimum of 2 persons with appropriate tools.

The tools may vary subject to the site procedures, site competent person and specific risk assessment.

Always keep fingers/hands clear from any trapping and crushing areas.

✓ Impact wrench (cordless)

✓ Extension bar to suit

✓ 36mm socket, extension bar, ratchet or nut runner

✓ 17mm socket for U bolt to secure fence base tube to post bracket, plus extension,

ratchet or nut runner

✓ 36mm ring spanner to tighten the M24 bolts up to secure the post down to the block.

Author: Technical Specifier

Instructions V28 TVCB Blocks with Fences

www.marwoodgroup.co.uk

MG891/1222

Table of Contents

Do you have a question about the V28 and is the answer not in the manual?

Page 1 PPE to use, the number of persons required to safely complete the project, the area/ground condition, elevation or inclination. The weight of the V28 TVCB is 2500kg. Length is 3000mm, Height is 800mm and Width is 450mm. The V28 TVCB blocks will no longer conform to BS EN 1317 when the gate/fences are fitted.
Page 2 Fig B Fig A1 Fig A Fig C Fig D Fig E Fig F Fig H Fig G Fig I Author: Technical Specifier www.marwoodgroup.co.uk MG891/1222...
Page 3 Refer to Fig A and B, place the posts on the two V28 fixing holes. Secure the post base by using two M24 x 50 bolts. Do not tighten any bolts at this stage. (Use the dedicated V28 spanner if supplied as in A1) Repeat the above process for the desired length of barrier and required fences, Fig C.
Page 4 Marwood Note! Marwood Group Ltd always recommends that a site survey and a full risk assessment must be carried out before using the equipment. It is the end user’s responsibility to make sure the system is suitable for their intended use.
