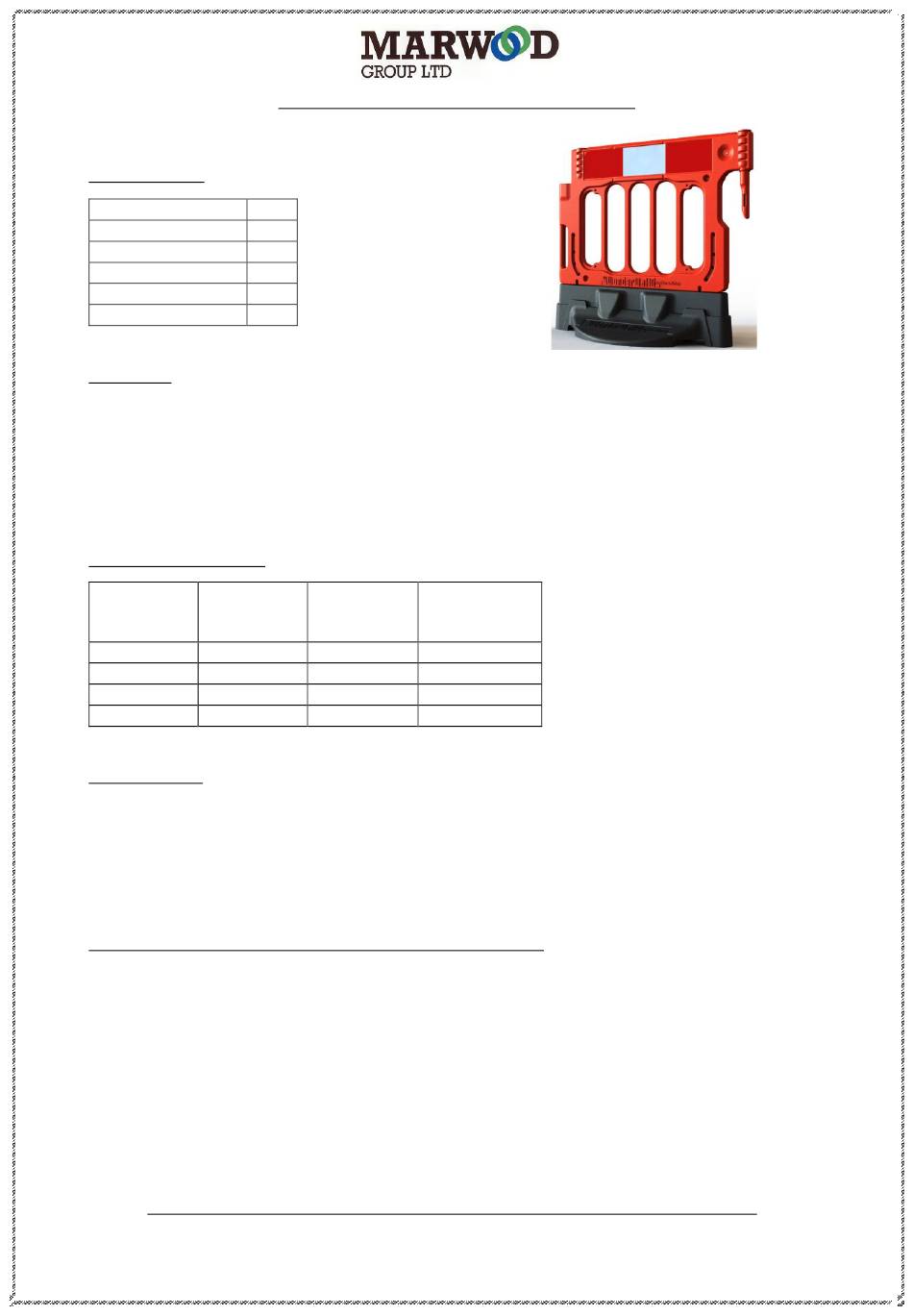

MARWOOD WonderWall Manual

Specifications

Height (mm) 1000
Width (mm) 1140
Barrier depth (mm)
Base depth (mm) 500
Weight base (kg) 18.6
Weight top (kg)

Standards

✓ Conforms to requirements of BS EN 8442
✓ Reflectivity requirements of BS EN 12899-1
✓ Chapter 8 - The Traffic Signs Manual
✓ Safety at Street Works & Road Works
✓ Traffic Signs Regulations & General Directions

Wind Resistance Test

Class Test Results
C PASSED
B PASSED
A PASSED
BOXED PASSED

Safety Advice

•
Correct manual handling techniques should be applied at all times.
•
Following a site-specific risk assessment, the correct PPE should be worn at all times.
•
Extreme care should be taken at all times whilst working near traffic.
Note: Customers must not add signs or banners to the fencing as this will increase the wind
resistance of the fencing.

Deploying the system (Designed for a 2-man operation)

1. Units should be installed on a flat even surface from right to left.
2. Place the base down at the far-right position of the area of installation, then place the fence
panel into the top of the base pushing down. (refer to photos below)
3. For each adjoining barrier, insert the fence panel at an angle so that the peg slots into the
corresponding hole and the fence locates into its base.
4. Continue installation of each set going from right to left up until the end of the site works. It
does not matter which way the round base is placed
5. To fit the fence panel on top, align each top panel leg with the open holes, and push the panel
down into the barrier.
6. To fit the DoubleTop on the barrier, starting from the left, align each top section leg with the
open holes, and push the panel down into the barrier. (As per pictures below)
7. Using a coupler & spanner set, secure each top panel to the adjoining panel.
8. Moving the barriers at this point may cause irreparable damage and is chargeable.
Author: Technical Specifier
Instructions when using the WonderWall™
50
3.8
Wind speed
withstood recommended
(mph)
33.2
47.8
65.6
63.2
marwoodsafety.co.uk
Ballast
(kg)
0
15
65
40
MG772/0920
