Summary of Contents for uhlmann & zacher CX2936

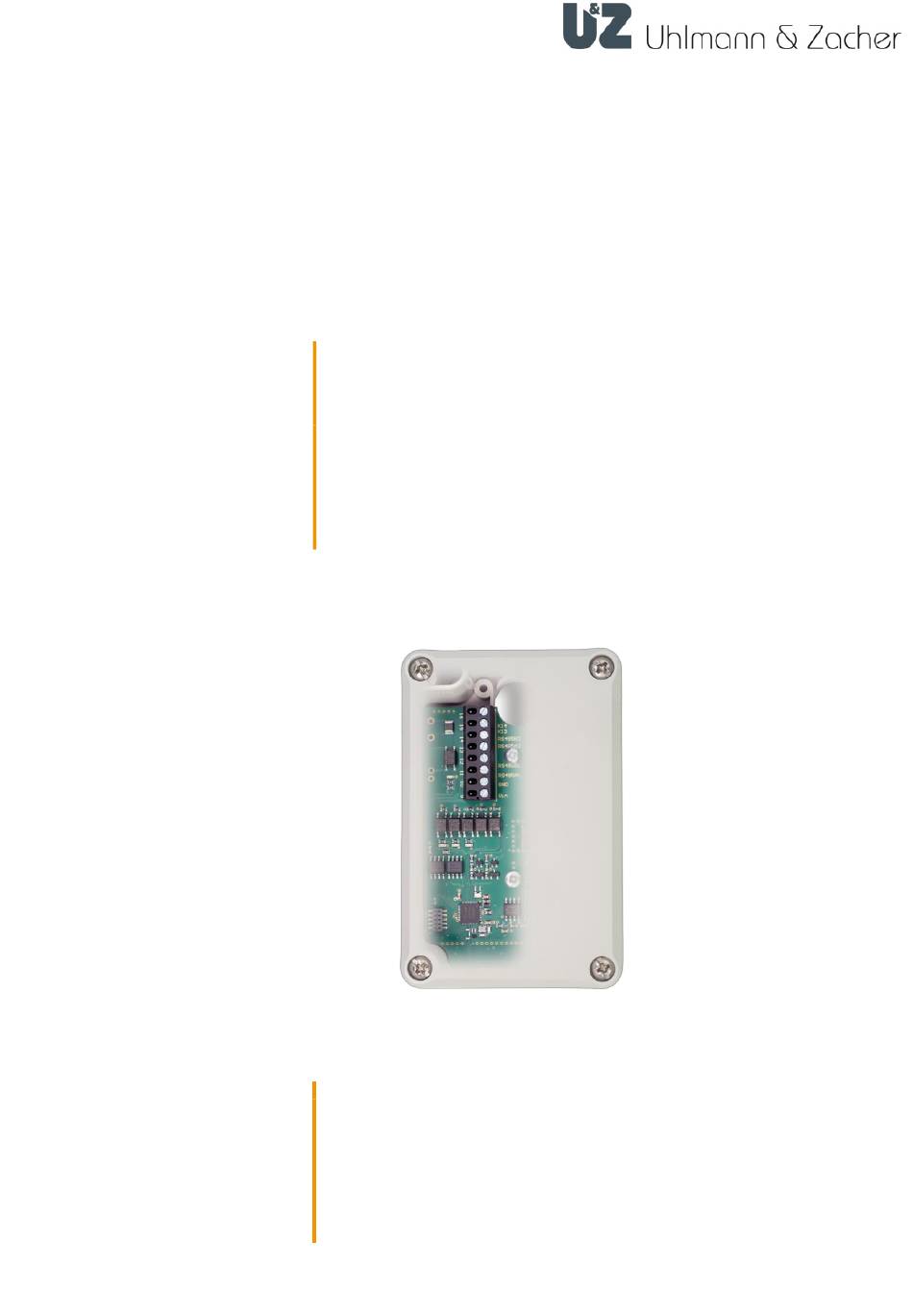

- Page 1 CX2936 Clex private wireless switch module with Bluetooth® Low Energy Operating and installation instructions...
- Page 2 CX2936 ABLE OF CONTENTS Legal Notice Operating and installation instructions (original language) Clex private wireless switch module with Bluetooth® Low Energy CX2936 Document number: 151A Version: 1.0 Date: 13.02.2023 Manufacturer Uhlmann & Zacher GmbH Gutenbergstraße 2–4 97297 Waldbüttelbrunn Germany Tel.: +49 931 40672-0 Email: contact@UundZ.de...
-
Page 3: Table Of Contents
CX2936 ABLE OF CONTENTS Table of contents About this document ................ 3 Warnings .................... 3 Symbols ....................3 Safety .................... 4 Proper use ..................4 Improper use ..................4 General safety information ..............4 Product description ................5 Functional description ................5 Versions .................... -
Page 4: About This Document
These operating and installation instructions apply for all versions of the CX2936 and are intended both for specialist personnel responsible for assembly and dis- assembly and for end customers. -
Page 5: Safety
CX2936 AFETY Safety Proper use The product is intended for use solely with Bluetooth ® -capable devices. It is de- termined for use in the system Clex private. The device is designed for the surface mounting in secured indoor areas. Only components approved by Uhlmann &... -
Page 6: Product Description
CX2936 RODUCT DESCRIPTION Product description Functional description The wireless switch module is an extension of the Clex private locking system with a wireless switch unit to control the Clex private locking cylinder or other Clex private locking units. The wireless switch module can be controlled via the wall reader of the Clex private system or via external readers (RFID reader, finger print, PIN keyboard, etc.). -
Page 7: Versions
CX2936 RODUCT DESCRIPTION Versions Housing versions: Housing in grey Oval housing in white Rectangular housing in white Technical data 3.3.1 General technical data Designation Value Number of cou- pleable locking units Frequency range 2402 to 2480 MHz... -
Page 8: Dimensions
CX2936 RODUCT DESCRIPTION Dimensions Grey housing... - Page 9 CX2936 RODUCT DESCRIPTION White oval housing...
- Page 10 CX2936 RODUCT DESCRIPTION White rectangular housing...
-
Page 11: Installation
CX2936 NSTALLATION Installation General installation information The valid national regulations for electronic installations (e.g. VDE regulations) must be observed. The connecting cables must be available and laid. Only operate the device at the correct operating voltage. ... -
Page 12: Pin Assignment
CX2936 NSTALLATION Pin assignment Contact number Pin assignment + power supply 5-24 VDC – power supply (ground) Input ground (isolated from the supply ground together with Pin 6/7/8) Wiegand 0 (not used) Wiegand 1 (not used) Input (not used) Input (not used) -
Page 13: Commissioning And Operation
CX2936 OMMISSIONING AND OPERATION Commissioning and operation Connecting the locking unit Perform the following steps to connect a locking unit with the wireless switch module: Bring the locking unit which you want to connect into the service mode by holding the service key in front of the locking unit. -
Page 14: Operation
CX2936 OMMISSIONING AND OPERATION Operation Trigger the opening of the connected locking unit via the third-party system con- nected to connections 3 and 8. Connection 3 serves as ground. Switching input: High: 5-24 VDC Low: 0 VDC The high level must be present for at least 25 ms to trigger the switching opera- tion. - Page 15 CX2936 OMMISSIONING AND OPERATION Meaning Red and yellow flash Mode wrong for the available firmware: after a reset; after that Perform a firmware update or set the mode manually. service mode Yellow lights constant- Micro-controller of the device is in the boot loader.
-
Page 16: Maintenance And Cleaning
CX2936 AINTENANCE AND CLEANING Maintenance and cleaning Maintenance Since the device is not protected specially against dust, the product should be checked regularly for dust deposits. The frequency depends on the dust level at the operation site. Cleaning Clean the housing with a soft, lint-free and only slightly moistened cloth. When cleaning do not use corrosive liquids or liquids that decompose plastic such as benzine, turpentine, etc. -
Page 17: Disposal
CX2936 ISPOSAL Disposal Do not dispose of the device with household waste, but at a municipal col- lection point for special electrical waste in accordance with European Di- rective 2002/96/EC. Dispose of packaging as environmentally friendly recycling. ... -
Page 18: Glossary
CX2936 LOSSARY Glossary Term Meaning Bluetooth ® Low Energy German "Verband der Elektrotechnik" [Registered Asso- ciation of the Electrical, Electronic and Information Technology]...
