Summary of Contents for uhlmann & zacher CX6192

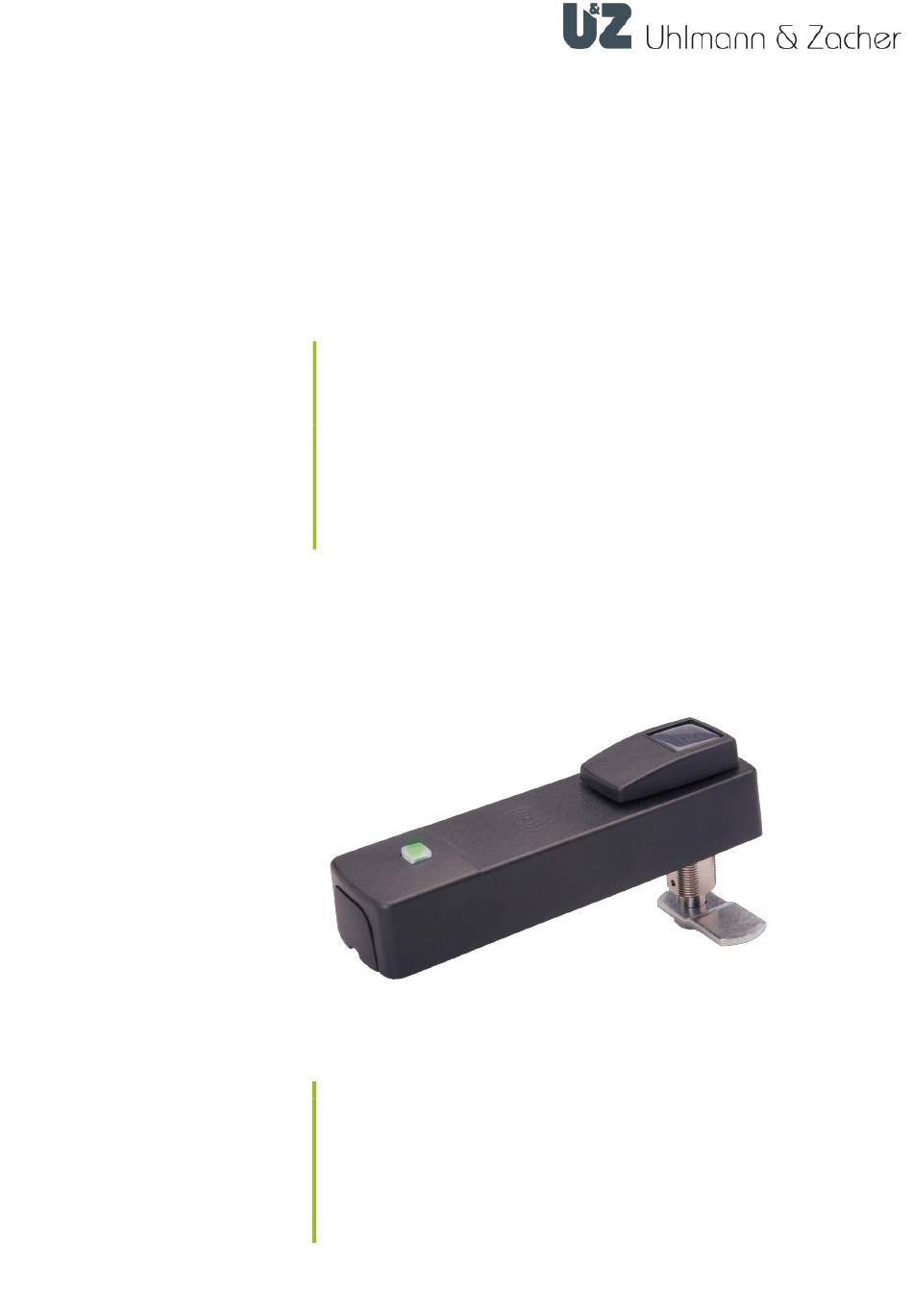

- Page 1 CX6192 Clex prime Electronic cabinet lock Operating and assembly manual...
- Page 2 CX6192 ABLE OF ONTENTS Imprint Operating and assembly manual (english) Electronic cabinet lock CX6192 Document number: 0B64 Version: 2.01 Stand: 06.10.2017 Manufacturer Uhlmann & Zacher GmbH Gutenbergstraße 2–4 97297 Waldbüttelbrunn Germany Tel.: +49 931 40672-0 E-Mail: contact@UundZ.de http://www.UundZ.de This operating and assembly manual is copyright protected. The information contained this manual should not be reproduced, distributed or used for competitive purposes or shared with third parties.
-
Page 3: Table Of Contents
CX6192 ABLE OF ONTENTS Table of Contents About this Document................ 3 Warnings .................... 3 Symbols ....................3 Security ..................4 Intended use ..................4 Improper use ..................4 General safety instructions ..............4 Product description ................5 Functional description ................5 Design .................... -
Page 4: About This Document
(in short: CX6192). It is part of the product and contains important information that is necessary for proper operation and maintenance. This operating and assembly manual is valid for all versions of CX6192 and is intended for technicians responsible for assembling and disassembling, as well as for end customers. -
Page 5: Security
The different versions of the locking lever enable it to be used in many commonly available cabinet doors The CX6192 can be used only indoors. Improper use The CX6192 should not be used for locking up supplies required in case of emergencies (for example defibrillator, emergency medication, fire extinguishers, etc.). General safety instructions... -
Page 6: Product Description
RODUCT DESCRIPTION Product description Functional description The electronic cabinet lock CX6192 is a Clex private system product. The reading unit, the communication electronics, the mechanical system and power supply, are integrated within the cabinet lock. Different transponder carriers can be used as key in the CX6192, for example, ISO card or key fob. - Page 7 3.1.4 Wireless network If a corresponding wireless network is installed in the building, then the cabinet lock CX6192 can be integrated with this network. The following functions can be then be executed via radio: Programming access rights ...
- Page 8 3.1.6 Battery management system The electronic cabinet lock CX6192 comes with a battery management system, which indicates the need for battery replacement by means of a visible and audio signal, when the battery power reduces (capacity loss) during the final 1,000 operations of the battery (see chapter 7.2.17.2.1 Battery Replacement).
- Page 9 CX6192 RODUCT DESCRIPTION 3.1.7 Event Log The last 512 events of the cabinet lock are stored in the event log. The following events are logged: Unauthorised Authorised Service opening Timer circuit open Timer circuit closed ...
-
Page 10: Design
CX6192 RODUCT DESCRIPTION Design Mounting nut (Cabinet lock) Mounting screw Locking lever (has to be Button for manual activation ordered separately) Lock washer Battery Mounting nut (locking lever) Battery compartment Operating lever Options Different versions are available: 3 versions of the locking lever ... -
Page 11: Technical Data
CX6192 RODUCT DESCRIPTION Technical data 3.4.1 General technical data Description Value Dimensions (when 148.5 mm x 44.7 mm x 35 mm (H x W x D) installed) Door thickness up to 20 mm Transponder versions Version 1: 125 kHz EM4102, EM4450, HITAG 1, Active transponder... -
Page 12: Management Accessories
CX6192 RODUCT DESCRIPTION 3.4.3 Dimensions 44.6 29.3 35.9 max.20 37.5 26.5 Management accessories The components of the Clex prime system described below are used to manage a Clex prime locking system. 3.5.1 CX6530 Keyvi management software The locking system can be managed centrally and conveniently from the PC using the Keyvi management software for Clex prime. - Page 13 CX6192 RODUCT DESCRIPTION 3.5.4 CX6520 Programming station The programming station is an optional addition to the Keyvi management software and the CX6510 service device in order to conveniently program the key. In conjunction with MIFARE or LEGIC transponders, the programming ®...
-
Page 14: Assembly
Carry out the assembly necessarily with the door open. Ensure that the latches or seals fitted to the door do not hinder the proper operation of the CX6192. Ensure that the cabinet lock does not protrude and prevent the door from swinging freely. -
Page 15: Assembly
CX6192 SSEMBLY 4.1.3 Determining the opening direction The direction of rotation of the operating lever is determined by the position of the small screw on the mounting thread. Opening by turning the operating lever to the left: Opening by turning the operating lever to the right: ... - Page 16 CX6192 SSEMBLY Mount the cabinet lock using the mounting nut and mounting screw. Secure the locking lever and lock washer with the mounting nut (locking lever). Check if the cabinet lock is functioning. ...
-
Page 17: Commissioning
Advanced cabinet lock settings To cover the specific requirements for a cabinet lock, the cabinet lock CX6192 comes with advanced setting options. On the one hand, these are extensions of the usable key (even unauthorised or keys that are not part of the locking system) and, on the other hand, those which can open cabinet locks covered by other keys. - Page 18 CX6192 OMMISSIONING 5.2.1 Predefined cabinet lock modes The cabinet lock modes can be configured in ClexTouch under the menu item "Door options / Cabinet lock" or using the service device. In the delivered condition, the cabinet lock is in mode 0.
-
Page 19: Configuring The Cabinet Lock
CX6192 OMMISSIONING Mode: Only system key Only authorised keys No single cabinet restriction No Clex prime priority Mail box function Priority group 0...295 Configuring the cabinet lock Prerequisites: Orders have been created in the Keyvi management software and sent to the service device or to ClexTouch. -
Page 20: Operation
CX6192 PERATION Operation Waking up Automatic wake-up is disabled for the cabinet lock in the delivered condition. To check the authorisation of a key, it needs to be woken up from the sleep mode. To wake-up the reading unit, press the button on the front of the cabinet lock ... -
Page 21: Indications
CX6192 PERATION Indications Function Signal (audible and visible) and explanation Rest mode No audible or visible signal ● ● Begin Service mode Two audible signals of increasing intensity but equal length ● ● End Service mode Two audible signals of decreasing intensity but equal length... -
Page 22: Cleaning And Maintenance
CX6192 LEANING AND MAINTENANCE Cleaning and maintenance Cleaning Clean the cabinet lock only with dry cloth. Maintenance 7.2.1 Replacing the battery CAUTION Danger of injury caused by improper use Do not charge, open or heat the battery. ... -
Page 23: Faults During Operation
CX6192 AULTS DURING OPERATION Faults during operation Fault indications Function Audible signal Explanation Memory fault / 5 long beeps, ▬ ▬ ▬ ▬ ▬ ● configuration fault 1 short beep Coupling error 5 long beeps, ▬ ▬ ▬ ▬ ▬ ● ●... -
Page 24: Disassembly And Disposal
CX6192 ISASSEMBLY AND ISPOSAL Disassembly and Disposal Disassembly The disassembly is carried out in reverse order of the assembly described in chapter 4.2 (page 14). Disposal Do not dispose of the cabinet lock with domestic waste. Disposal should be ... -
Page 25: Glossary
CX6192 LOSSARY Glossary Definition Description ClexTouch Software for Windows handheld computer for configuring a locking system HITAG 1 Technology for contactless transfer of identification data Keyvi Software for managing a locking system LEGIC Technology for contactless transfer of identification data ®...
