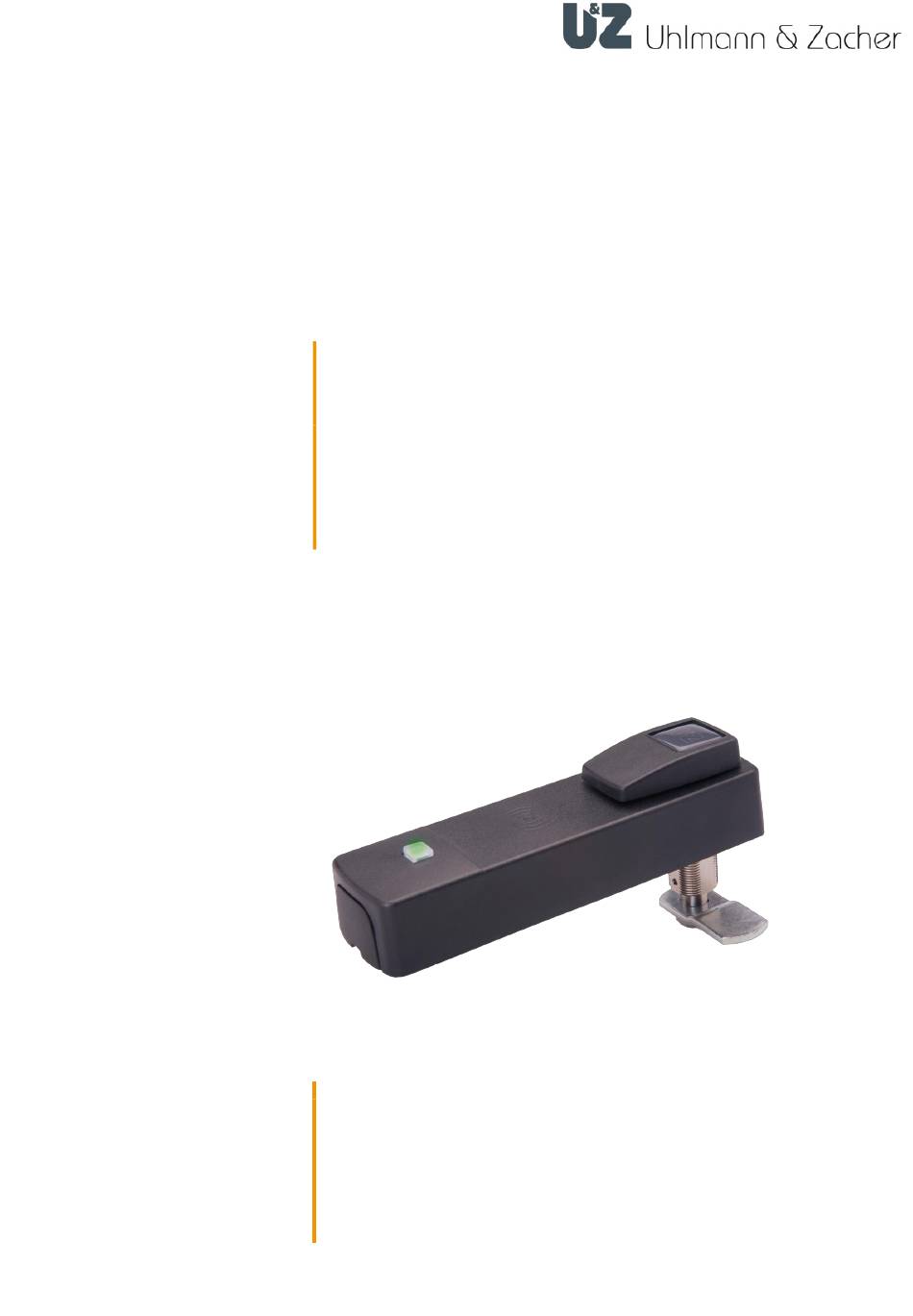

- Page 1 CX2192 Clex private Electronic cabinet lock Operating and assembly manual...
- Page 2 CX2192 ABLE OF ONTENTS Imprint Operating and assembly manual (english) Electronic cabinet lock CX2192 Document number: 0B63 Version: 1.00 Status: 12.10.2017 Manufacturer Uhlmann & Zacher GmbH Gutenbergstraße 2–4 97297 Waldbüttelbrunn Germany Tel.: +49 931 40672-0 E-Mail: contact@UundZ.de http://www.UundZ.de This operating and assembly manual is copyright protected. The information contained this manual should not be reproduced, distributed or used for competitive purposes or shared with third parties.
-
Page 3: Table Of Contents
CX2192 ABLE OF ONTENTS Table of Contents About this Document................ 3 Warnings .................... 3 Symbols ....................3 Security ..................4 Intended use ..................4 Improper use ..................4 General safety instructions ..............4 Product description ................5 Functional description ................5 Design .................... -
Page 4: About This Document
(in short: CX2192). It is part of the product and contains important information that is necessary for proper operation and maintenance. This operating and assembly manual is valid for all versions of CX2192 and is intended for technicians responsible for assembling and disassembling, as well as for end customers. -
Page 5: Security
The different versions of the locking lever enable it to be used in many commonly available cabinet doors The CX2192 can be used only indoors. Improper use The CX2192 should not be used for locking up supplies required in case of emergencies (for example defibrillator, emergency medication, fire extinguishers, etc.). General safety instructions... -
Page 6: Product Description
RODUCT DESCRIPTION Product description Functional description The electronic cabinet lock CX2192 is a Clex private system product. The reading unit, the communication electronics, the mechanical system and power supply, are integrated within the cabinet lock. Different transponder carriers can be used as key in the CX2192, for example, ISO card or key fob. -
Page 7: Design
CX2192 RODUCT DESCRIPTION If the power supply remains off, then the clock comes to a standstill after a few seconds and starts running from the last stored value onwards after the power supply is restored. Check the time after replacing the battery, and set the current time if necessary. -
Page 8: Options
CX2192 RODUCT DESCRIPTION Options Different versions are available: 3 versions of the locking lever Technical data 3.4.1 General technical data Description Value Dimensions (when 148.5 mm x 44.7 mm x 35 mm (H x W x D) installed) Door thickness... -
Page 9: Management Accessories
CX2192 RODUCT DESCRIPTION 3.4.3 Dimensions 44.6 29.3 35.9 max.20 37.5 26.5 Management accessories 3.5.1 CX2530 Keyng The CX2530 Keyng management software helps easy management of the electronic locking system Clex private via the PC. The software, in comparison to the learning / clearing system, offers an extended function range. -
Page 10: Assembly
Carry out the assembly necessarily with the door open. Ensure that the latches or seals fitted to the door do not hinder the proper operation of the CX2192. Ensure that the cabinet lock does not protrude and prevent the door from swinging freely. -
Page 11: Assembly
CX2192 SSEMBLY 4.1.3 Determining the opening direction The direction of rotation of the operating lever is determined by the position of the small screw on the mounting thread. Opening by turning the operating lever to the left: Opening by turning the operating lever to the right: ... - Page 12 CX2192 SSEMBLY Mount the cabinet lock using the mounting nut and mounting screw. Secure the locking lever and lock washer with the mounting nut (locking lever). Check if the cabinet lock is functioning. ...
-
Page 13: Commissioning
CX2192 OMMISSIONING Commissioning Basically, there are two ways to manage a Clex private locking system and thereby programming the CX2192 cabinet lock: Management as programming / clearing system Management using the CX2530 Keyng software and wireless stick /... -
Page 14: Management With Keyng Cx2530
CX2192 OMMISSIONING Within 60 seconds, return the cabinet lock to the programming mode and hold up the service key in front of the reading unit. In the meantime, the cabinet lock indicates success using short audible signals. Once the programming mode is exited after 15 seconds, all the keys would have been deleted. -
Page 15: Operation
CX2192 PERATION Operation Waking up Automatic wake-up is disabled for the cabinet lock in the delivered condition. To check the authorisation of a key, it needs to be woken up from the sleep mode. To wake-up the reading unit, press the button on the front of the cabinet lock ... -
Page 16: Signals
CX2192 PERATION Signals Function Signal (audible and visible) and explanation Rest mode No audible or visible signal Programming ● ▬ mode start Long beep followed by a short beep Programming ● ▬ mode end Short beep followed by a long beep... -
Page 17: Cleaning And Maintenance
CX2192 LEANING AND MAINTENANCE Cleaning and maintenance Clean the cabinet lock only with dry cloth. Maintenance 7.1.1 Replacing the battery CAUTION Danger of injury caused by improper use Do not charge, open or heat the battery. Always replace discharged batteries with new batteries. -
Page 18: Faults During Operation
CX2192 AULTS DURING OPERATION Faults during operation Fault indications Function Audible signal Explanation Memory fault / 5 long beeps, ▬ ▬ ▬ ▬ ▬ ● configuration fault 1 short beep Coupling error 5 long beeps, ▬ ▬ ▬ ▬ ▬ ● ●... -
Page 19: Disassembly And Disposal
CX2192 ISASSEMBLY AND ISPOSAL Disassembly and Disposal Disassembly The disassembly is carried out in reverse order of the assembly described in chapter 4.2 (page 10). Disposal Do not dispose of the cabinet lock with domestic waste. Disposal should be ... -
Page 20: Glossary
CX2192 LOSSARY Glossary Definition Description Keyng Software for managing a locking system MIFARE Technology for contactless transfer of identification data ® Data carrier that contains the authorization information. This can, for example, be an ISO card or a chip. The key is sometimes also known as transponder.
