Protect+ User Guide

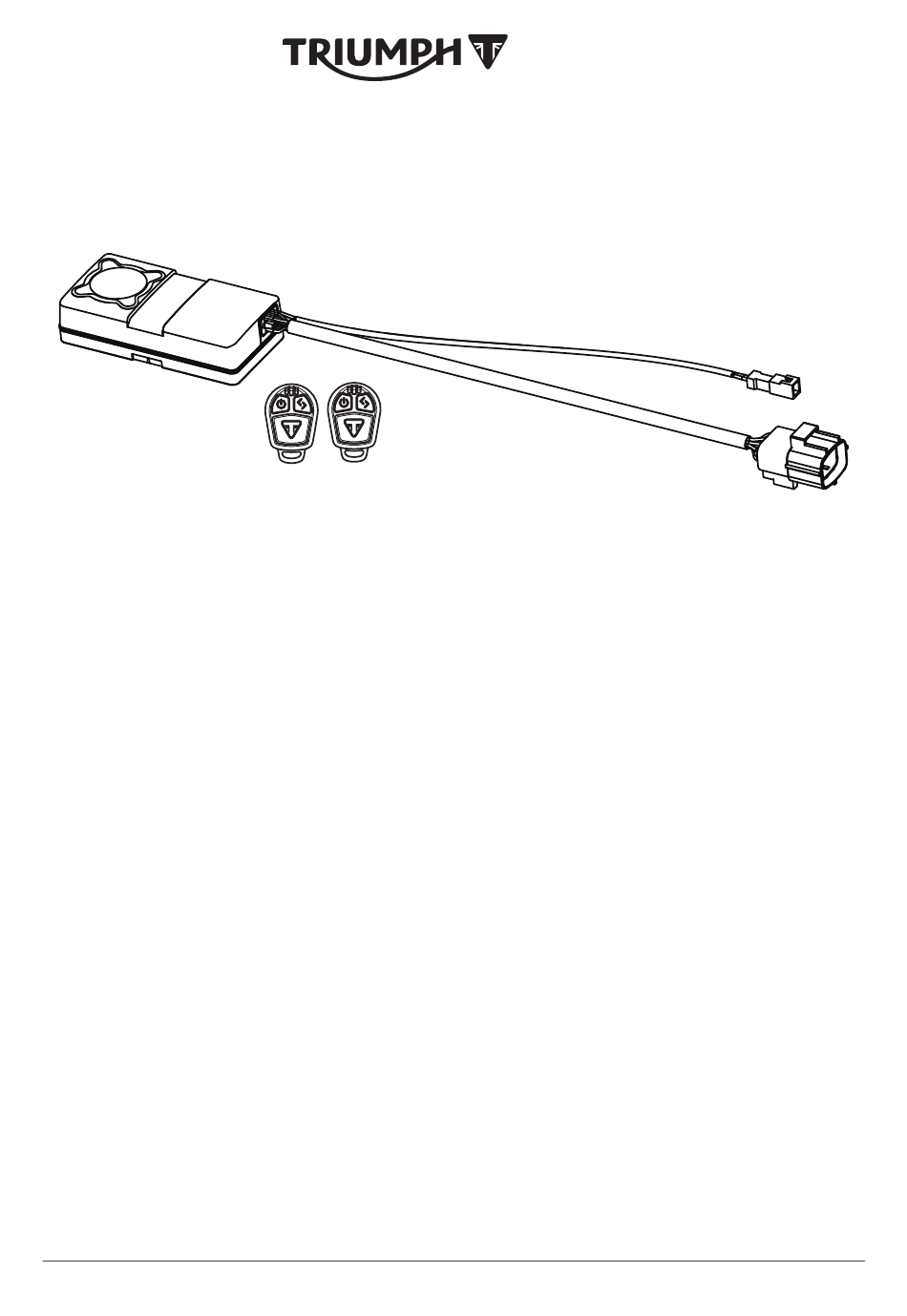

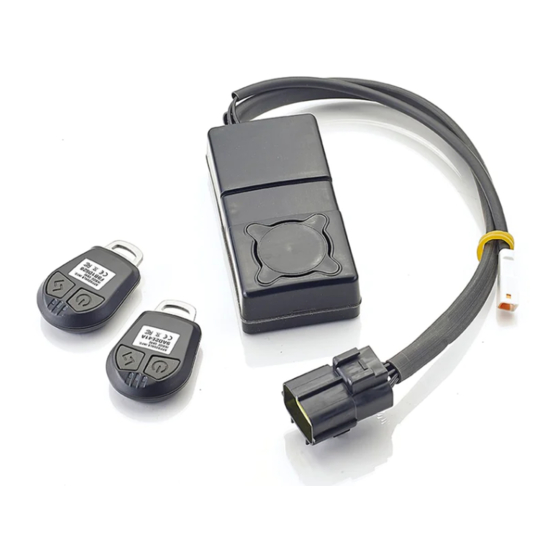

The Triumph Protect+ is an alarm system designed specifically to complement the original equipment
immobiliser system on your Triumph motorcycle. The Triumph Protect+ is purely an alarm, the immobilisation
functionality is handled by the motorcycle ignition system.
When armed the Triumph Protect+ monitors your motorcycle for signs of unauthorised movement by use of
a movement sensor, unauthorised ignition operation and unauthorised access to the alarm control unit as
well as battery removal. If any of these conditions are detected the alarm siren will sound and the motorcycle
indicators will flash except if the motorcycle battery has been disconnected, where the siren will still sound
thanks to an internal rechargeable battery in the Triumph Protect+, but the motorcycle indicators will not
flash. The siren will operate for 29 seconds, then re-arm. This will be repeated 10 times if an alarm trigger
remains. After the activation cycle has been repeated 10 times the siren will no longer sound until the next
alarm arm/disarm.
This security system is designed as a deterrent and is not in itself a guarantee against theft. We advise you
that the more difficult you make your machine to be stolen, the lower the potential theft risk.
Applying common sense and securing your machine with additional security every time you park plays a
large part in this. Visit www.triumphmotorcycles.com for Triumph security products.
Please retain this user guide for future reference.
The information contained in this publication is accurate at the time of final approval, however, Triumph
Motorcycles reserves the right to amend the information at any time without notice.
Insurance Approval
The Triumph Protect+ is approved in the UK as a Thatcham Category 2:1 upgrade alarm, designed to be
installed on Triumph motorcycles equipped as standard with the Triumph immobiliser system.
When installed to the correct specification motorcycle, the Triumph Protect+ upgrades the motorcycle
approval to full Thatcham Category 1 status.
Publication part number 9901719 issue 3
1 of 9
English
© Triumph Designs Ltd. 2021
Advertisement
Table of Contents
Related Manuals for Triumph Protect+
Summary of Contents for Triumph Protect+
- Page 1 Motorcycles reserves the right to amend the information at any time without notice. Insurance Approval The Triumph Protect+ is approved in the UK as a Thatcham Category 2:1 upgrade alarm, designed to be installed on Triumph motorcycles equipped as standard with the Triumph immobiliser system.
-
Page 2: Declaration Of Conformity
Declaration of Conformity We, Scorpion Automotive Ltd, Dunhead Road, Chorley North Business Park, Chorley, Lancashire, PR6 7DE. Tel: +44 (0) 127 249928 Fax: +44 (0) 1257 249938 Declare that the Products: Product name: PROTECT PLUS Part number: 9800100, DT200 Listed above are in conformity with the following UK and UN regulations: Radio Equipment Regulations 2017 Electrical Equipment (Safety) Regulations 2016 UNECE Regulation 10 concerning the approval of vehicles with regard to EMC (Revision 5) - Page 3 The Triumph Protect+ is designed specifically for Triumph Motorcycles with the compatible alarm connection plug. The Triumph Protect+ is approved for use on those motorcycles only. Modification of the alarm wiring or control unit in any way will invalidate the granted approvals and warranty and may result in technical failure.
-
Page 4: The Remote Control
Notice Operation The Triumph Protect+ is provided with 2 remote Make sure the used battery is disposed of, or controls as standard. recycled in accordance with local environmental regulations. Incorrect disposal or recycling of a It is possible to add up to 4 extra remote controls (6 battery may result in prosecution. - Page 5 2. Arm/Disarm button The buttons must be pressed within 3 seconds of Arming the Triumph Protect+ each other, the Triumph Protect+ will arm as normal except the arming notification tones will not be To manually arm the Triumph Protect+, with the sounded.
- Page 6 Protect+ is in Long Term Storage Mode. Triumph Protect+ will chirp a third time (if tones are enabled) and the indicators will also flash a third Always check the details of your insurance cover time to indicate the movement sensor has been before using the Long Term Storage Mode.
- Page 7 Panic Alarm feature. Battery Monitoring The Triumph Protect+ monitors the motorcycle battery voltage and, when the Triumph Protect+ is armed, flashes the motorcycle instrument LED at a variable rate to notify the measured battery voltage. The LED flash rate is as follows:...
-
Page 8: Troubleshooting
Troubleshooting Programming Guide If the Triumph Protect+ does not react to the To customise the Triumph Protect+ features to the remote control when arming or disarming check the user preferred options follow the programming following: guides below. • LED Indicator is illuminating on the remote when the Arm/Disarm button is pressed. - Page 9 To Adjust the Passive Arming Time To Reset the Triumph Protect+ to the Default Settings Disarm the Triumph Protect+. Disarm the Triumph Protect+. Turn on the ignition. Turn on the ignition. Within 10 seconds, press and hold both buttons on the remote control.
