Fitting Instructions:
Daytona 675
Alarm/Immobiliser - A9808064
Thank you for choosing this Triumph genuine accessory kit. This accessory kit is the product of Triumph's use
of proven engineering, exhaustive testing, and continuous striving for superior reliability, safety and
performance.
Completely read all of these instructions before commencing the installation of the accessory kit in order to
become thoroughly familiar with the kit's features and the installation process.
These instructions should be considered a permanent part of your accessory kit, and should remain with it
even if your accessory equipped motorcycle is subsequently sold.
This accessory kit is designed for use on Triumph Daytona 675 motorcycles only and should not be fitted to any other
Triumph model or to any other manufacturer's motorcycle. Fitting this accessory kit to any other Triumph model, or to
any other manufacturer's motorcycle will affect the performance, stability and handling of the motorcycle. This may
affect the riders ability to control the motorcycle and could cause an accident.
Always have Triumph approved parts, accessories and conversions fitted by a trained technician of an authorised
Triumph dealer. The fitment of parts, accessories and conversions by a technician who is not of an authorised Triumph
dealer may affect the handling, stability or other aspects of the motorcycles operation which may result in loss of
motorcycle control and an accident.

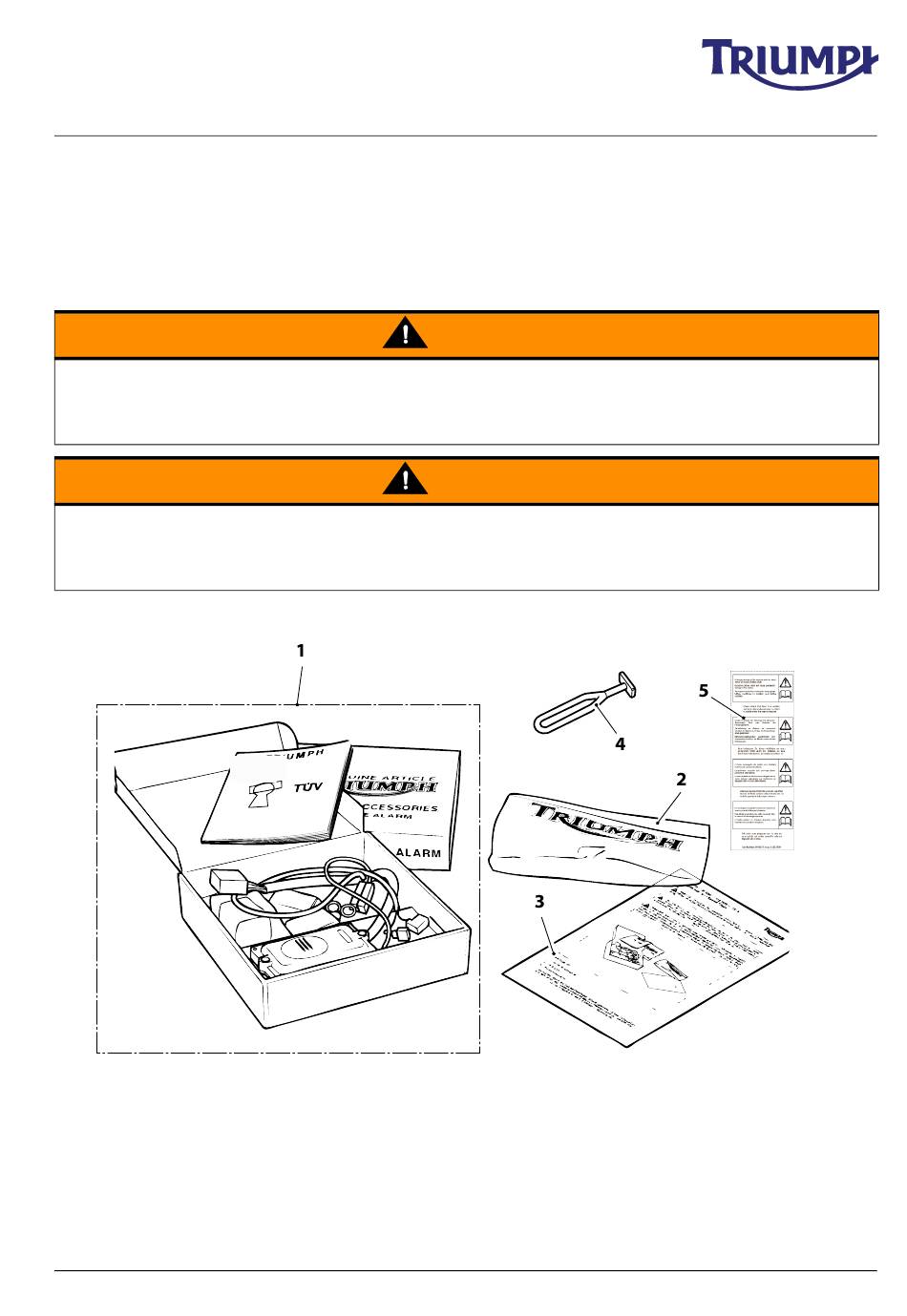

Parts Supplied:
1.
Alarm/Immobiliser kit . . . . . . . . . . . . . . . . . . . 1 off
2.
Fitting kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 off
3.
Fitting instructions . . . . . . . . . . . . . . . . . . . . . . 1 off
Publication part number A9900242 issue 4, ADC 9126
© Triumph Designs Ltd 2009
Warning
Warning
4.
Bungee strap . . . . . . . . . . . . . . . . . . . . . . . . . 1 off
5.
Battery drainage label. . . . . . . . . . . . . . . . . . . 1 off
1 of 6
Advertisement
Related Manuals for Triumph A9808064
Summary of Contents for Triumph A9808064
- Page 1 Warning This accessory kit is designed for use on Triumph Daytona 675 motorcycles only and should not be fitted to any other Triumph model or to any other manufacturer’s motorcycle. Fitting this accessory kit to any other Triumph model, or to any other manufacturer’s motorcycle will affect the performance, stability and handling of the motorcycle.
- Page 2 Warning Throughout this operation, ensure that the motorcycle is stabilised and adequately supported on a paddock stand to prevent risk of injury from the motorcycle falling. Warning Always ensure that newly installed wiring does not chafe against other parts of the motorcycle such that they may be rubbed through and cause an electrical problem.
- Page 3 Position the reed-switch between the two moulded Alarm Unit Fitment lines on the right-hand side of the battery box area. The top of the reed-switch should be level with the Recover the rubber bungee strap from the fitting kit top of the frame. and insert into the hole in the accessory alarm compartment.
- Page 4 Recover the two self adhesive foam pads from the Refit the battery and secure with the battery strap. fitting kit, peel off the backing strip from the pads Connect the reed-switch wiring to the alarm/ and affix to the bottom of the alarm/immobiliser unit immobiliser wiring.
- Page 5 Reconnect the battery, positive (red) lead first. 10. Replace the motorcycle seat and check all the Caution functions of the alarm as detailed in the user guide. When fitting the heat shrink tubing, take care not to Note: burn any part of the wiring harness or serious damage •...
- Page 6 If, after fitment of this accessory kit, you have any doubt about the performance of any aspect of the motorcycle, contact an authorised Triumph dealer and do not ride the motorcycle until the authorised dealer has declared it fit for use.
- Page 7 Always have Triumph approved parts, accessories and conversions fitted by a trained technician of an authorised Triumph dealer. The fitment of parts, accessories and conversions by a technician who is not of an authorised Triumph dealer may affect the handling, stability or other aspects of the motorcycles operation which may result in loss of motorcycle control and an accident.
- Page 8 Caution When shrinking the pink coloured sleeves, take care not to burn any part of the wiring harness or serious damage will result to the cable. Excessive heat will also cause the tubing to become brittle rendering it useless. 11. Use a heat gun to shrink the pink coloured sleeves around both joints. When the sleeves are fully shrunk, allow to cool before taping over each sleeve with black electrical insulation tape.
