Rebelle Sightlines 2400 Series Quick Start Manual

11"
Spacing to
center line
IMPORTANT
Disconnect power before installing fixtures. Read instructions before
starting work. This product must be installed in accordance with the
applicable installation code by a person familiar with the construction
and operation of the product and the hazards involved.
Sightlines 2400 Series

HOUSING INSTALLATION - CONCRETE POUR

1

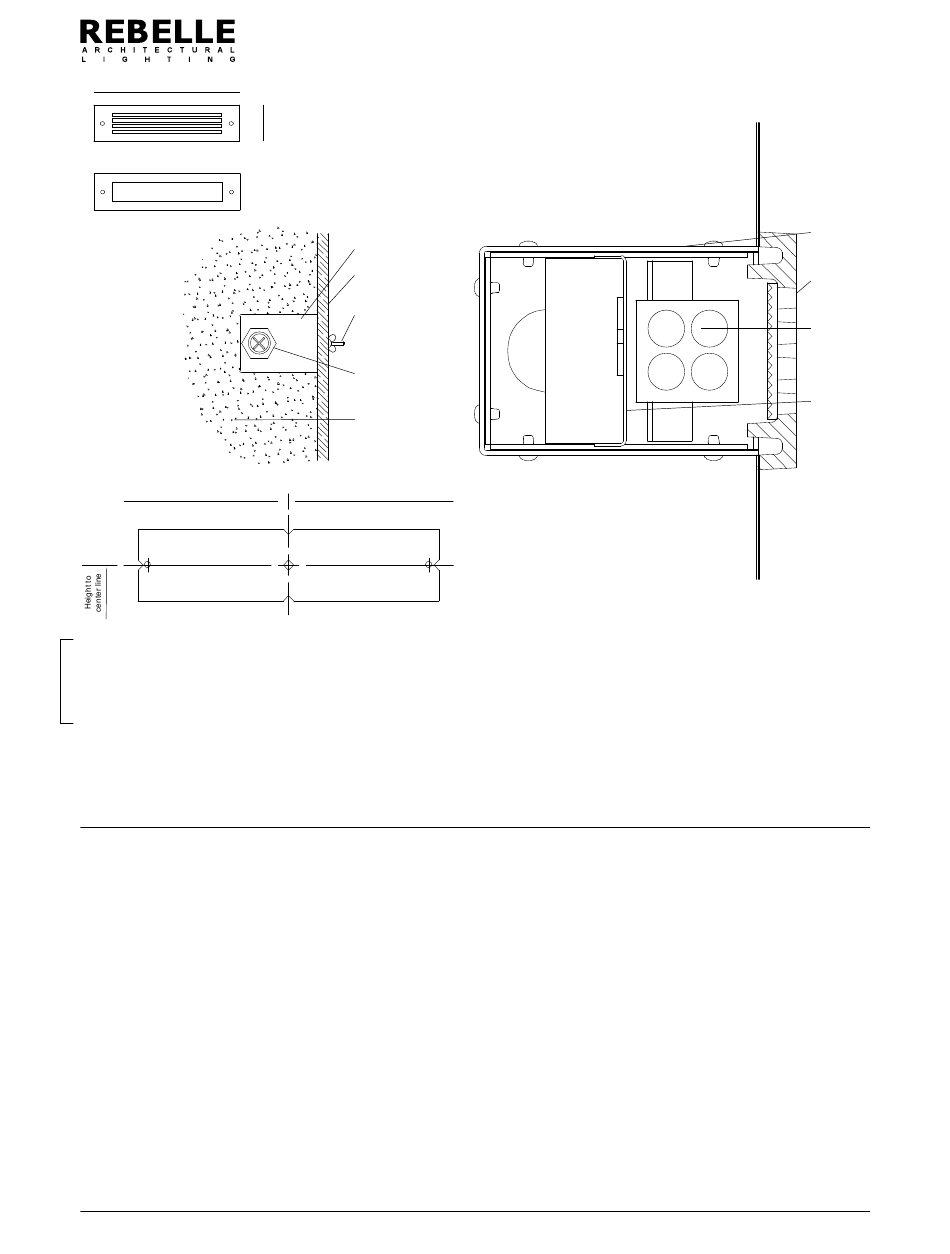

Remove housing from shipping carton. Lay out center
line of luminaire positions on concrete form. (Fig.1)
2
Position template (provided) over marked center line
luminaire spacings (make sure template is level) drill
1/4" holes through form. (Fig.1)
3
Install housing on concrete side of form using 3" long
studs and wing nuts (provided) (fig.2) Check that unit
is level.
4
If tile or other surface treatment is used the housing
position must be adjusted to suit prior to pouring con-
crete.
5
Install 1/2" NPT conduit as required and pull supply
circuit wires per applicable electrical codes.
6
Conduits must be sealed or plugged at all entry points
as per applicable electrical code.
7 Remove wing nuts and studs after concrete is cured
before the forms are stripped.
www.rebellelighting.com
© 2010 REBELLE All rights reserved.
3"
Housing
Concrete form
(by others)
Studs and wing nuts
1/2" NPT
conduit entry
Concrete
(by others)
Spacing to
center line
Figure 1
REBELLE ARCHITECTURAL LIGHTING 11475 - 201A Street, Maple Ridge, B.C. Canada V2X 0Y3
P 604.465.5739 F 604.465.9801 E info@rebellelighting.com W rebellelighting.com

ELECTRICAL TRAY AND FACEPLATE INSTALLATION

1
Remove electrical tray from shipping carton.
2
Pull out supply wires and connect appropriate supply leads to
electrical tray input.
3
Push all spices securely into box.
4
Install electrical tray with screws provided and insert lamp as
required.
5
Remove faceplate assembly from shipping carton.
6
Before continuing mounting surface must be smooth and flat to
allow gasket to make good contact for a water tight seal.
7
Coat screws with white grease and install faceplate to housing
anchor nuts.
8
Energize and test as required.
Housing
Faceplate
Lamp
(by others)
Electrical tray
REV. 06/28/10
