Rebelle Saturna 5009 Series Quick Start Manual

13"
5009H
HOOD
5009
GUARD
5009C
CUT OFF
IMPORTANT
Disconnect power before installing fixtures. Read instructions before
starting work. This product must be installed in accordance with the
applicable installation code by a person familiar with the construction
and operation of the product and the hazards involved.
Saturna 5009 Series
HOUSING INSTALLATION - CONCRETE BLOCK
1
Remove housing assembly from shipping container.
2
Cut opening in concrete block wall to suit housing size.
J-box should be below unit. Not on top or sides. Se-
cure to wall through (4) holes located in housing. Round
housing trim should extend 1" out from wall.
3
Install supply wiring per applicable code requirements.
4
Install trim adapter to existing trim on housing allowing
required brick thickness extension from wall. Seal trim
adapter to trim at housing with silicone.
5
Install brick face. Mortar between brick and adapter trim
to create flat surface for splay trim to seal against.
www.rebellelighting.com
© 2010 REBELLE All rights reserved.

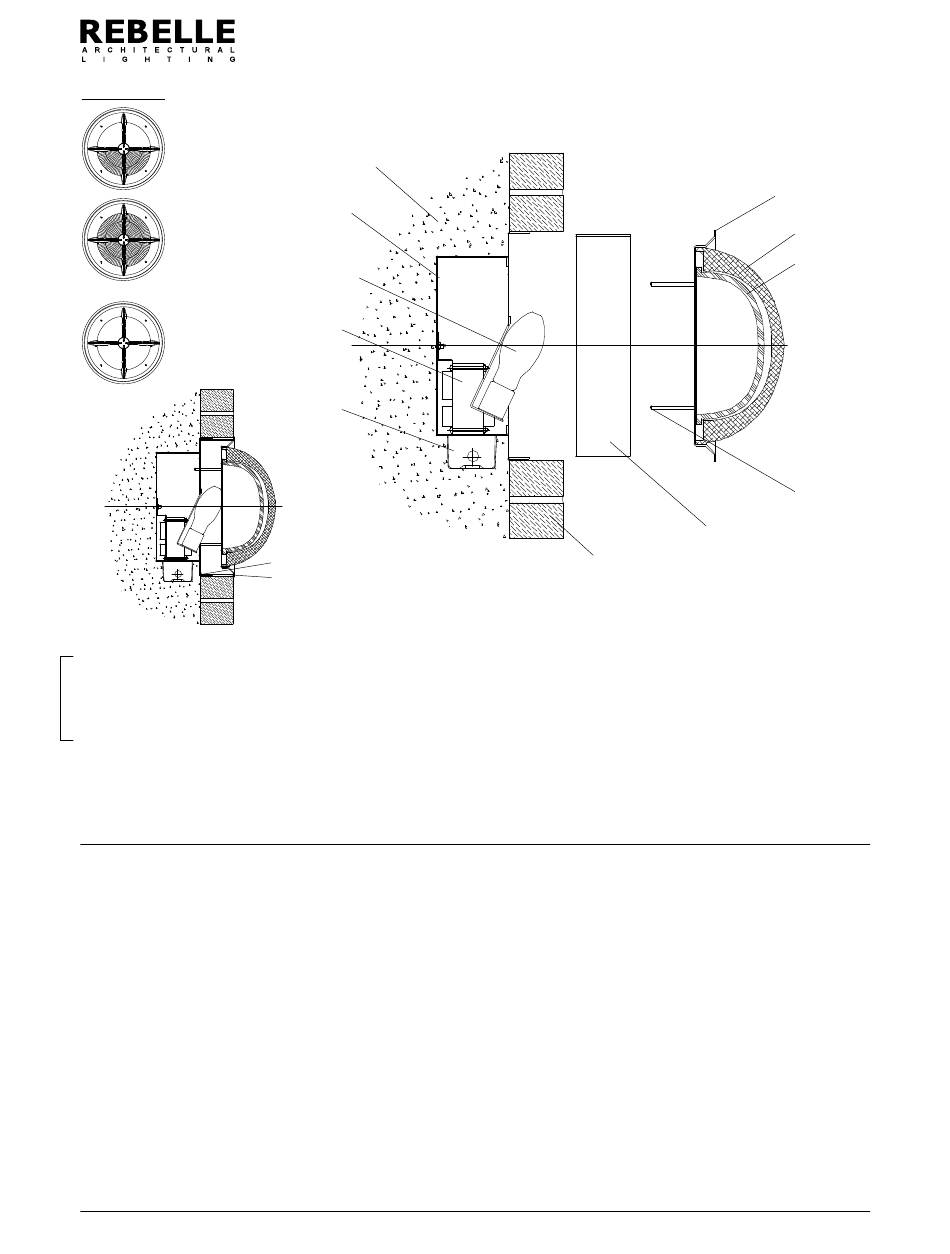

Concrete
block
Housing
Lamp
(by others)
Electrical
tray
J-Box
Silicone seal
Mortar
BRICK FACE
REBELLE ARCHITECTURAL LIGHTING 11475 - 201A Street, Maple Ridge, B.C. Canada V2X 0Y3
P 604.465.5739 F 604.465.9801 E info@rebellelighting.com W rebellelighting.com
Brick
face
ELECTRICAL TRAY AND FACEPLATE INSTALLATION
1
Remove electrical tray assembly from shipping carton.
2
Remove internal j-box cover from housing and pull out supply
wires. Thread electrical white, black and ground leads from
ballast tray through j-box cover and connect to appropriate
supply leads.
3
Push all splices into j-box and re-attach cover plate.
4
Install ballast tray and secure with nuts provided.
5
Remove faceplate assembly from shipping carton. Install splay
trim with screws provided. Silicone seal may be required to
seal between brick face and splay trim.
6
Install electrical tray with screws provided and insert lamp as
required.
7
Install faceplate to splay trim with (4) screws provided.
8
Energize and test as required.
Splay trim
Guard
Glass
Mounting
hardware
Trim
adapter
REV. 12/09/09
