Rebelle CYL-003 7600T LED Series Installation Instructions

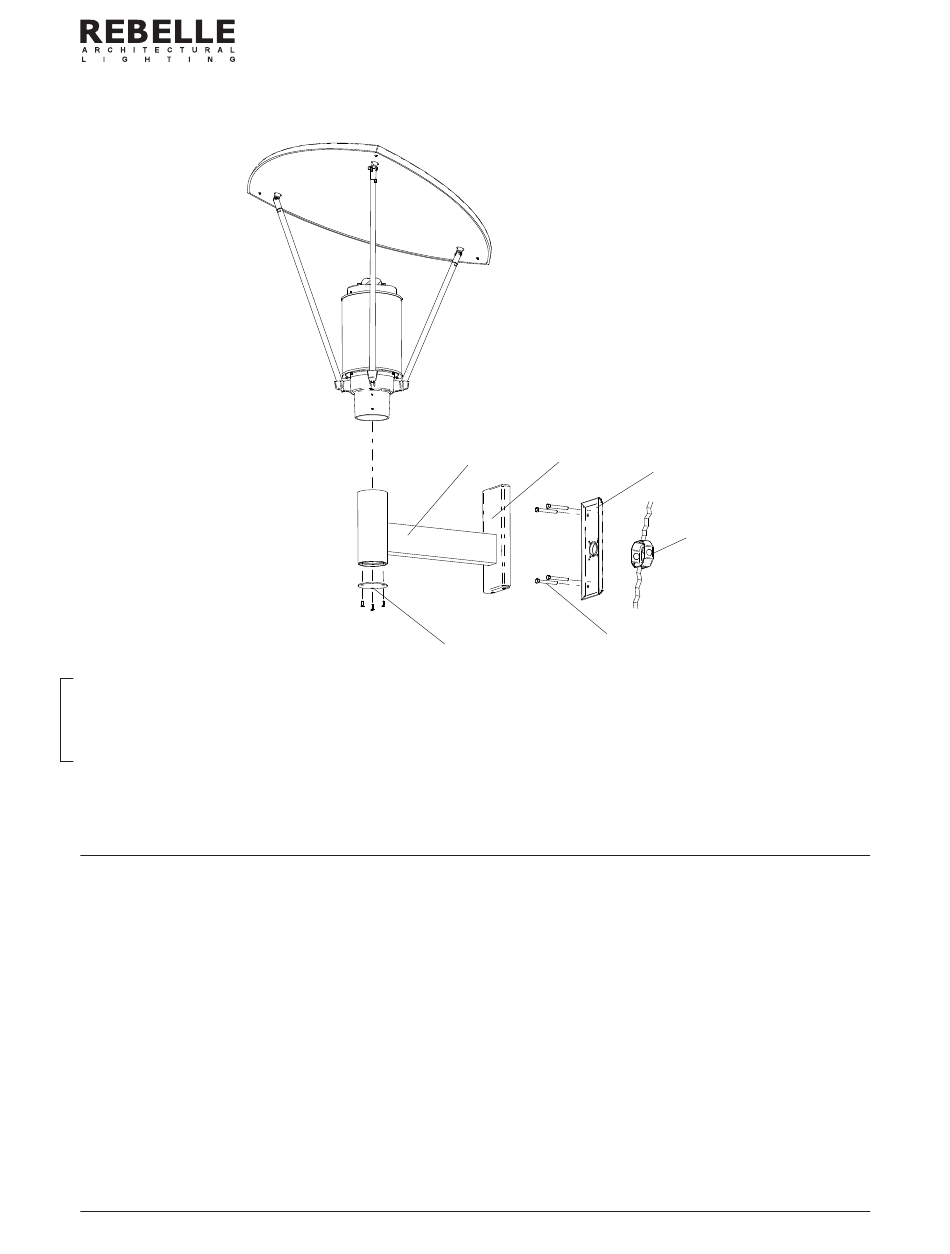

Fixture Assembly
Arm Assembly
IMPORTANT
Disconnect power before installing fi xtures. Read instructions before
starting work. This product must be installed in accordance with the
applicable installation code by a person familiar with the construction
and operation of the product and the hazards involved.
CYL-003 7600T LED Series

ARM INSTALLATION INSTRUCTIONS

1
Remove arm assembly from shipping carton and lay out parts.
2
Position mounting plate over junction box, pull supply leads through access hole in wall plate. Install wall plate, independent of junc-
tion box, with (4) mounting bolts (not supplied). Mounting bolt size and backing to be determined by installer per installation.
3
Attach arm assembly by connecting (3) leads provided (black, white & ground) to supply leads with appoved wire connectors and
push connections into junction box. Hook arm assembly over wall plate and secure with (2) set screws located at bottom of mounting
plate.
4
Remove (3) screws securing wiring access plate and remove access plate. Pull (3) leads (black, white & ground) through bottom of
access plate opening.
5
Feed (3) leads attached to fi xture assembly through arm assembly and out bottom of wiring access hole. Slide fi xture assembly over
arm assembly and attach per fi xture instuctions.
6
Connect (3) sets of leads with approved wire connectors and push connections up into arm assembly. Reinstall wiring access plate.
7
Follow fi xture installation instructions to complete installation (see following page).
8
Energize and test as required.
www.rebellelighting.com
© 2017 REBELLE All rights reserved.
Arm
Wiring access plate
REBELLE ARCHITECTURAL LIGHTING 11475 - 201A Street, Maple Ridge, B.C. Canada V2X 0Y3
P 604.465.5739 F 604.465.9801 E info@rebellelighting.com W rebellelighting.com
Note:
Reflector is to face
away from wall
Mounting plate
Wall plate
Junction box
(by others)
Mounting bolts
(by others)
REV. 11/27/17
