- Page 1 Alde Compact 3030, 3030 Plus 1 zone/2 zone Certified for use in recreational vehicles Operating instructions Alde Compact 3030/3030 Plus © Alde. All Rights Reserved.
- Page 3 Alde Compact 3030 Plus Alde Compact 3030, 3030 Plus, 1 zone, 2 zone Operating instructions Alde Compact 3030/3030 Plus © Alde. All Rights Reserved This material may not be distributed to 3rd parties without approval from Alde International Systems AB...
- Page 4 • Never use LPG to run the system when filling up or when filling a fixed LPG tank. • Never use naked flame when checking for gas leaks. • Always use original parts from Alde. • LPG tanks must only be filled by qualified gas suppliers.
- Page 5 WARNING Hot water High water temperature above 49°C can cause serious scalding, and in extreme cases even death. The heating system can supply water at a temperature above 85°C. • Always use a mixer tap set at a temperature that cannot exceed 48°C for safe operation. •...
-
Page 6: Table Of Contents
6.3 Set the desired temperature 6.4 Hot water 6.5 Energy sources 6.6 Settings menu 7. How your smart Alde Compact 3030/3030 Plus works 8. Care and maintenance 8.1 Replacing of the air cushion 8.2 Emptying water heaters and water pipes 8.3 Glycol fluid... -
Page 7: Intended Use
The system supplies the convectors with heat by circulating a glycol mixture, which is heated up using gas and/or electricity in the boiler. These instructions explain how to use the Alde Compact 3030/3030 Plus heating systems and control panels in recreational vehicles. -
Page 8: Important Information
• Never use LPG to run the system when filling up or when filling a fixed LPG tank. • Never use naked flame when checking for gas leaks. • Always use original parts from Alde. • LPG tanks must only be filled by qualified gas suppliers. -
Page 9: The Glycol Fluid In The Heating System
If the glycol fluid is not replaced at appropriate intervals, there is a risk of frost damage, corrosion, bacterial growth and/or overheating. If Alde Premium Antifreeze is used, the replacement period can be extended to max. 5 years of normal use. -
Page 10: Initial Operation Of The Heating System
Initial operation of the heating system CAUTION Never use the system while under the influence of alcohol, drugs or medicines, and always carefully follow the safety instructions. 4.1. Pre-operation check of the heating system • Check that the glycol mixture is at the right level in the system’s expansion vessel; see Fig. 2. The level should be about one centimetre above the MIN mark in cold systems. -
Page 11: Using The Water Heater
Hot water from the boiler is not intended for drinking or use in food preparation. CAUTION Avoid using the Boost and Autoboost functions in your Alde Compact 3030 Plus when the water heater is empty. The water heater must always be full of water when using Autoboost. -
Page 12: Starting The Heating System For The First Time
2. Select language. 3. Press the Configure button to go to System Configuration. You can always reach this menu by pressing the menu button on the Alde Control Panel and scrolling until the System Configuration option arrives. 4. If you have a dual zone system, go to the second page in System Configuration and select 2-zone mode. - Page 13 Dual zone system • If unsure of the zone’s name, blow on the sensor in the zone and then look on the control panel for a zone whose temperature has changed (for example Bedroom), and then select whether a booster is installed in the zone.
-
Page 14: Review Of Alde Control Panel
Anti-bacteria. The boiler’s automatic bacterial elimination setting is running. High altitude mode. Flashes if high altitude mode is activated. Fig. 9b. Alde AquaClear UV-C*. Shows when the fresh water pump is running and the Status screen, water filter is functioning. -
Page 15: Set The Desired Temperature
When switching from Off to Auto there is a certain additional warm-up water production, period before the Boost function kicks in. Autoboost requires an electrical output Alde Compact 3030 Plus of 3 kW to function. If only 1 or 2 kW are available, gas must also be activated. -
Page 16: Energy Sources
The boiler and Truma AC connected to the Alde system will automatically reduce their consumption when e.g. a toaster or hairdryer is switched on. - Page 17 Underfloor heating*, Underfloor heating. Turn the underfloor heating on or off. Select continuous operation of the underfloor heating by activating “Continuous”. Engine pre-heat*. Heat the engine using the Alde heating system. Start or turn off the function, select the start time and the engine heating duration.
-
Page 18: How Your Smart Alde Compact 3030/3030 Plus Works
How your smart Alde Compact 3030/3030 Plus works Alde Compact 3030 and 3030 Plus are systems used to control the temperature in the vehicle (single- zone system). You can also control the temperature separately in two different zones. A factory- installed dual-zone system is required to control the temperature in two zones. -
Page 19: Care And Maintenance
LPG hoses should be replaced according to the date marking of the hose when they dry out and crack, resulting in possible leakage. For extra safety, we recommend using Alde’s Type 4071 leak tester, installed as closely to the reduction valve as possible. -
Page 20: Glycol Fluid
The glycol mixture must be changed every two years, as properties such as corrosion protection degrade. If Alde Premium Antifreeze is used, the replacement period can be extended to max. 5 years of normal use. 8.3.1 Refill the heating system with Glycol fluid... -
Page 21: Bleeding The Heating System
It is easiest to air the heating system with the vehicle on a sloping surface, or with one end of the vehicle suspended by a jack. Air the heating system on a slope as described for the single-axle caravan above. Alternatively, the heating system can be aerated with a filling pump at a workshop; contact Alde Service Partner. -
Page 22: Error Messages
12 V supply to the boiler. When the supply is reconnected, gas operation must be reactivated in the control panel. The fault may also be due to a defective spark generator and/or burner; contact Alde Service Partner if the fault persists. -
Page 23: If A Fault Persists
If a fault persists even after disconnecting and reconnecting 12 V to the boiler, please also disconnect 230 V and then 12 V again. Reconnect 230 V and 12 V. If this doesn’t help, contact your dealer or Alde Service Partner. -
Page 24: Troubleshooting
Try restarting the boiler. • If DuoControl/MonoControl with Crash sensor are installed, check that they have not tripped. If none of the above help, contact Alde Service Partner. Electric heater will not work satisfactorily WARNING Fire/explosion risk A 230 V power supply carries a risk of electrical accidents. -
Page 25: Service Menu & Resetting
Automatic climate control is not working satisfactorily • There are two heating zones in a dual-zone system, but only one zone for cooling. In this case, set the AC to follow the thermostat in one of the zones. When the AC-controlled zone indicates a need for cooling, heating will be switched off in the other zone. -
Page 26: Technical Description Of The Heating System

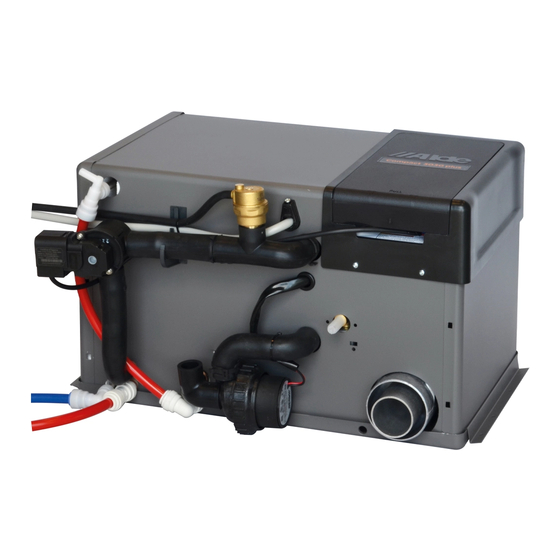

Technical description of the heating system The Alde Compact 3030/3030 Plus boiler is designed to provide you with both heating and hot water. The heating system contains both a gas burner and electrical cartridges and you can use the system with either LPG, electricity or both. -
Page 27: Operation On Lpg
12.2 Operation on electricity All Alde Compact 3030/3030 Plus heating systems are fitted with 230 V heating elements (one 1 kW and one 2 kW) with a total 3 kW output. When electric operation is selected in the Control Panel, the electrical cartridges are used to heat the heating system. -
Page 28: Warranty
"original owner") an exclusive warranty, under the above terms and conditions, and during the warranty period (as defined below) that the Alde Compact 3030/3030 Plus boiler (the "product") complies with the company’s published technical data and is free from defects in materials and manufacture in the course of normal and intended use. - Page 29 9. In the event of a warranty claim, the original owner shall immediately inform the company in writing of any defects in the product . 10. Notices and requests must be addressed to: Alde International Systems AB Wrangels Allé 90 • 291 75 Färlöv • Sweden Tel: +46 (0)44 712 70 info@alde.se •...
-
Page 30: Health Declaration
Health Declaration... -
Page 32: Declaration Of Conformity
Declaration of Conformity... -
Page 34: Software Licence
Software License --------- License 1 --------- Copyright © 2015 Odzhan. All Rights Reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Page 35 --------- License 3 --------- Copyright© 2017, STMicroelectronics Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Page 37 Alde International Systems AB Wrangels Allé 90 • 291 75 Färlöv • Sweden Tel +46 (0)44 712 70 www.alde.se • info@alde.se...
