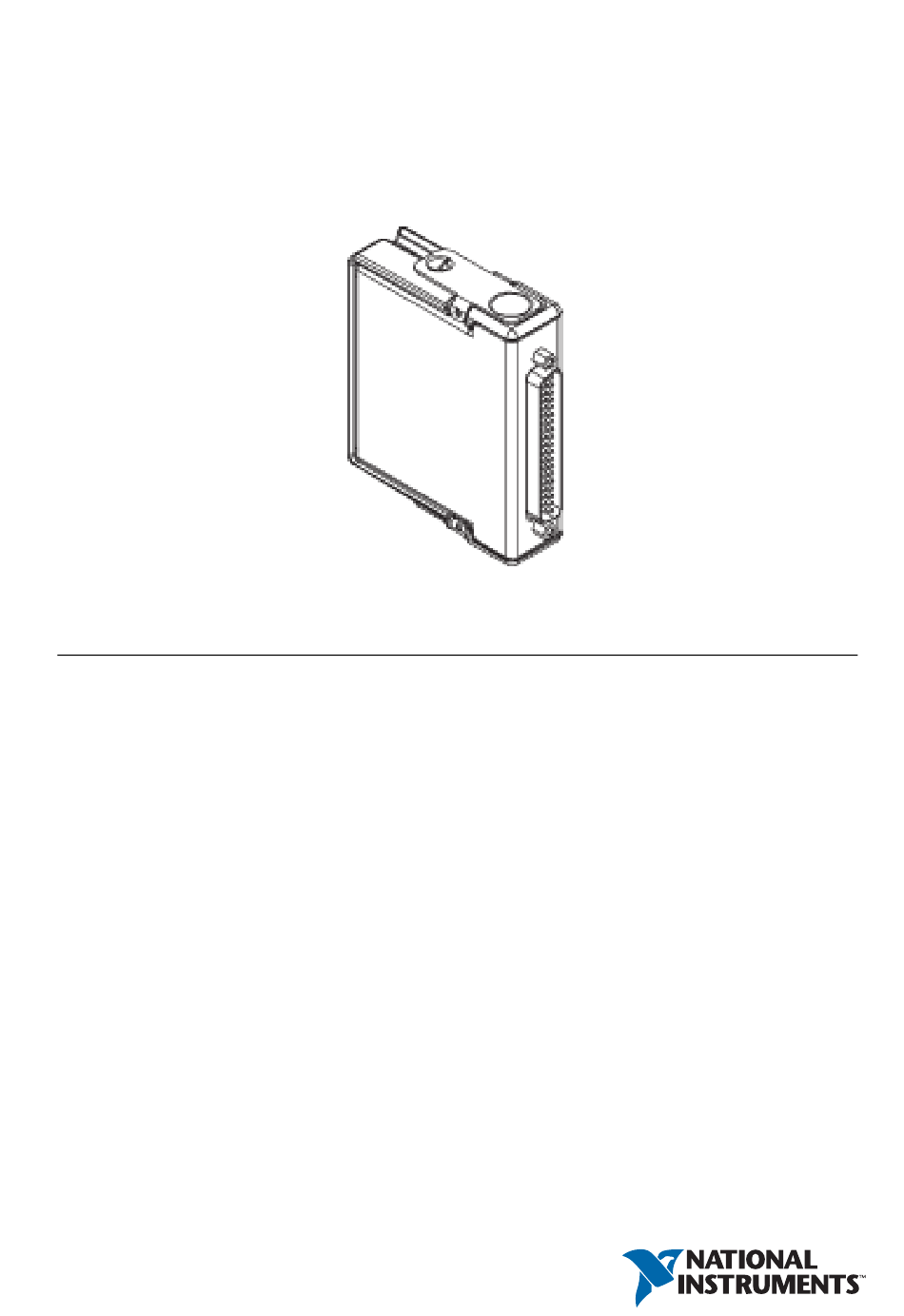

USER MANUAL
NI 9753
NI Powertrain Controls Differential Digital I/O Module
Contents
Introduction .............................................................................................................................. 2
Pinout........................................................................................................................................ 2
Hardware .................................................................................................................................. 3
Powering the Module................................................................................................................ 3
Platform Compatibility ............................................................................................................. 4
Inputs and Outputs.................................................................................................................... 5
Compliance and Certifications ................................................................................................. 5
Output Characteristics .............................................................................................................. 7
Input Characteristics ................................................................................................................. 7
Physical Specifications and Characteristics ............................................................................. 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments 9753
Summary of Contents for National Instruments 9753
- Page 1 USER MANUAL NI 9753 NI Powertrain Controls Differential Digital I/O Module Contents Introduction ..........................2 Pinout............................2 Hardware ..........................3 Powering the Module........................ 3 Platform Compatibility ......................4 Inputs and Outputs........................5 Compliance and Certifications ....................5 Output Characteristics ......................7 Input Characteristics .........................
- Page 2 Position Tracking (EPT) VI is also required.The NI 9753 fuel and spark VIs provide control similar to that of NI’s fuel and spark driver module kits. The NI 9753 outputs do not drive current sufficient for driving fuel injectors or ignition coils. The outputs can be used for commands to external custom driver circuits or smart actuators with built-in driver circuits.
- Page 3 (18). Typical power sources will be from automotive 12 V or 24 V battery systems. The NI 9753 can accept power from a range of 6 V to 32 V. The maximum power to the NI 9753 is limited to 5 W.
- Page 4 • Maintain an ambient system operating temperature of 0 °C to 45 °C. Typical specifications of National Instruments modules might not apply when Note used in a system with NI Powertrain Control modules. National Instruments guarantees warranted specifications for all National...
- Page 5 LabVIEW FPGA VI. Overvoltage Protection The RS485 input/output pins of the NI 9753 can be shorted together, shorted to ground, or shorted to -7 V to +12 V without damaging the channels. The RS485 input/output pins may be subjected to ±50 V, 15 µs wide, 1% duty cycle pulses via a minimum of 100 Ω...
- Page 6 At the end of the product life cycle, all products must be sent to EU Customers a WEEE recycling center. For more information about WEEE recycling centers, National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/...
- Page 7 If you need to clean the module, wipe it with a dry towel. Safety Guidelines Do not operate the NI 9753 in a manner not specified in these operating Caution instructions. Product misuse can result in a hazard. You can compromise the safety protection built into the product if the product is damaged in any way.
- Page 8 NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. © 2013 National Instruments. All rights reserved.
