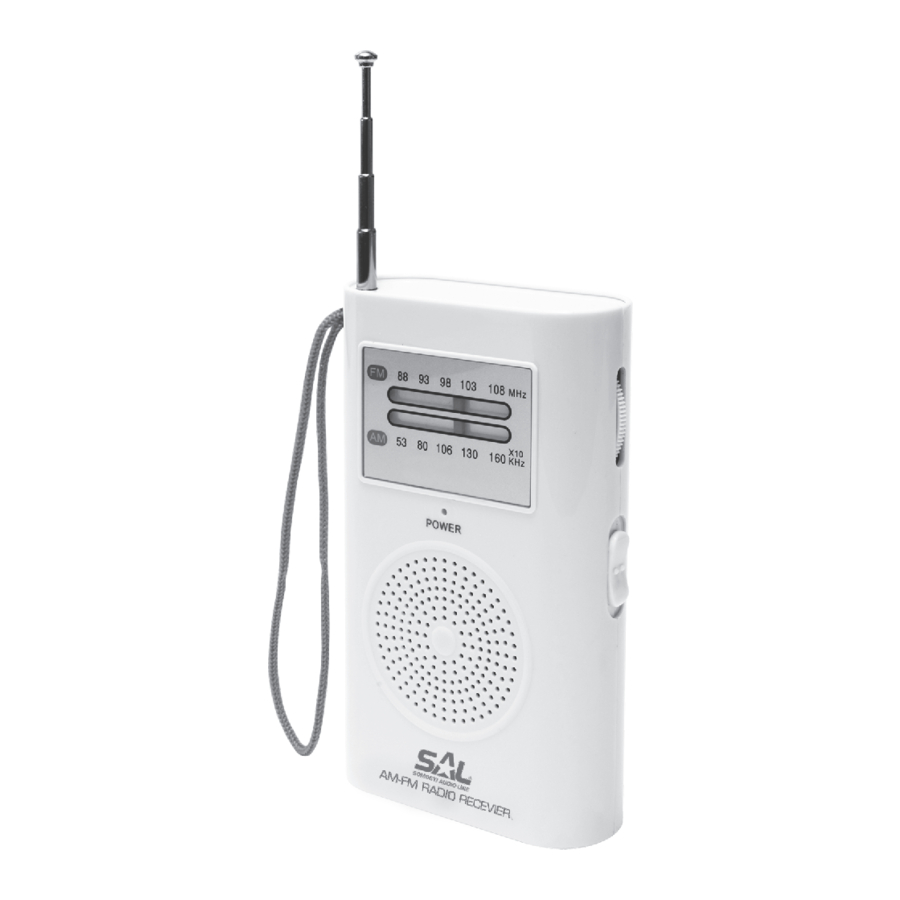

Somogyi Elektronic SAL RPC 2B - Pocket Radio Manual

INTRODUCTION

Before using the product for the first time, please read the instructions for use below and retain them for later reference. The original instructions were written in the Hungarian language. This appliance may only be used by persons with impaired physical, sensory or mental capabilities, or lacking in experience or knowledge, as well as children from the age of 8, if they are under supervision or have been given instruction concerning use of the appliance by a person responsible for their safety and they have understood the hazards associated with use. Children should not be allowed to play with the unit. Children may only clean or perform user maintenance on the appliance under supervision.

What's in the Box

• AM-FM radio with 2 bands
• LED mode indicator
• Ø3,5mm headphone socket
• Power supply: 2xAA (1,5V) battery, not included

STARTUP

Place into the battery chamber according to the polarity 2 pieces of AA sized (1,5 V) alkaline battery.

• Immediately remove the depleted batteries!
• Do not use batteries of different condition, or from different manufacturers! Replacing the battery can only be done by an adult!
• If the liquid has leaked from the battery, wear protective gloves and with a dry cloth clean the battery chamber! Do not open the batteries throw them into fire, or short circuit them! Do not charge non rechargeable batteries! Explosion hazard! Do not place secondary batteries instead of batteries into the appliance, as their voltage and performance is significantly lower!

USING THE RADIO

Turn the appliance on by moving the OFF/BAND (8.) slide switch upwards. Choose the desired FM-AM frequency band (8.) and search for the radio station with the TUNING (6.) rotatory switch.
Fully pull out the antenna.

• Radio reception is highly dependent on current signal conditions.
• Handle the antenna carefully, so it does not break!
• When listening to an AM band, and inbuilt antenna is operational. Do not pull out the antenna, instead rotate the appliance to a position with better reception.
• Electronic appliances in the area may interfere with the reception.

USING THE HEADPHONE

Mono and stereo earphone, and headphone can be connected to the Ø3,5mm (4.) socket. The speaker now shuts down. Set the desired volume with the VOLUME (2.) controller. The outgoing audio signal is mono.

CLEANING

Use a soft, dry cloth and brush for regular cleaning. Do not use cleaners! Do not let liquids into the appliance or its sockets!

WARNINGS

• Please before use read this instruction manual carefully, and place it in an easily accessible place for future reference!
• Protect from dust, humidity, liquids, heat, moisture, frost, and shock, as well as from direct heat, or sunshine!
• Protect the appliance from splashing water, and do not place objects filled with liquid e.g. a glass on the appliance!
• Open flame sources, like a lit candle, cannot be placed on the appliance!
• If not in use for longer periods, remove the batteries!
• The speakers contain magnets, so do not place objects that are susceptible to it near them. (e.g. credit card, cassette tape, compass...)
• Due to continuous development, the technical data, and design can change without prior notice.
• We do not take responsibility for any possible printing errors and are sorry if any occurs.

TECHNICAL PARAMETERS

FM band	88,0-108,0 MHz
AM band	530-1600 kHz
Power output	0,25 Watt max.
S/N	≥ 52 dB
THD	< 10%
Speaker	50 mm, 4 Ohm
Frequency range	300 - 18.000 Hz
Power supply	3 V / 2 x AA (1,5V)
Dimensions / Weight	70x115x27 mm / nt.80 g
