- Page 1 Shakmat Banshee Reach 8HP Eurorack Module Built & designed in E.U. www.shakmat.com...

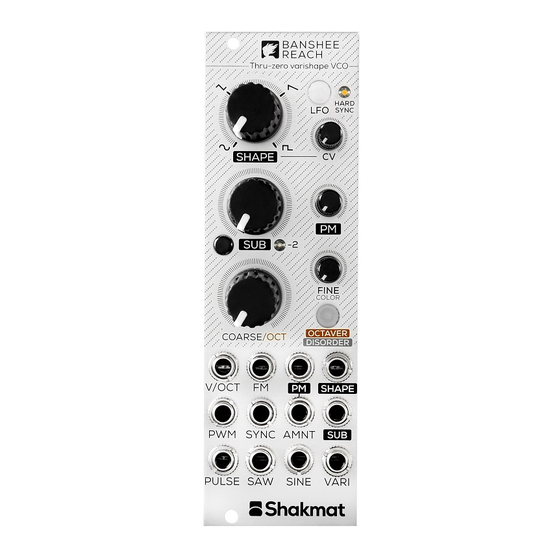

- Page 3 Banshee Reach performance oriented. LFO mode, hard or soft sync, digital noise modulation, and PWM complete this rich feature list. Compact and powerful, the Banshee Reach is a VCO suited for west, east coast synthesis, and much more! Shape potentiometer...
-
Page 4: Installation
Make sure the red stripe on the cable matches the -12V side of the Banshee Reach power header. Tuning The Banshee Reach has both coarse and fine manual tuning controls, like in almost all VCOs. The Coarse potentiometer provides a continuous variation of the output signal frequency... - Page 5 Besides the traditional Sine [11], Pulse and Saw outputs, [10] the Banshee Reach has a Vari output [12], which is a continuously variable waveshape crossfaded with a square sub oscillator. The Shape potentiometer allows you to morph continuously between sine, triangle, saw, and square (or a pulse thanks to the jumper on the back of the module).
-
Page 6: Lfo Mode
LFO mode Banshee Reach can work as an LFO by pressing the LFO button [B], which will show the LFO's amplitude and polarity: green for positive and red for negative voltages. Sync The Sync input can be set to either soft or hard sync modes. -
Page 7: Pulse Width Modulation
1%, while positive voltages can reach up to 99% width. The Banshee Reach has a jumper on its back which allows to choose between a square or a pulse waveforms for the Vari output. - Page 8 Disorder Thanks to the Disorder feature, the Banshee Reach can be turned into a peculiar noise source. A digital control generates fast random signals modulating the analog core. Each output sounds different, with the Varishape output and the Shape controlling the timber...
- Page 9 Current state storing At anytime, store the module's state by pressing and holding the Sub button for two seconds. All LEDs will blink for a second to confirm the storing process. This operation stores the following parameter for boot-up: • Sync mode •...
-
Page 10: Specifications
92 mA @ +12v 90 Sec. - 11 Hz 52 mA @ -12v (goes down to 1100 sec with CV input) V/Oct input -8v to +8v Amount CV input 0 to +5v Other CV inputs -5 to +5v Outputs -5 to +5v www.shakmat.com...
